Cross-subnet portal authentication across VPNs

Network requirements

As shown in Figure 111, Router A, as the PE device connecting the user side, needs to provide

cross-subnet portal authentication for hosts in VPN 1. The RADIUS server/portal server is in VPN 3.

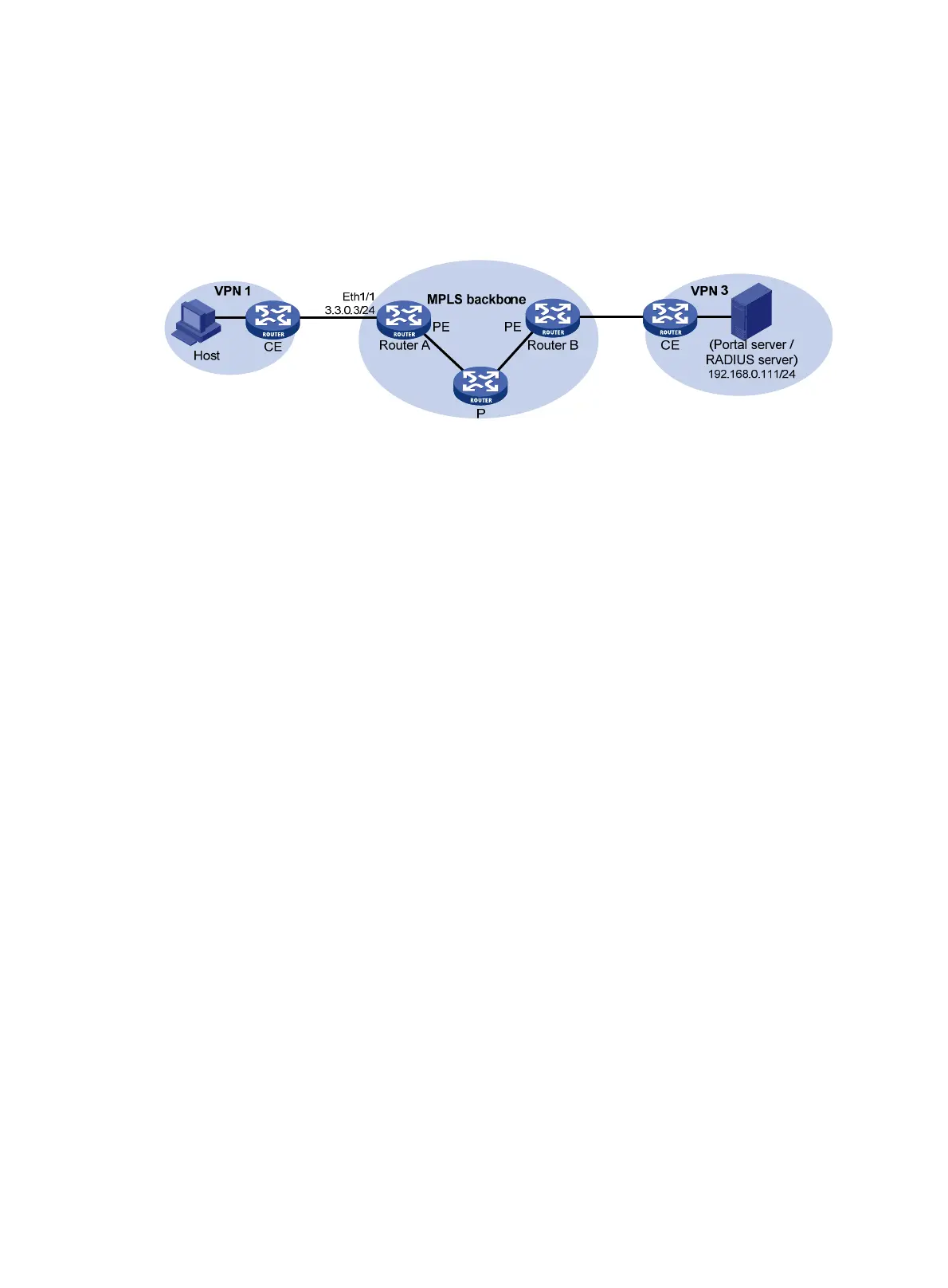

Figure 111 Network diagram

Configuration prerequisites

• Before enabling portal authentication, be sure to configure the MPLS L3VPN capabilities

correctly and specify VPN targets for VPN 1 and VPN 3 so that VPN 1 and VPN 3 can

communicate with each other. This example gives only the access authentication configuration

on the user-side PE. For information about MPLS L3VPN, see HPE FlexNetwork MSR Router

Series Comware 5 MPLS Configuration Guide.

• Configure the RADIUS server correctly to provide normal authentication/accounting functions

for users.

Configuration procedure

1. Configure a RADIUS scheme:

# Create a RADIUS scheme named rs1 and enter its view.

<RouterA> system-view

[RouterA] radius scheme rs1

# Configure the VPN instance to which the RADIUS scheme belongs as vpn3.

[RouterA-radius-rs1] vpn-instance vpn3

# Set the server type for the RADIUS scheme. When using the CAMS or IMC server, set the

server type to extended.

[RouterA-radius-rs1] server-type extended

# Specify the primary authentication server and primary accounting server, and configure the

keys for communication with the servers.

[RouterA-radius-rs1] primary authentication 192.168.0.111

[RouterA-radius-rs1] primary accounting 192.168.0.111

[RouterA-radius-rs1] key accounting simple radius

[RouterA-radius-rs1] key authentication simple radius

# Configure the device to not carry the ISP domain name in the username sent to the RADIUS

server.

[RouterA-radius-rs1] user-name-format without-domain

# Specify the source IP address for RADIUS packets to be sent as 3.3.0.3. This address must

be the same as that of the access device specified on the server.

[RouterA-radius-rs1] nas-ip 3.3.0.3

[RouterA-radius-rs1] quit

2. Configure an authentication domain:
