Portal configuration examples
Configuring direct portal authentication
Network requirements
As shown in Figure 94, the host is assigned with a public network IP address either manually or
through DHCP.
Configure the router to perform direct portal authentication for users on the host. Before a user
passes portal authentication, the user can access only the portal server. After passing portal
authentication, the user can access Internet resources.
Use a RADIUS server as the authentication, authorization, and accounting server.

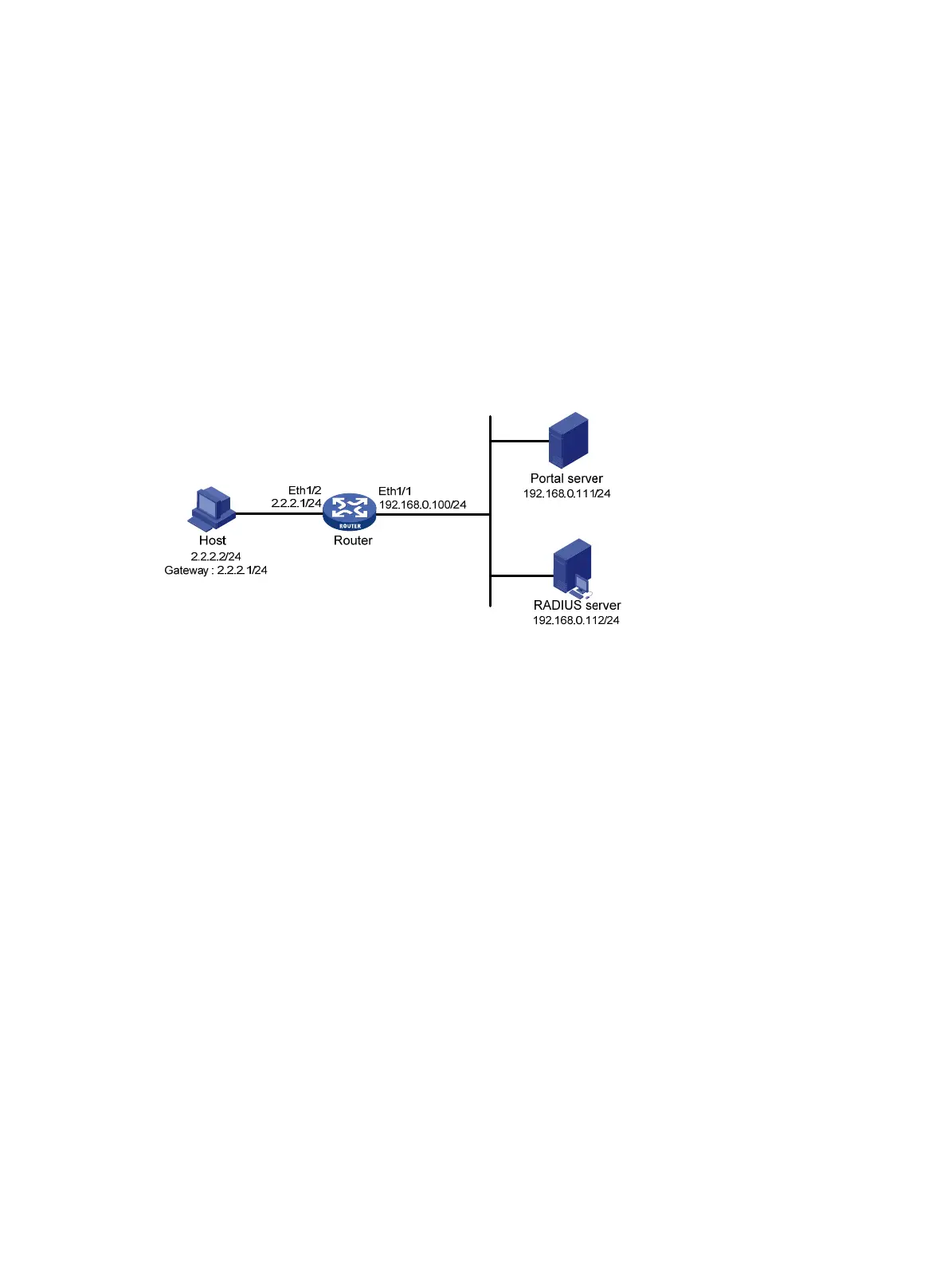

Figure 94 Network diagram
Configuration prerequisites
Configure IP addresses for the host, router, and servers as shown in Figure 94 and make sure that
they can reach each other.
Configure the RADIUS server correctly to provide authentication and accounting functions for users.
Configuring the portal server
This example assumes that the portal server runs on IMC PLAT 5.1 SP1 (E0202P05) and IMC UAM
5.1 (E0301).
1. Configure the portal server:
a. Log in to IMC and select the Service tab.
b. Select User Access Manager > Portal Service Management > Server from the
navigation tree to enter the portal server configuration page, as shown in Figure 95.
c. Config
ure the portal server parameters as needed. This example uses the default settings.
d. Click OK.
