411

0001-0203-0406 192.168.0.1 N/A Eth1/2 Static

N/A 192.168.0.2 N/A Eth1/1 Static

Dynamic IPv4 source guard using DHCP

snooping configuration example

Network requirements

As shown in Figure 140, the device connects to the host (client) and the DHCP server through ports

Ethernet 1/1 and Ethernet 1/2 respectively. The host obtains an IP address from the DHCP server.

Enable DHCP snooping on the device to record the DHCP snooping entry of the host. Enable the

IPv4 source guard function on the device's port Ethernet 1/1 to filter packets based on the DHCP

snooping entry, allowing only packets from clients that obtain IP addresses through the DHCP server

to pass.

For information about DHCP server configuration, see HPE FlexNetwork MSR Router Series

Comware 5 Layer 3—IP Services Configuration Guide.

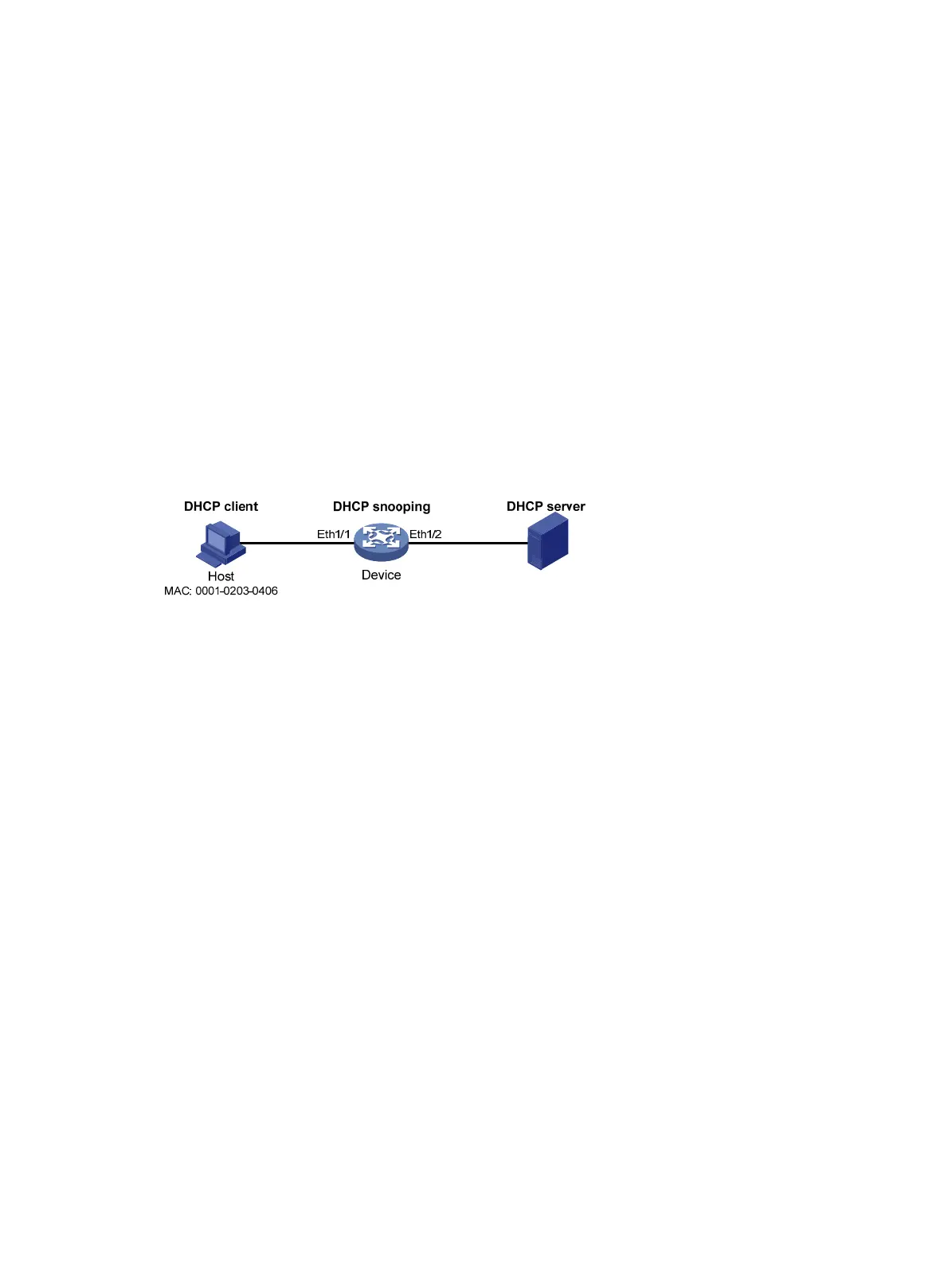

Figure 140 Network diagram

Configuration procedure

1. Configure DHCP snooping:

# Enable DHCP snooping.

<Device> system-view

[Device] dhcp-snooping

# Configure port Ethernet 1/2, which is connected to the DHCP server, as a trusted port.

[Device] interface ethernet1/2

[Device-Ethernet1/2] dhcp-snooping trust

[Device-Ethernet1/2] quit

2. Enable IPv4 source guard on port Ethernet 1/1 to filter packets based on both the source IP

address and MAC address.

[Device] interface ethernet1/1

[Device-Ethernet1/1] ip verify source ip-address mac-address

[Device-Ethernet1/1] quit

Verifying the configuration

# Display the IPv4 source guard binding entries generated on port Ethernet 1/1.

[Device] display ip source binding

Total entries found: 1

MAC Address IP Address VLAN Interface Type

0001-0203-0406 192.168.0.1 1 Eth1/1 DHCP-SNP

# Display DHCP snooping entries to see whether they are consistent with the dynamic entries

generated on Ethernet 1/1.

[Device] display dhcp-snooping

DHCP snooping is enabled.
