10. The portal server sends an authentication reply acknowledgment to the access device.
The remaining steps are for extended portal authentication. For more information about the steps,
see the portal authentication process with CHAP/PAP authentication.
Portal authentication across VPNs
Use portal authentication across MPLS VPNs in cases where branches belong to different VPNs that
are isolated from each other, and all portal users in the branches need to be authenticated by the
server at the headquarters. As shown in Figure 93, the PE conn
ecting the authentication clients
serves as the NAS. The NAS is configured with portal authentication and AAA authentication, both of
which support authentication across VPNs. The NAS can transmit a client's portal authentication
packets in a VPN transparently through the MPLS backbone to the servers in another VPN. This
feature implements centralized client authentication across different VPNs while ensuring the
separation of packets of the different VPNs.
This feature is not applicable to VPNs with overlapping address spaces.

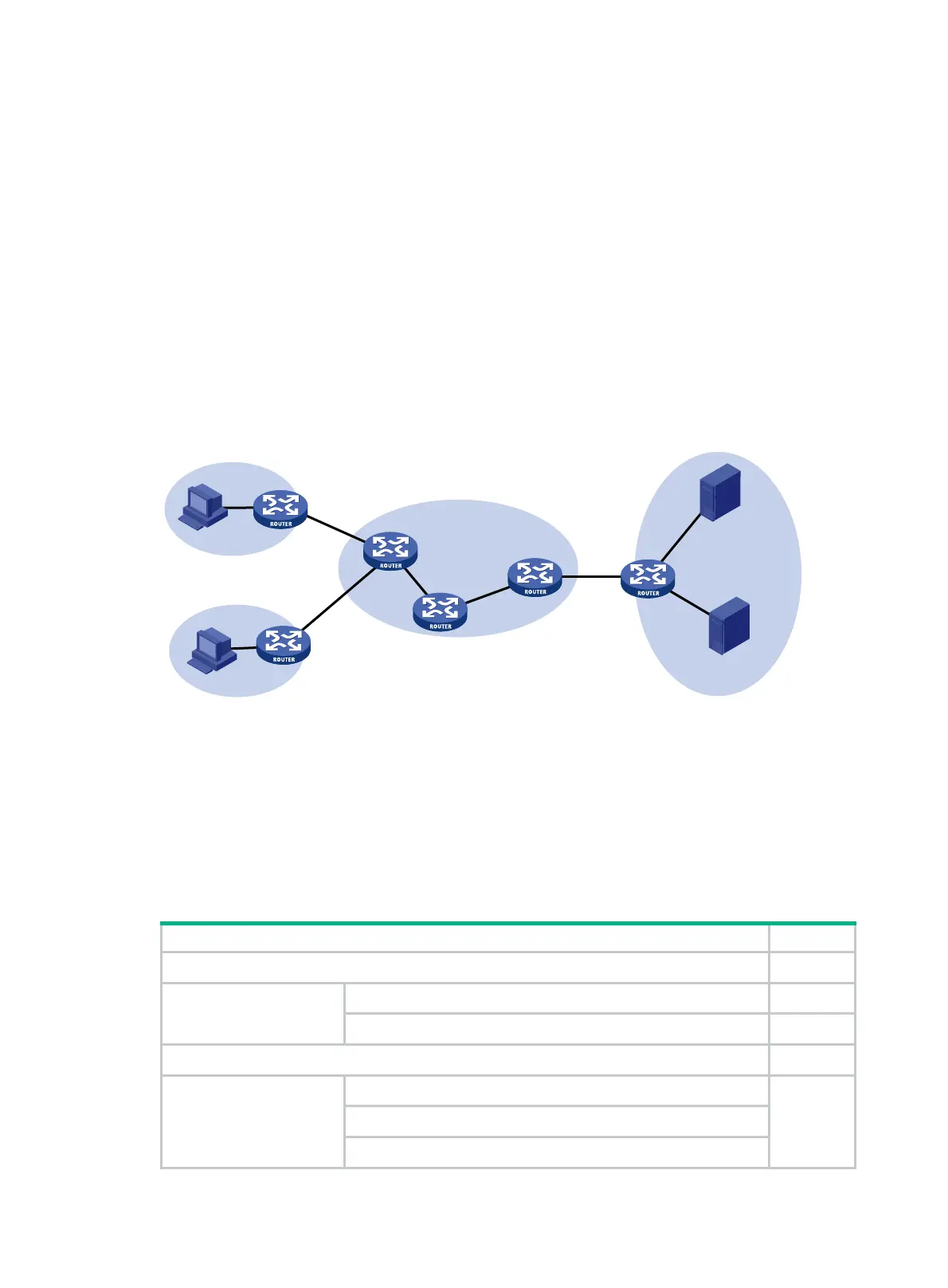

Figure 93 Network diagram for portal authentication across VPNs
Portal authentication configured on MCE devices can also support authentication across VPNs. For
information about MCE, see HPE FlexNetwork MSR Router Series Comware 5 MPLS Configuration
Guide.
For information about AAA implementation across VPNs, see "Configuring AAA."
Portal configuration task list
To configure Layer 2 portal authentication:
Task Remarks
Specifying the local portal server for Layer 2 portal authentication
Required.
Configuring the local
portal server
Customizing authentication pages
Optional.
Configuring the local portal server
Required.
Enabling Layer 2 portal authentication
Required.
Controlling access of
portal users
Configuring a portal-free rule
Optional.
Setting the maximum number of online portal users
Specifying an authentication domain for portal users
P
MPLS backbone
PE
PE
CE
CE
CE
VPN 1
VPN 2
VPN 3
AAA
server
Portal server
Host
Host
NAS
