316
Status: Portal running
Portal server: newpt
Portal backup-group: None
Authentication type: Direct
Authentication domain:
Authentication network:
The user can initiate portal authentication by using the HPE iNode client or by accessing a Web page.
All the initiated Web requests are redirected to the portal authentication page
http://192.168.0.111:8080/portal. Before passing portal authentication, the user can access only the
authentication page. After passing portal authentication, the user can access Internet resources.
After the user passes the portal authentication, you can use the following command to view the portal
user information on the router.
[Router] display portal user interface ethernet 1/2
Index:19
State:ONLINE
SubState:NONE
ACL:NONE
Work-mode:stand-alone
MAC IP Vlan Interface
---------------------------------------------------------------------
0015-e9a6-7cfe 2.2.2.2 0 Ethernet1/2
On interface Ethernet1/2:total 1 user(s) matched, 1 listed.
Configuring re-DHCP portal authentication
Network requirements
As shown in Figure 100, the host obtains an IP address from the DHCP server.
Configure the router to perform re-DHCP portal authentication for users on the host. Before a user
passes portal authentication, the DHCP server assigns a private IP address to the host. After the
user passes portal authentication, the DHCP server assigns a public IP address to the host and then
the user can access Internet resources.
A RADIUS server serves as the authentication/accounting server.

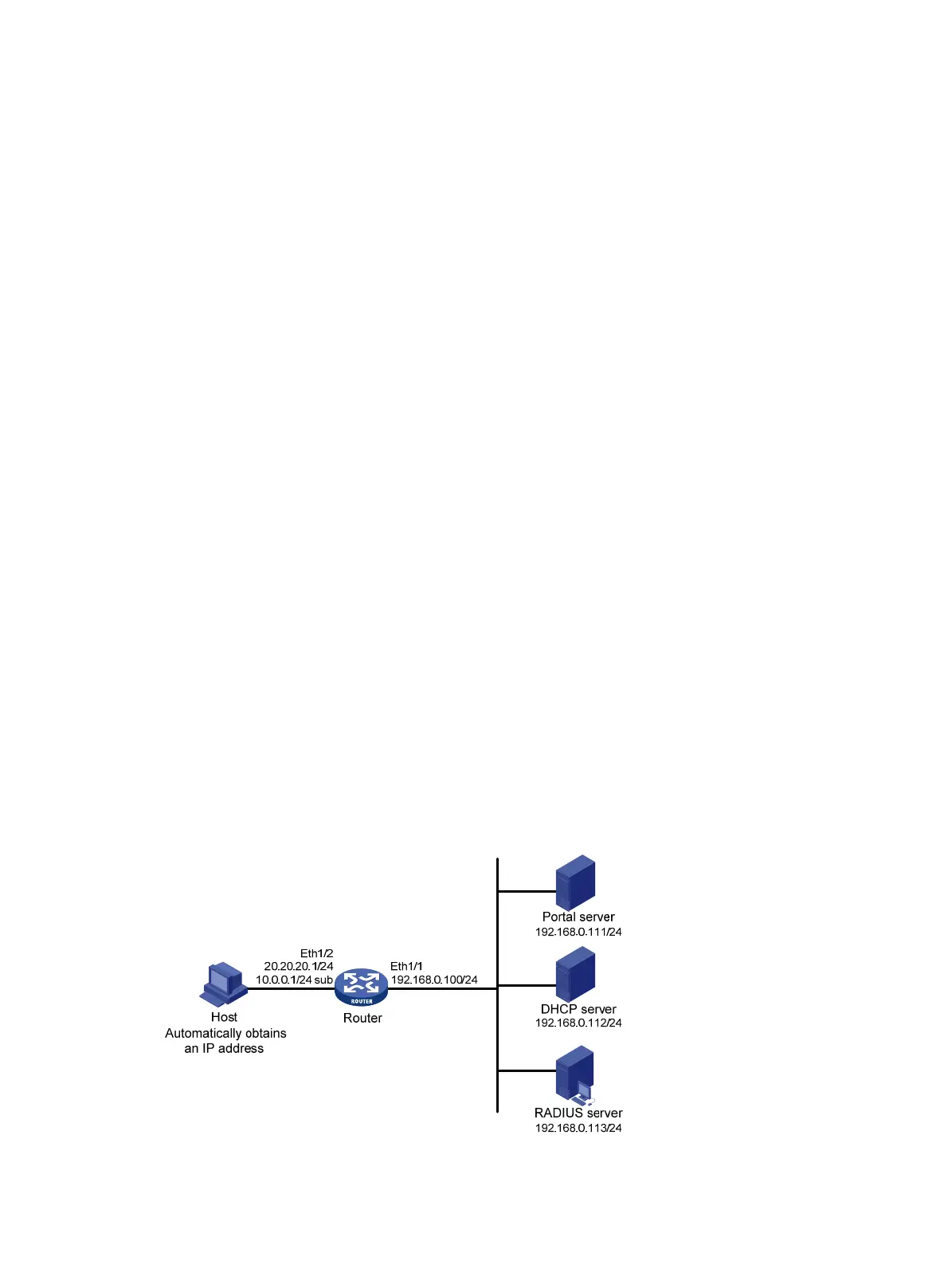

Figure 100 Network diagram
