HPE FlexNetwork MSR Series Comware 5 Security Configuration Guide

371

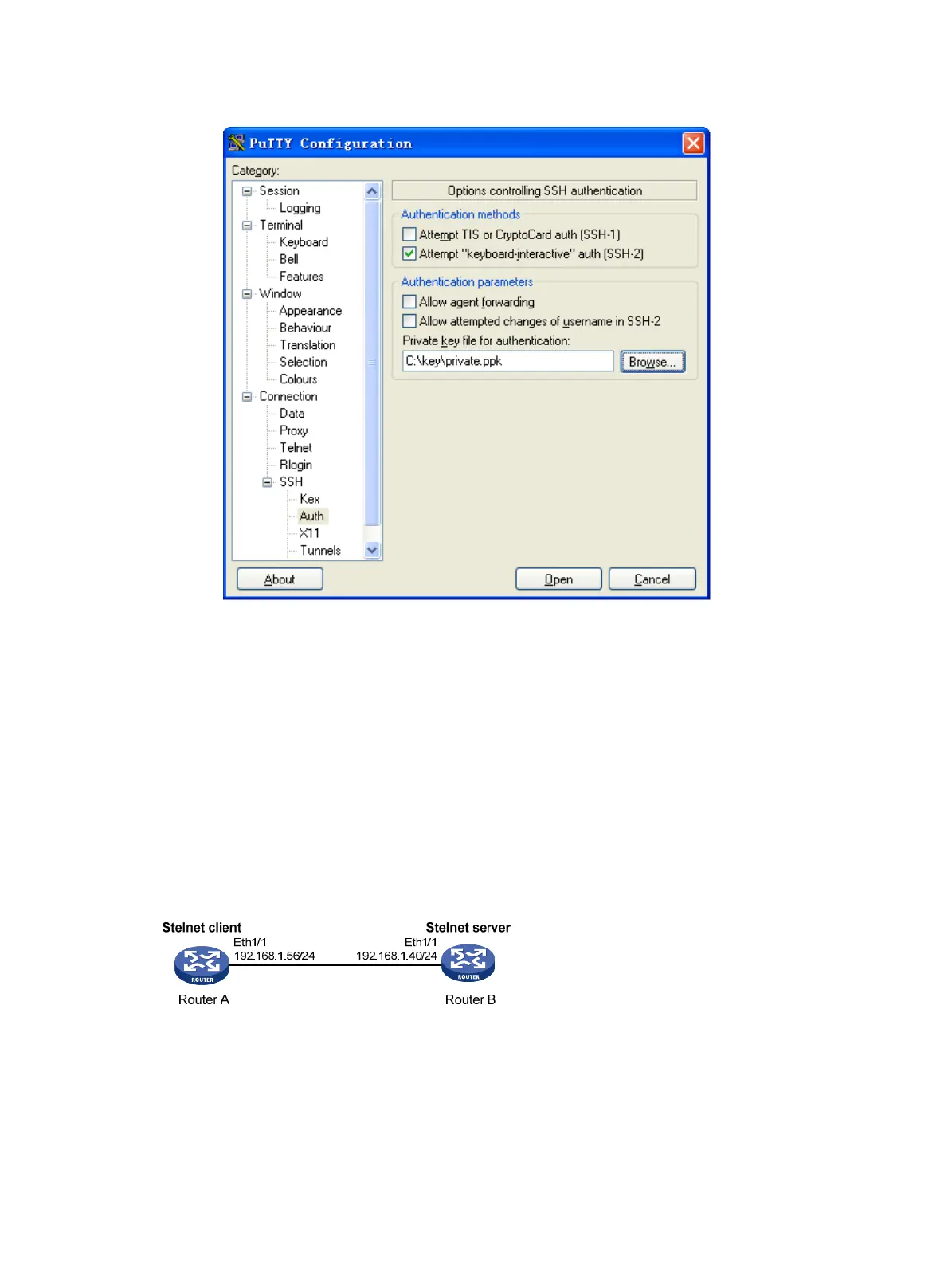

Figure 124 Specifying the private key file
e. Click Open to connect to the server.
If the connection is successfully established, the system asks you to enter the username.
After entering the username (client002), you can enter the CLI of the server.
Password authentication enabled Stelnet client configuration
example
Network requirements
As shown in Figure 125, you can log in to Router B through the Stelnet client running on Router A.
Router B acts as the Stelnet server and uses password authentication. The username and password
of the client are saved on Router B.
Figure 125 Network diagram
Configuration procedure
1. Configure the Stelnet server:
# Generate the RSA key pairs.
<RouterB> system-view
[RouterB] public-key local create rsa
The range of public key size is (512 ~ 2048).
