61
[Router-radius-rad] key authentication expert
# Specify the service type for the RADIUS server, which must be extended when the server runs on
CAMS or IMC.
[Router-radius-rad] server-type extended
# Include the domain names in usernames sent to the RADIUS server.
[Router-radius-rad] user-name-format with-domain
[Router-radius-rad] quit
# Configure the AAA methods for domain bbb. Because RADIUS authorization information is sent to
the RADIUS client in the authentication response messages, be sure to reference the same scheme
for user authentication and authorization.
[Router] domain bbb
[Router-isp-bbb] authentication login radius-scheme rad
[Router-isp-bbb] authorization login radius-scheme rad
[Router-isp-bbb] quit
Verifying the configuration
After the configuration is complete, the user can Telnet to the router, use the configured account to
enter the user interface of the router, and access all the commands of level 0 to level 3.
# Use the display connection command to view the connection information on the router.
[Router] display connection
Index=1 ,Username=hello@bbb
IP=192.168.1.58
IPv6=N/A
Total 1 connection(s) matched.
Local authentication/authorization for Telnet/FTP users
The configuration of local authentication and authorization for FTP users is the same as that for
Telnet users. This example describes the configuration of Telnet users.
Network requirements
As shown in Figure 18, configure the router to perform local authentication and authorization for
Telnet users.

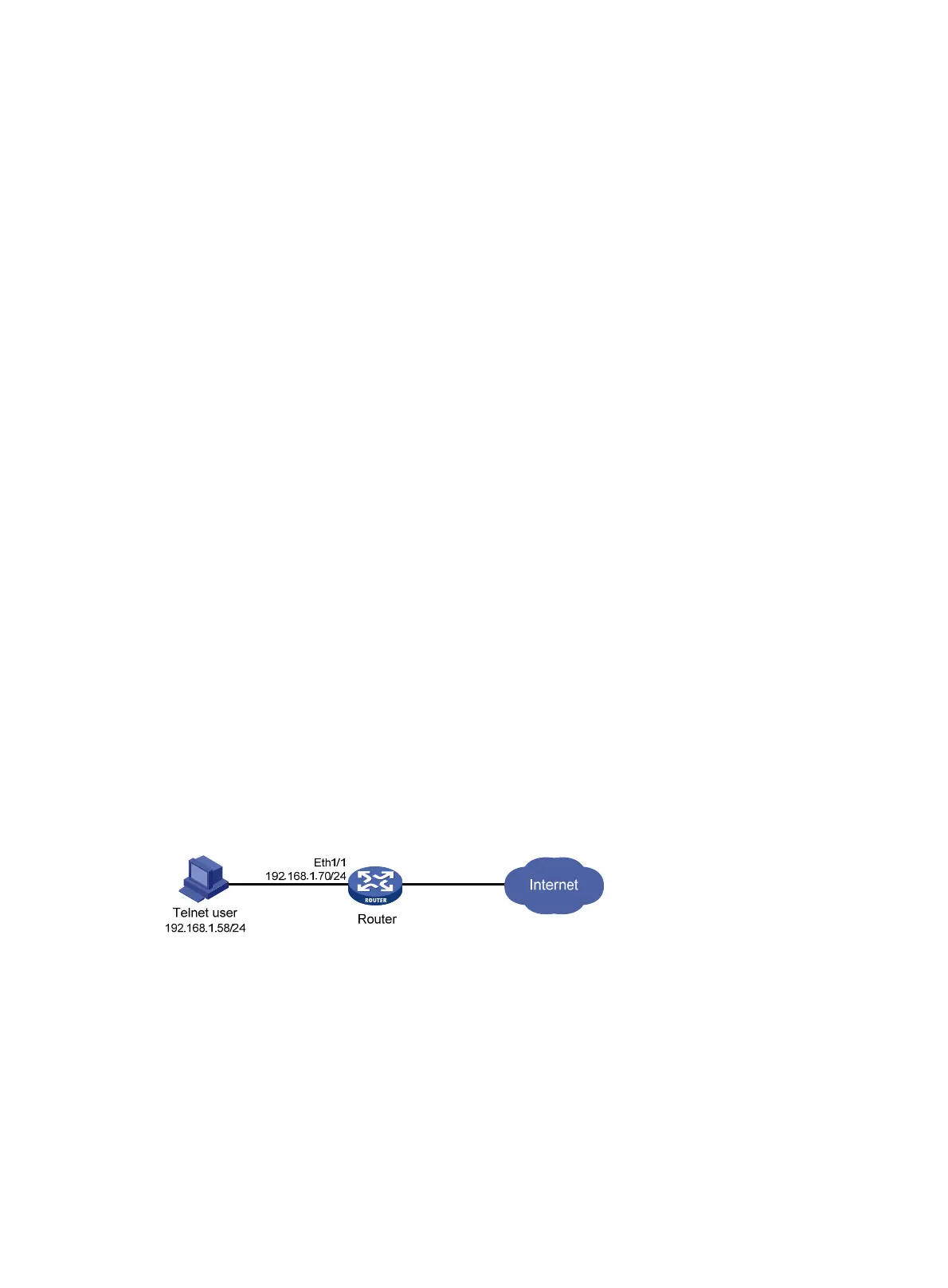

Figure 18 Network diagram
Configuration procedure
# Assign an IP address to interface Ethernet 1/1, the Telnet user access interface.
<Router> system-view
[Router] interface ethernet 1/1
[Router-Ethernet1/1] ip address 192.168.1.70 255.255.255.0
[Router-Ethernet1/1] quit
# Enable the Telnet server on the device.
[Router] telnet server enable
# Configure the router to use AAA for Telnet users.
