313

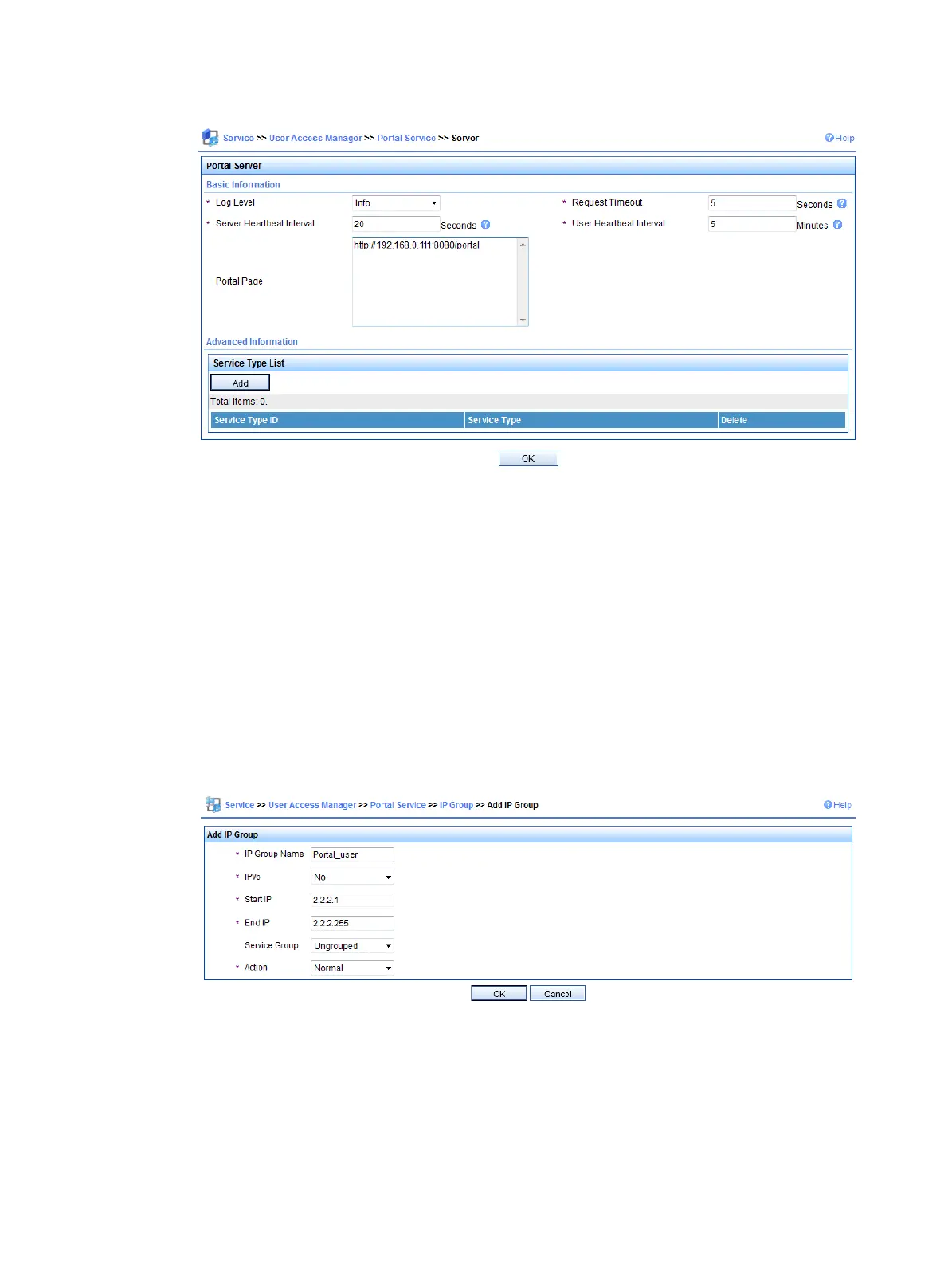

Figure 95 Portal server configuration
2. Configure the IP address group:
a. Select User Access Manager > Portal Service Management > IP Group from the
navigation tree to enter the portal IP address group configuration page.
b. Click Add to enter the page shown in Figure 96.
c. Enter the IP group n
ame.
d. Enter the start IP address and end IP address of the IP group.
Make sure that the host IP address is in the IP group.
e. Select a service group.
By default, the group Ungrouped is used.
f. Select the IP group type Normal.
g. Click OK.
Figure 96 Adding an IP address group
3. Add a portal device:
a. Select User Access Manager > Portal Service Management > Device from the
navigation tree to enter the portal device configuration page.
b. Click Add to enter the page shown in Figure 97.
c. Enter the
device name NAS, enter the IP address of the router's interface connected to the
user, and enter the key, which must be the same as that configured on the switch.
d. Set whether to enable IP address reallocation.
