347

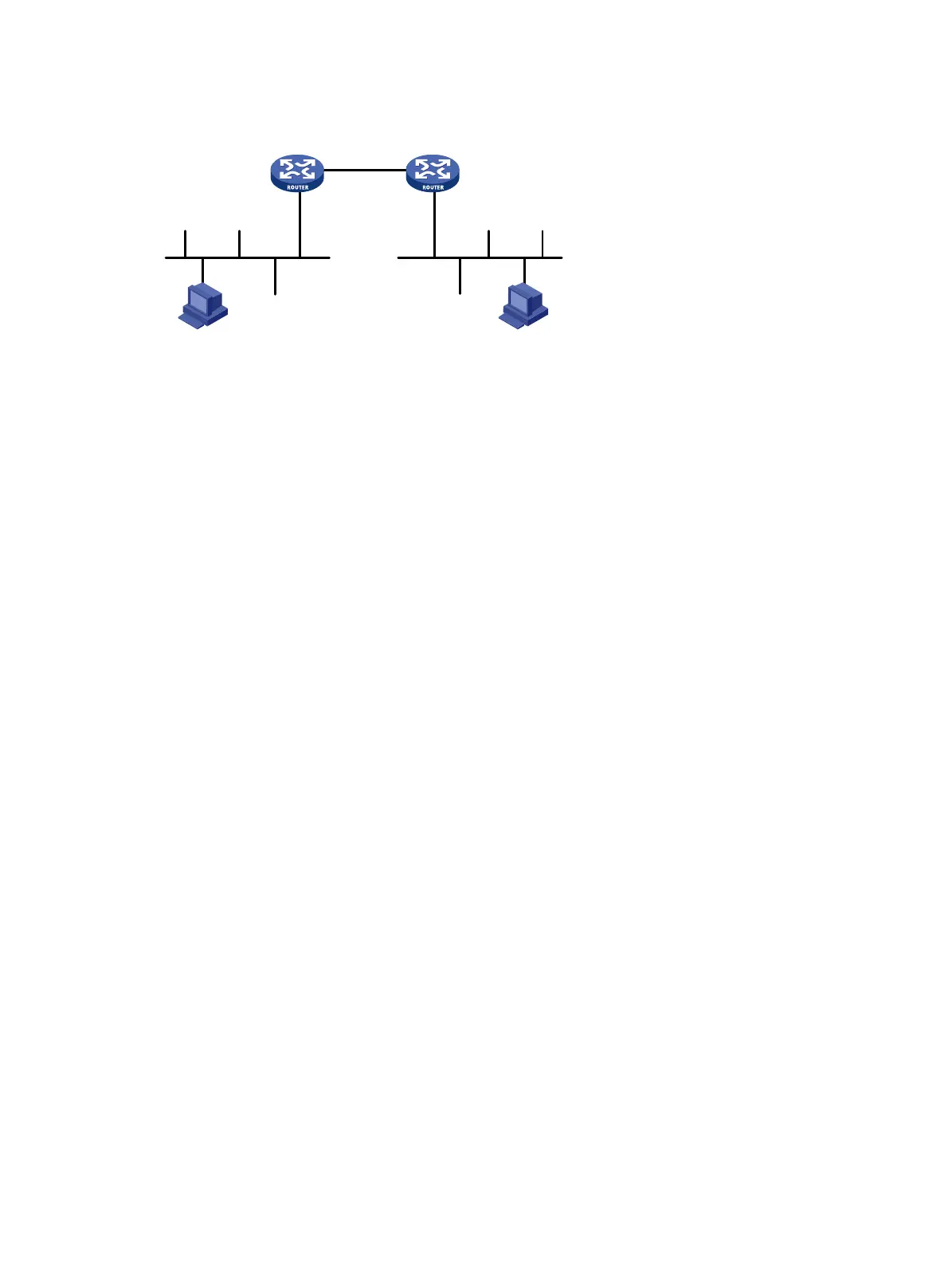

Figure 115 Network diagram

Configuration procedure

# Enable the firewall function on Router A.

<RouterA> system-view

[RouterA] firewall enable

# Configure ACL 3111 to prohibit all IP packets from entering into the internal network. The ASPF will

create a TACL for packets permitted to pass the firewall.

[RouterA] acl number 3111

[RouterA-acl-adv-3111] rule deny ip

[RouterA-acl-adv-3111] quit

# Create ACL 2001 to block Java applets from site 2.2.2.11.

[RouterA] acl number 2001

[RouterA-acl-basic-2001] rule deny source 2.2.2.11 0

[RouterA-acl-basic-2001] rule permit

[RouterA-acl-basic-2001] quit

# Create an ASPF policy that checks application layer protocols FTP and HTTP, and set the idle

timeout value for the two protocols to 3000 seconds.

[RouterA] aspf-policy 1

[RouterA-aspf-policy-1] detect ftp aging-time 3000

[RouterA-aspf-policy-1] detect http java-blocking 2001 aging-time 3000

[RouterA-aspf-policy-1] quit

# Apply ACL 3111 and the ASPF policy to the interface Serial 2/0.

[RouterA] interface serial 2/0

[RouterA-Serial2/0] firewall aspf 1 outbound

[RouterA-Serial2/0] firewall packet-filter 3111 inbound

Router A Router B

Internal network External network

S2/0

10.1.1.1/24

Eth1/1

192.168.1.1/24

Host

192.168.1.2/24

Server

2.2.2.11/24
