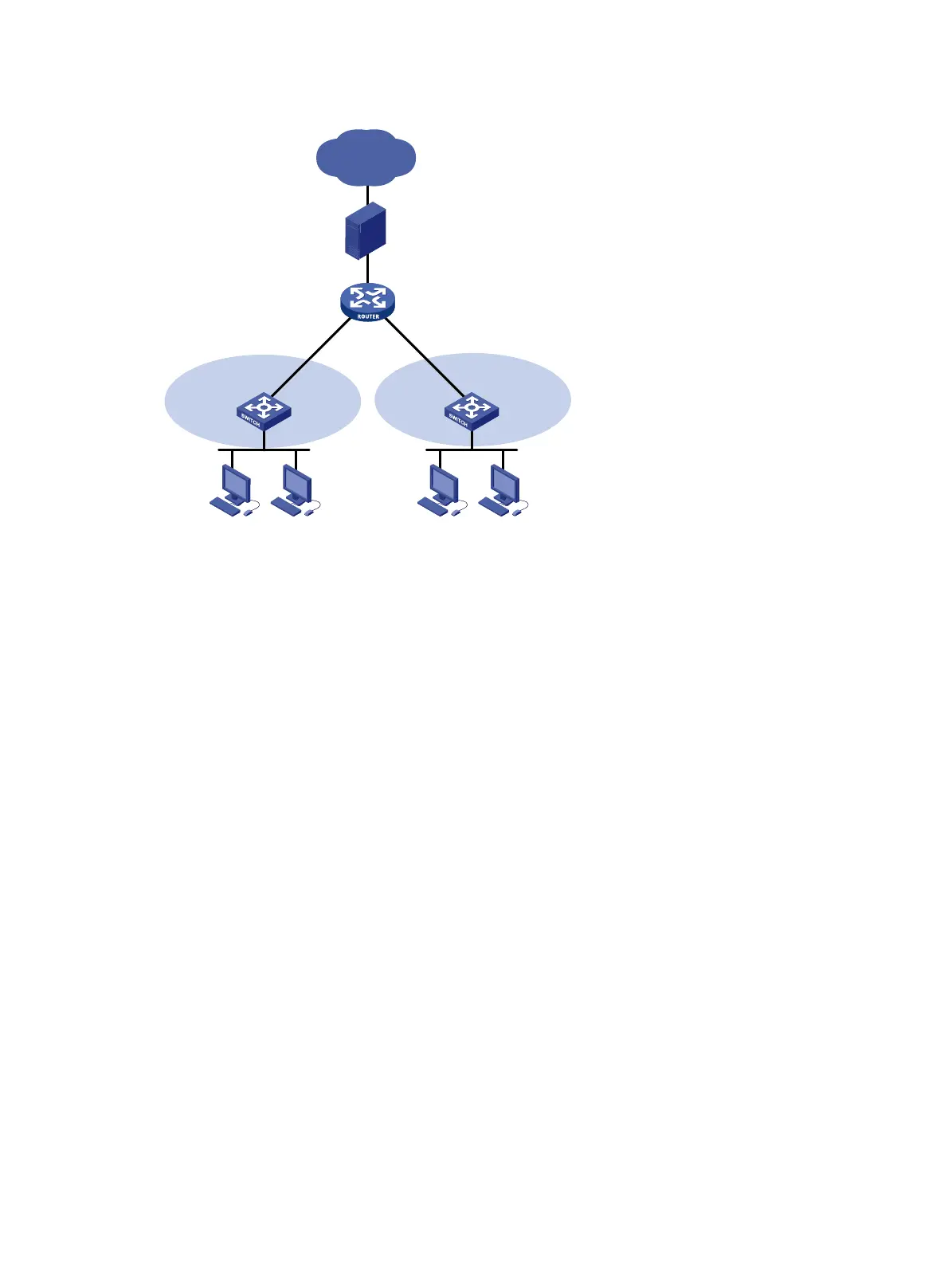

Figure 145 Network diagram
Configuration procedure
1. Configure the device:
# Perform 802.1X related configurations on the device. For detailed configurations, see
"Configuring 802.1X."
# Enable HABP. (HABP is enabled by default. This configuration is optional.)
<Device> system-view
[Device] habp enable
# Configure HABP to operate in server mode, and specify VLAN 1 for HABP packets.
[Device] habp server vlan 1
# Set the interval at which the device sends HABP request packets to 50 seconds.
[Device] habp timer 50
2. Configure Switch A:
# Enable HABP. (HABP is enabled by default. This configuration is optional.)
<SwitchA> system-view
[SwitchA] habp enable
# Configure HABP to operate in client mode. (HABP operates in client mode by default. This
configuration is optional.)
[SwitchA] undo habp server
# Specify the VLAN to which the HABP client belongs as VLAN 1. (An HABP client belongs to
VLAN 1 by default. This configuration is optional.)
[SwitchA] habp client vlan 1
3. Configure Switch B:
Configure Switch B in the same way Switch A is configured.
4. Verify the configuration:
# Display HABP configuration information.
<Device> display habp
Authentication server
Internet
HABP server
Device
HABP client HABP client
Host A Host B Host C Host D
Switch A
Switch B
VLAN 1 VLAN 1
GE1/1
GE1/2

HPE FlexNetwork MSR Series Specifications

General

Category	Network Router
WAN Ports	Varies by model
LAN Ports	Varies by model
Switching Capacity	Varies by model
IPv6 Support	Yes
Product Series	MSR Series
Routing Protocols	BGP, OSPF, RIP, IS-IS, Static Routing
WAN Interfaces	Ethernet, Serial, T1/E1
LAN Interfaces	Ethernet, Fast Ethernet, Gigabit Ethernet
Power Supply	AC or DC (varies by model)
Management	CLI, Web GUI, SNMP
VPN Support	IPsec, GRE, L2TP, DMVPN
QoS Support	Yes
Ports	Varies by model
Firewall	Stateful packet inspection, DoS/DDoS protection, Application layer filtering
