8 – Troubleshooting and System Tests

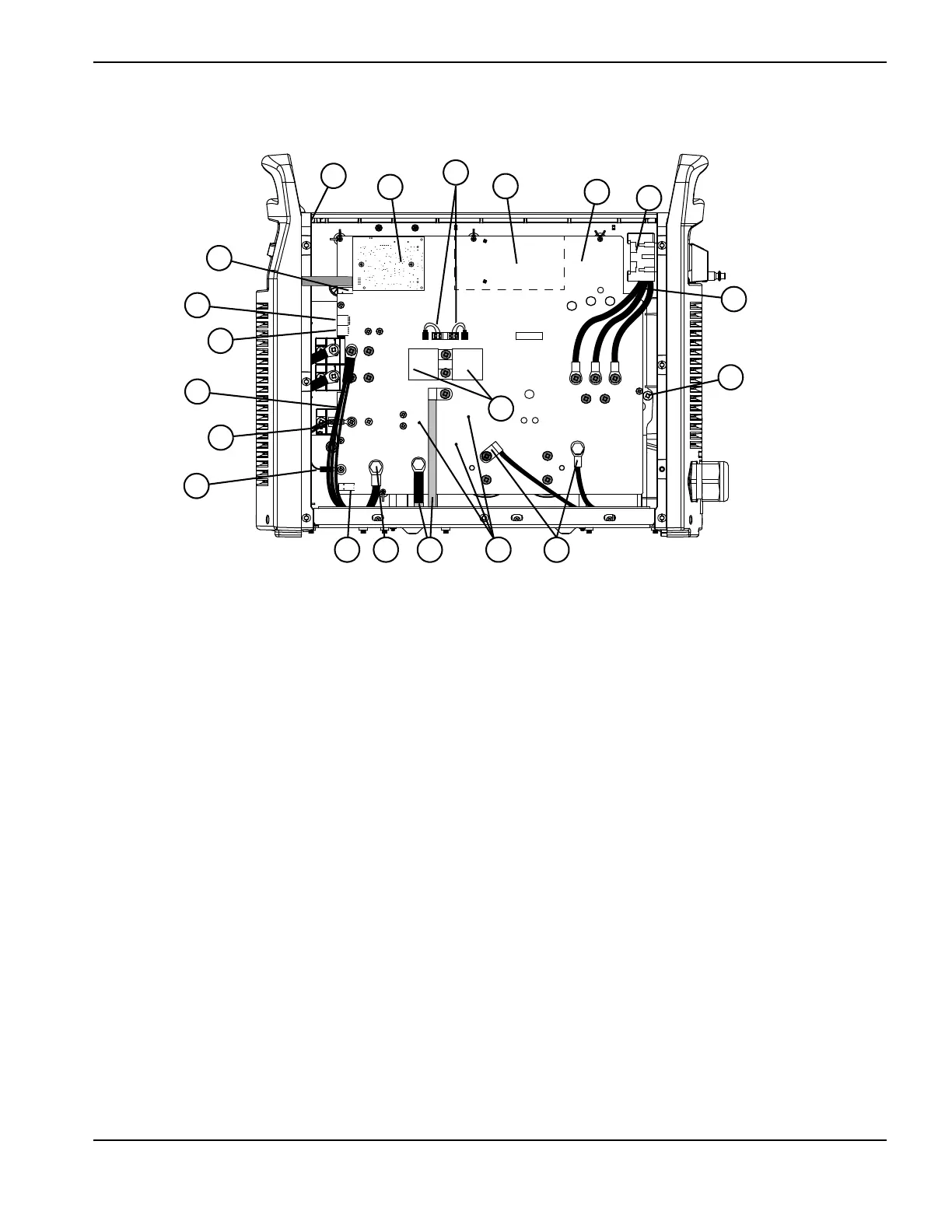

Figure 13 – 480 V, 600 V CSA power supply overview
J22 J21 J20 J19
J27
WORK
LEAD
J26
J25
+
_
+
_
RED
J18
ORG
J17
RED
J32
J11
B
R
J28
C152 C151
TP7
TP9
TP8
W
R
B
1
2
3
4
5
6
7 8
9
10
11
12
13
14
15
20
16
17
18
19
1 J11
2 J17
3 J18
4 Output inductor wires
5 Nozzle wires
6 Electrode wire
7 J32
8 Work lead
9 Transformer wires
10 Test points
11 4μF Capacitors
12 PFC inductor wires
13 Ground
14 AC input wires
15 Power switch
16 Power board
17 Flyback circuit
18 Gate drive connectors
19 Digital signal processor (DSP) board
20 Control board
