9 – Power Supply Component Replacement

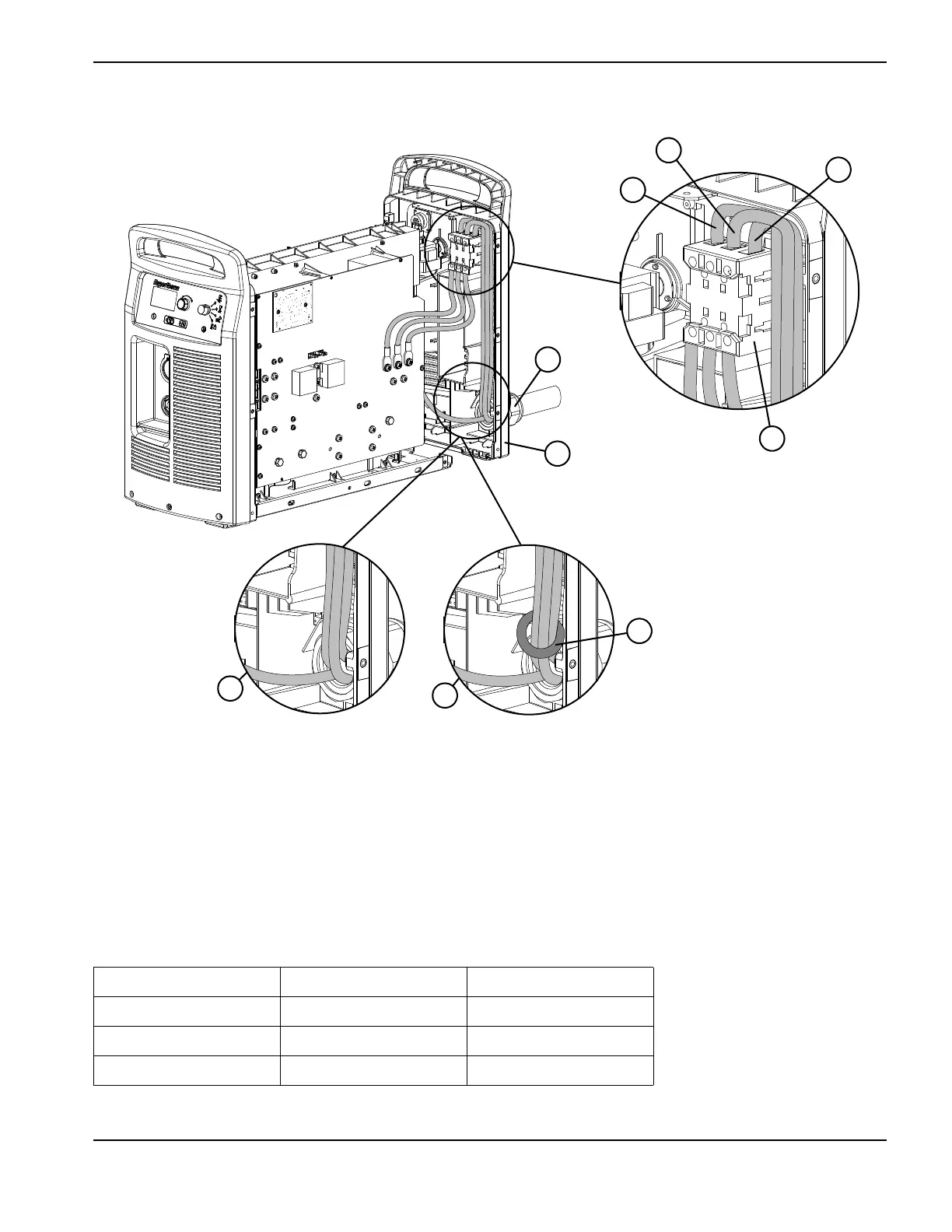

Figure 65
Table 13 – Power cord connections*
Wire CSA CE
L1 Black Brown
L2 White Black
L3 Red Gray
* Wire colors may vary in power cords not purchased from Hypertherm.
2
3
4
6
7
8
9
5
1
1 CSA power cord
2 CE power cord
3 Ferrite core
4 Rear panel
5 Strain relief retention nut
6 Power switch
7 L3
8 L2
9 L1

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
