9 – Power Supply Component Replacement

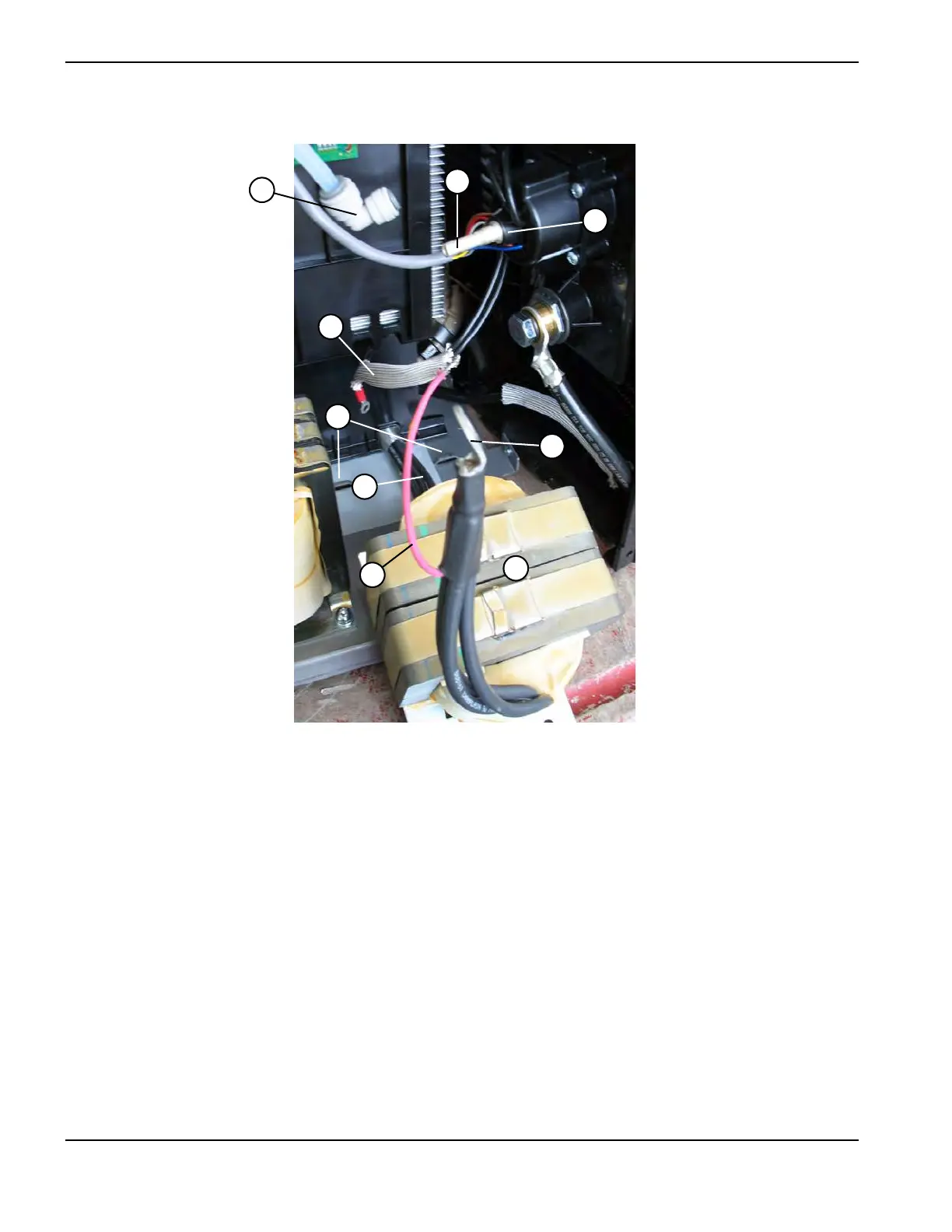

Figure 97
1
2
3
4
5
6
7
8
9
1 90° push-to-connect fitting
2 Protective sheathing
3 Slots in base
4 Long inductor wires (3)
5 Electrode wire (red)
6 Output inductor
7 Ring terminal
8 Plastic hub
9 Silver-plated fitting
