9 – Power Supply Component Replacement

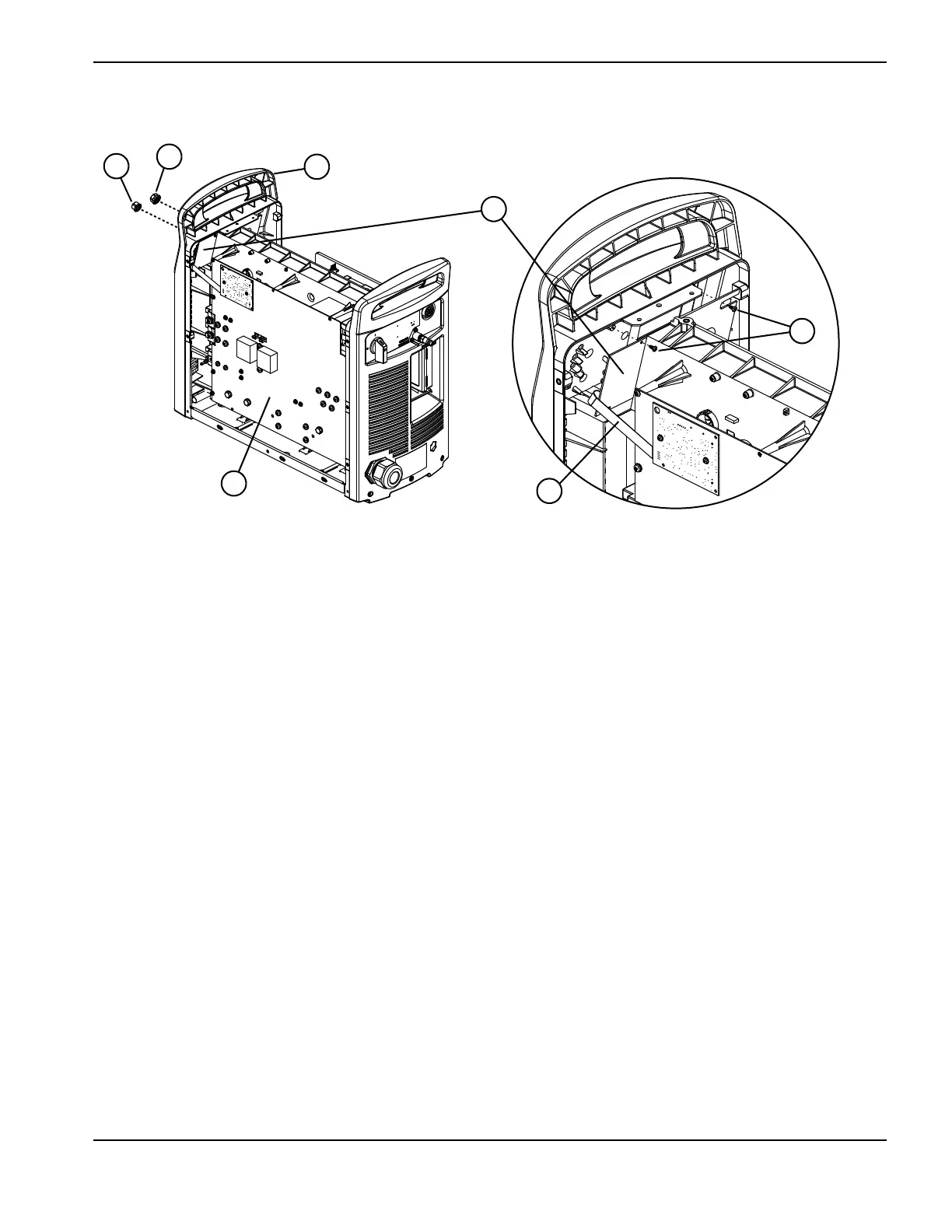

Figure 107
2
3
4
5
6
7
1
1 Current adjustment knob
2 Operating mode knob
3 Power board
4 Ribbon cable
5 Top mounting screws for control board
6 Control board
7 Top of front panel
