Hypertherm Powermax 125 Service Manual

254 Powermax125 Service Manual 808070
9 – Power Supply Component Replacement
7. Disconnect the quick disconnect receptacle from the front panel by removing the 4 mounting screws.
8. Remove the bolt securing the work cable to the work lead receptacle.
9. Remove the nut and lock washer securing the work lead receptacle to the front panel.
10. Push the work lead receptacle out through the front panel.

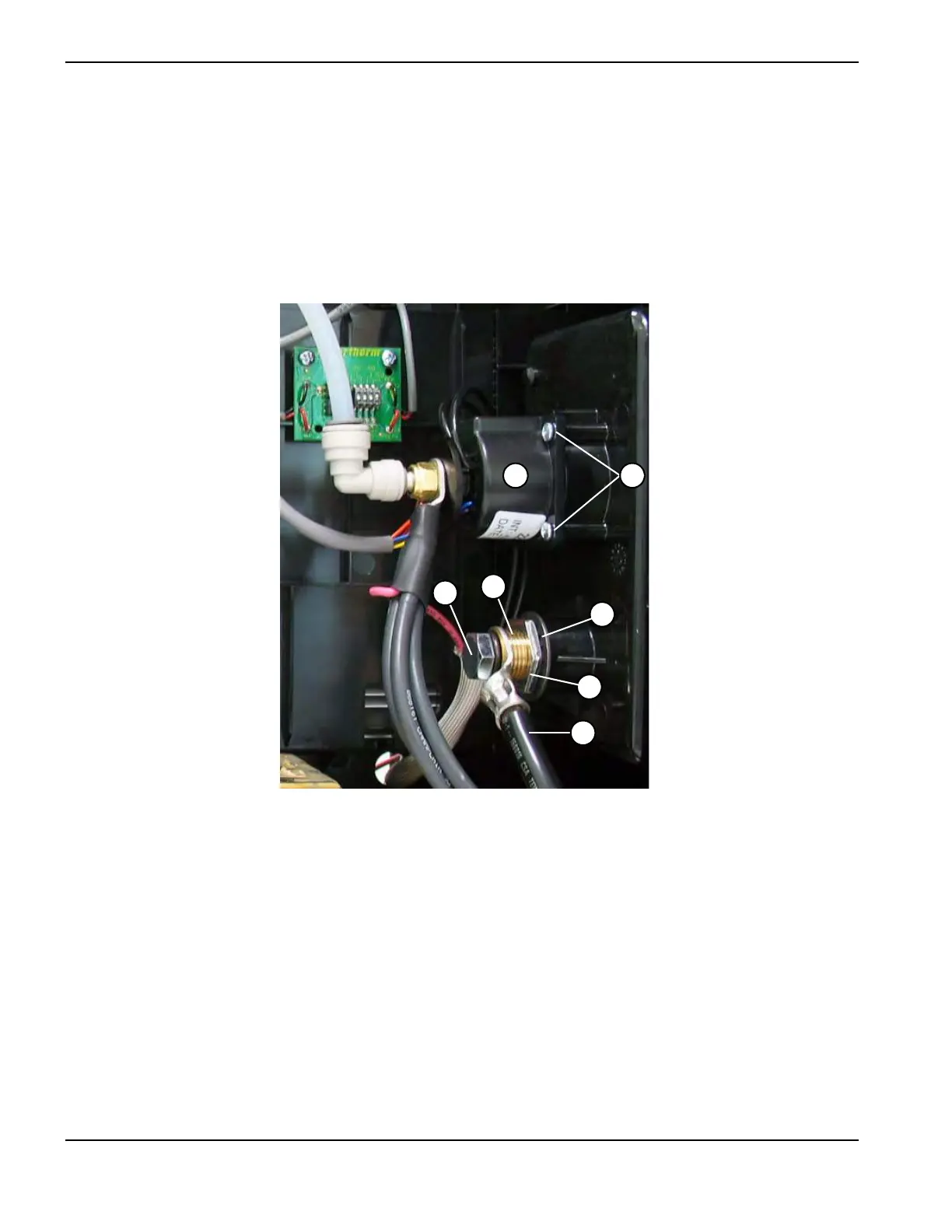

Figure 108
3
4
5
6
1
2
7
1 Work lead receptacle
2 Bolt
3 Work cable
4 Nut
5 Lock washer
6 Quick disconnect receptacle
7 Mounting screws (4)

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
