Hypertherm Powermax 125 Service Manual

270 Powermax125 Service Manual 808070
10 – Torch Component Replacement

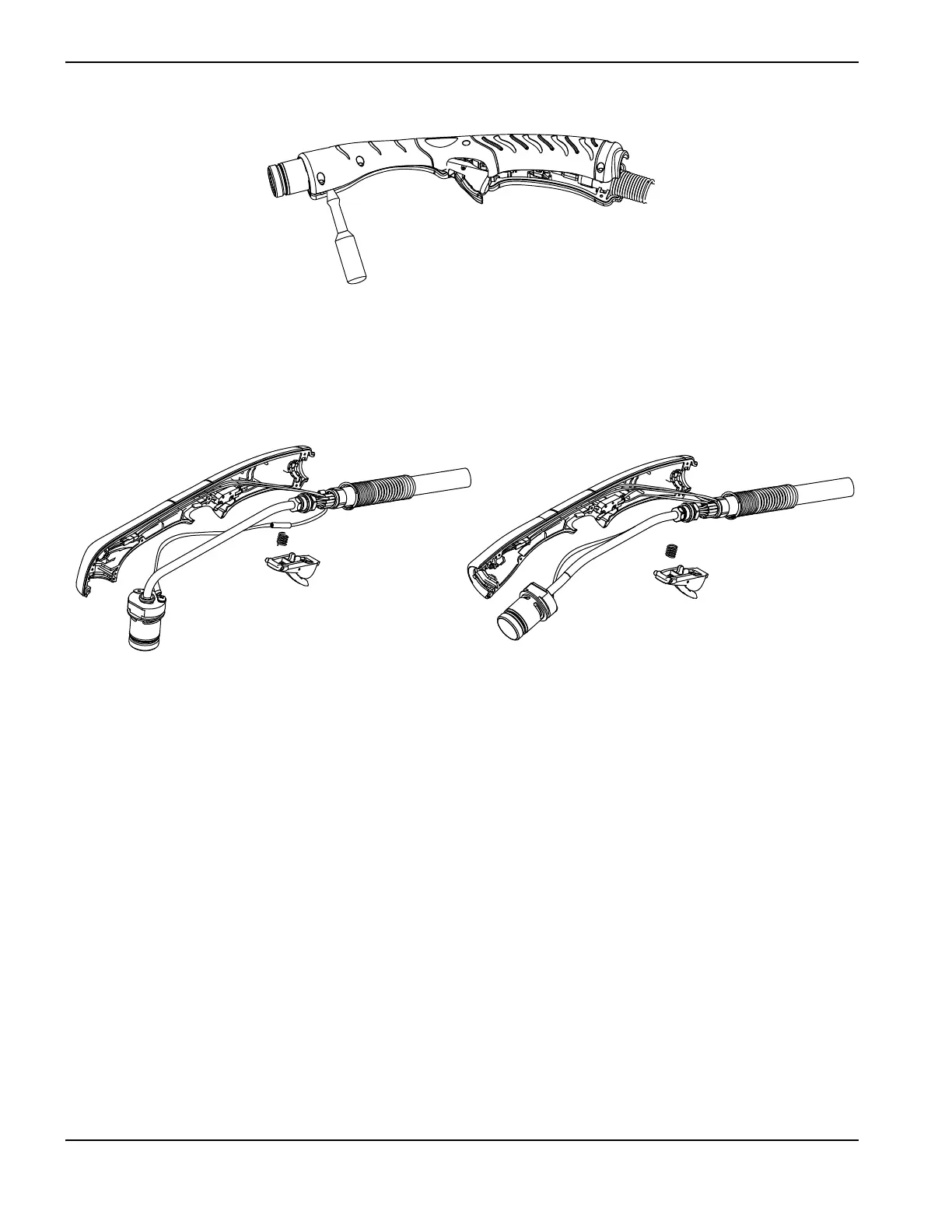

Figure 122
6. While holding the spring in place, slide the trigger and spring up and out of the handle. Set them aside.
7. The torch body fits snugly into the right side of the handle. While holding the torch body, gently press the right side of
the handle away from the torch body to remove it.
Figure 123
8. Slide the cap-sensor switch off its mounting post. (See Figure 125 on page 271.)

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
