Powermax125 Service Manual 808070 271
10 – Torch Component Replacement
Figure 124
9. Using a blade screwdriver, pry the start switch off the 2 mounting posts.
Figure 125
1
2
3
4
5
6

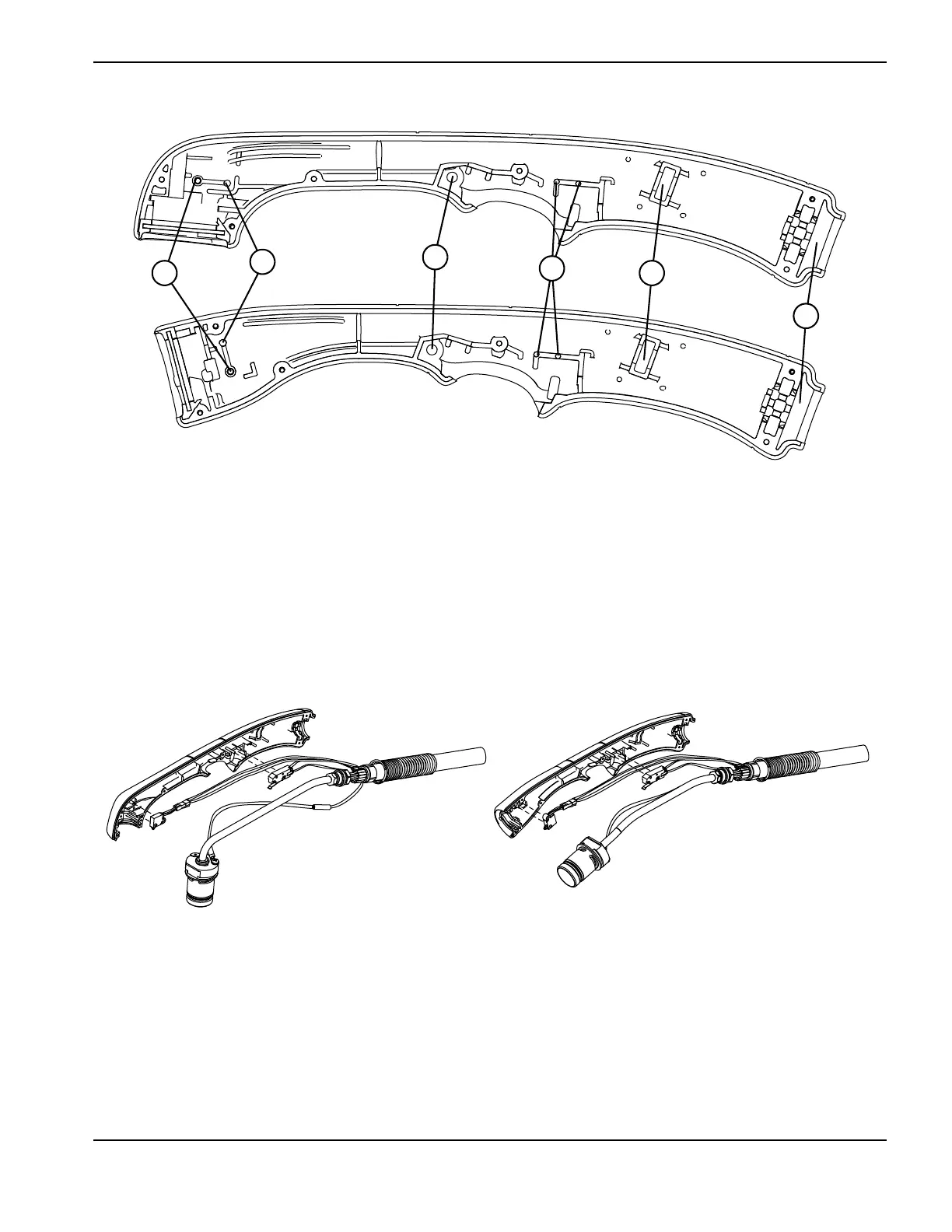

1 Cap-sensor switch’s post hole
2 Cap-sensor switch’s mounting post
3 Trigger’s pivot hole
4 Start switch’s mounting posts
5 Slot for the gas hose fitting’s flange
6 Strain relief slot
