Routine Maintenance
11
156 809240 Operator Manual Powermax45 XP

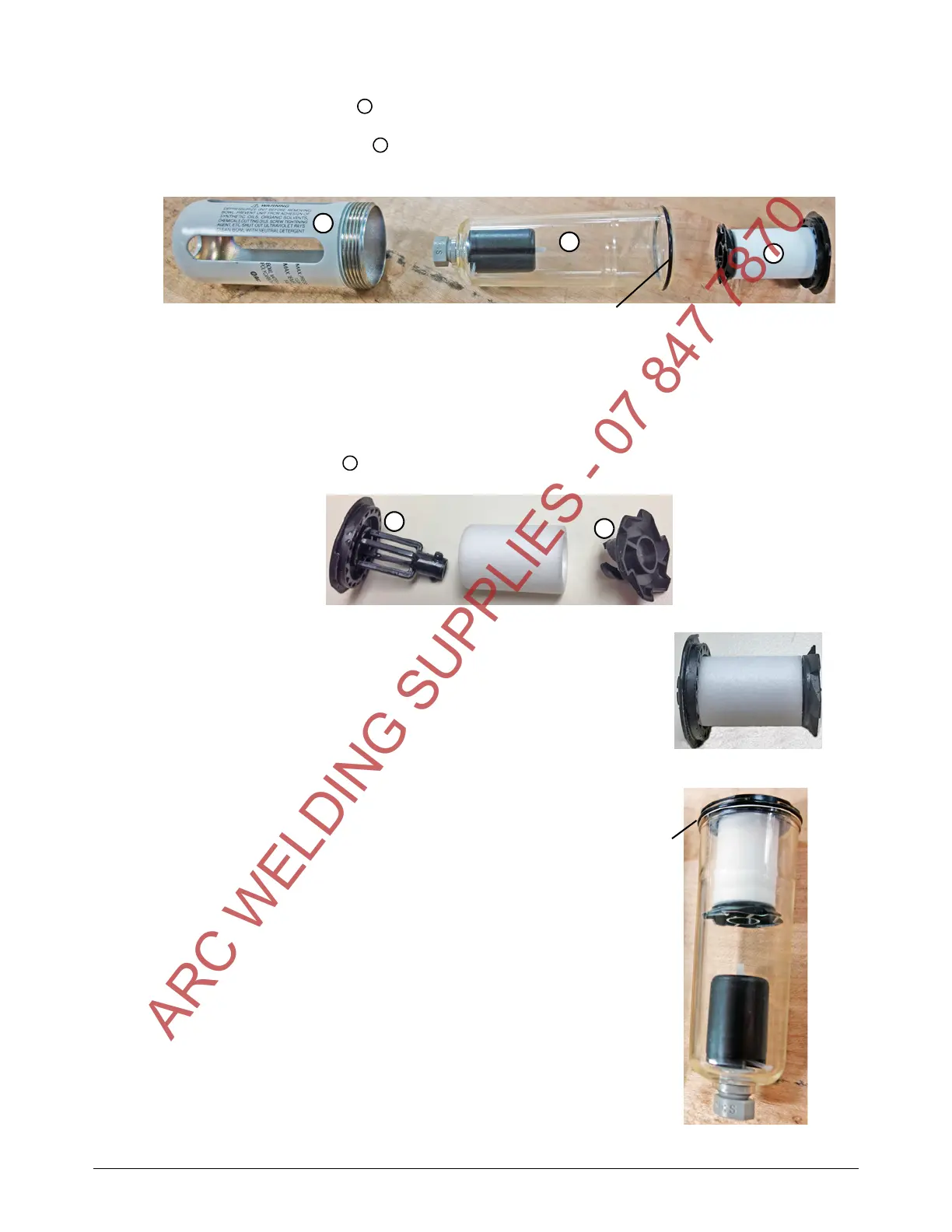

4. Remove the air filter bowl from the metal guard.
5. Gently pry the filter element out of the filter bowl. Be careful not to damage the O-ring at the
top of the bowl.
6. Are you replacing the filter element or the air filter bowl?
 If you are replacing only the air filter bowl, skip to step 11.
 If you are replacing the filter element inside the bowl, continue with the next step.
7. Twist the plastic fittings until they come apart, approximately a 1/4 turn. Set the fittings aside.
8. Enclose the new air filter element in the plastic fittings.
Twist the plastic fittings until they lock together,
approximately a 1/4 turn.
9. Clean the air filter bowl by wiping away any oil, dirt, or
other contaminants.

A yellow residue on the filter bowl often indicates
that oil is getting into the gas supply line.
10. Examine the air filter bowl’s O-ring. Replace it if it is
cracked or damaged. Place the O-ring at the top of the
filter bowl.
11 . Place the filter element inside the air filter bowl. Press
down on the top plastic fitting until you hear it snap into
place.
12. Place the air filter bowl inside the metal guard.
2
3
1
2
3
O-ring
4
4
4
O-ring
