Attaching the pull-out handle
Follow these steps to install the pull-out handle:
1. Complete the instructions described in “Attaching the system and bezel latches”
on page 87.
2. Align the handle to the clip at approximately a 45-degree angle. See Figure 91.
3. Place the pull-out handle on the clip and slide it to the right for a secure fit.
Installing the cable guide and the cable guide arm assembly
Note: Install the optional cable guide and cable guide arm assembly prior to
inserting the system unit into the housing.
Follow these instructions to install the cable and cable guide arm assembly:

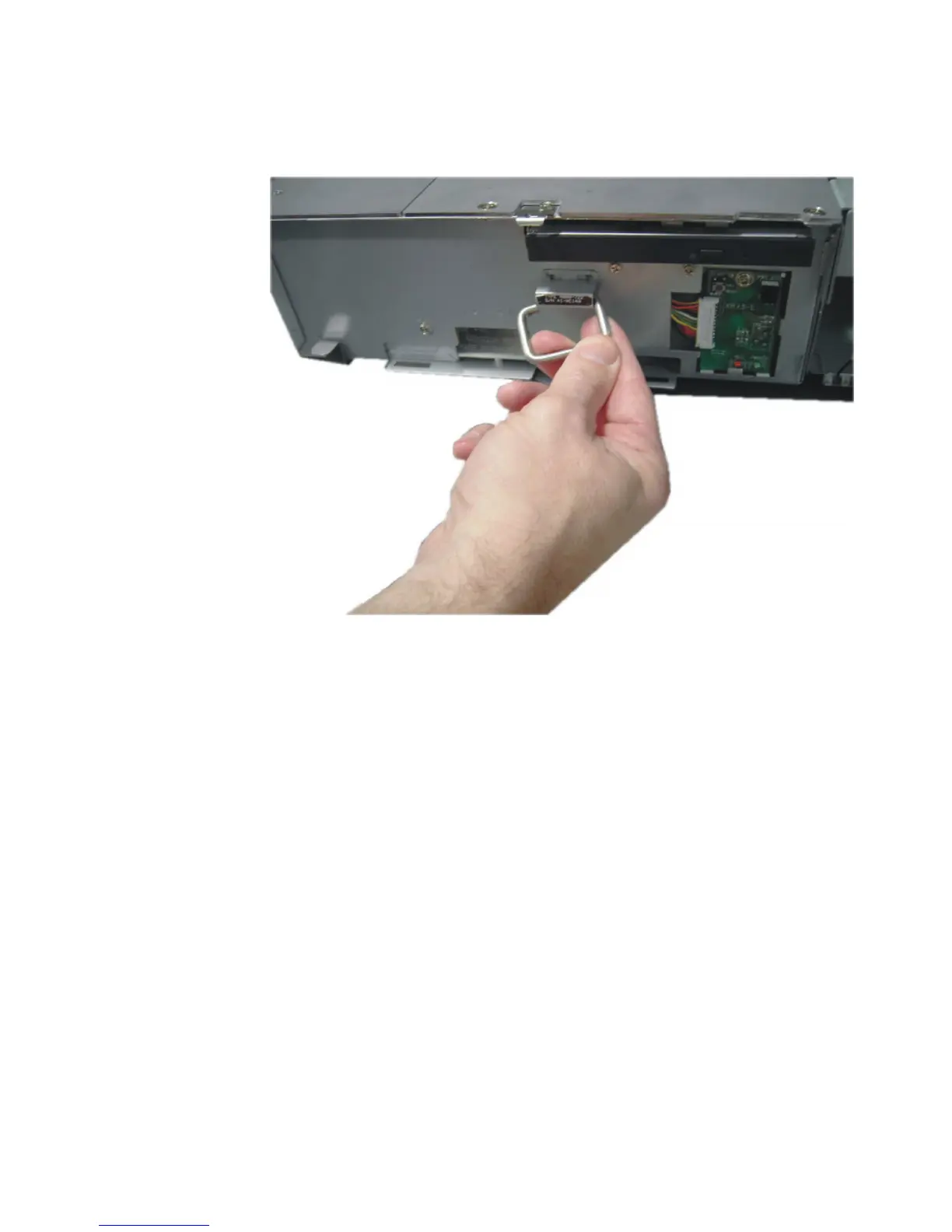

Figure 91. Attaching the pull-out handle
Updated October 31, 2007
Chapter 4. Installing external options 89
