2. Remove the till (see A in Figure 48).
3. From inside the drawer, squeeze the cutter latches together with your fingers
and push the coin-roll cutter (B) outward until you can remove it from the
outside.
4. To exchange the coin-roll cutter, snap the new one into position from the
outside.
5. Reassemble.
A
B

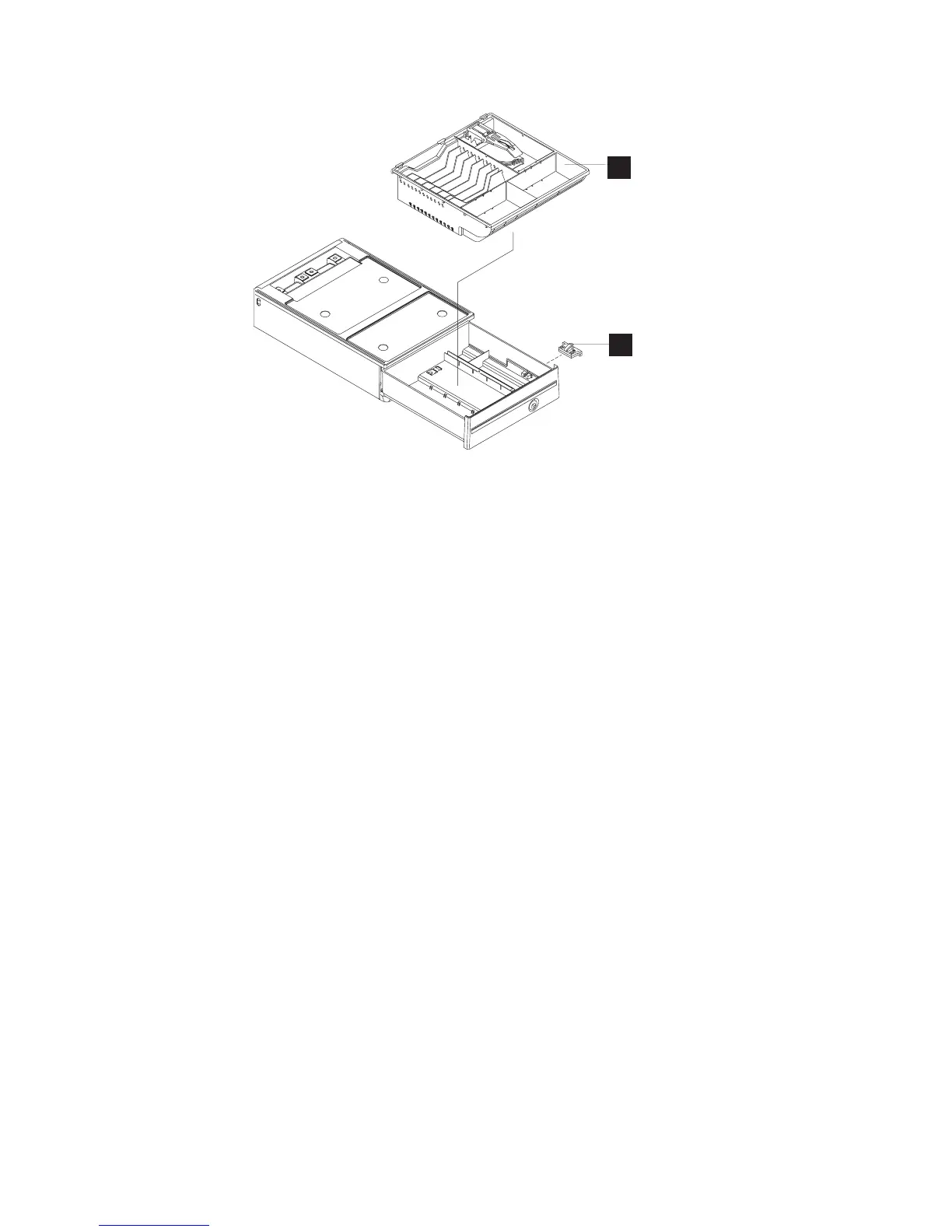

Figure 48. Install coin-roll cutter
Updated October 31, 2007
58 SurePOS 700 Series: SurePOS 700-721/741/781, 722/742/782 Planning, Installation, and Operation Guide
