IBM 4800-741 - Installing the Keyboard-Replacement Filler; Location of Installed Fillers

A Step 1
B Step 2
To install the filler panels:
1. Place the display filler (A in Figure 36) on the system unit. Do not remove the
knockout section
2. If you have a 50-key keyboard or 50-key keyboard with MSR:
a. Place the keyboard filler panel (B in Figure 36) beside the keyboard.
b. Hook the foot of the keyboard filler panel into the hole, and snap the front of
the filler panel into place.
3.
If you are using a touch screen and therefore are not using a keyboard, place
the keyboard-replacement filler panel (C in Figure 36) at the front of the unit.
Hook the foot of the keyboard-replacement filler panel into the holes, and snap
the front of the filler panel into place.
AB

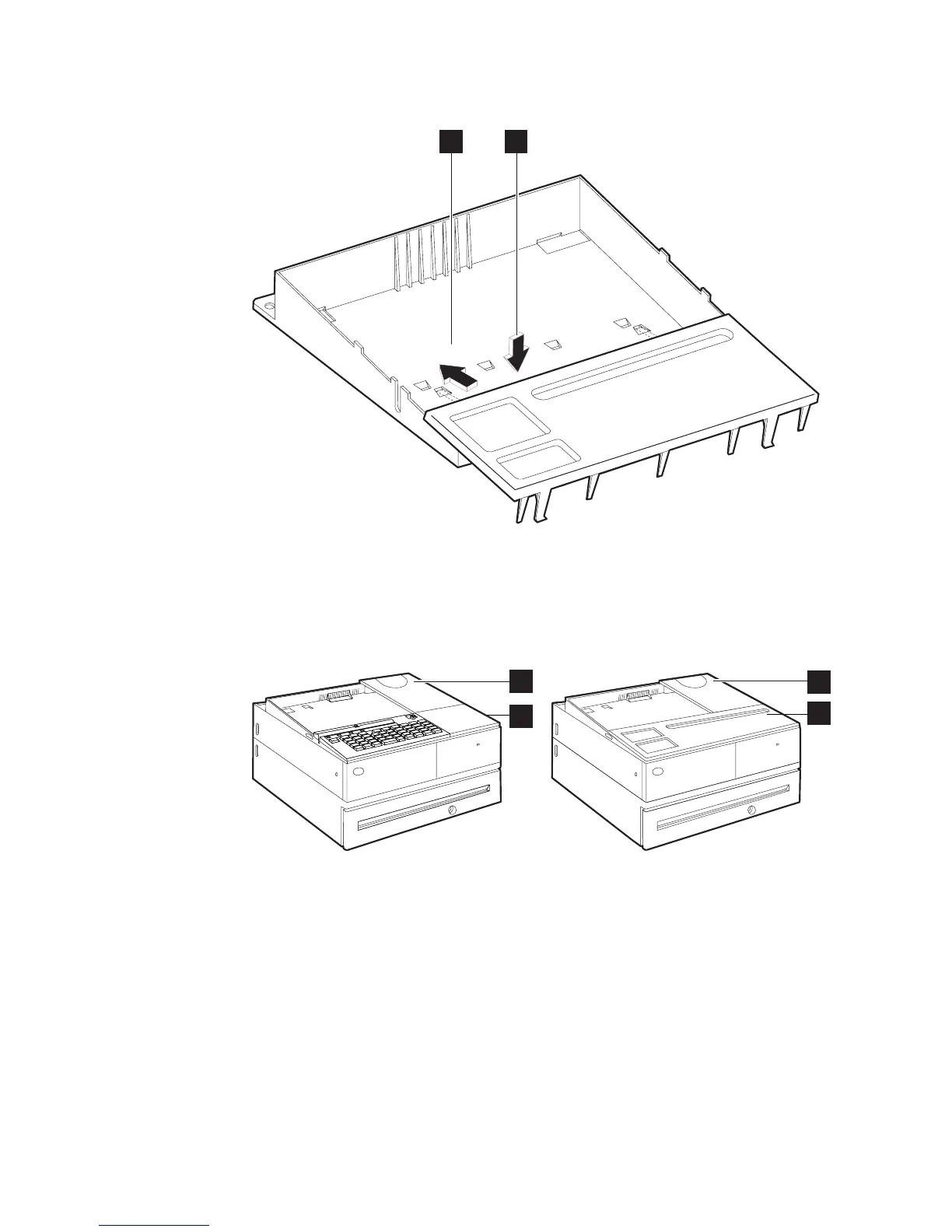

Figure 35. Installing the keyboard-replacement filler
A
A
B
C
A
A
A
A
Figure 36. Location of installed fillers
