Top plate removal
Note: This section is provided for installation procedures that are not a part of an
initial setup.
To remove the top plate:
1. Remove the front bezel and top cover by following the steps in “Cover removal
procedures” on page 45.
2. See Figure 41. Locate and remove the eight screws (D) holding the top plate.
3. Slide the cover backward and then lift upward to remove.
4. To replace, reverse these procedures.
Note:
To aid installation, the holes that require a screw have an arrow imprinted
beside of them.
D X8

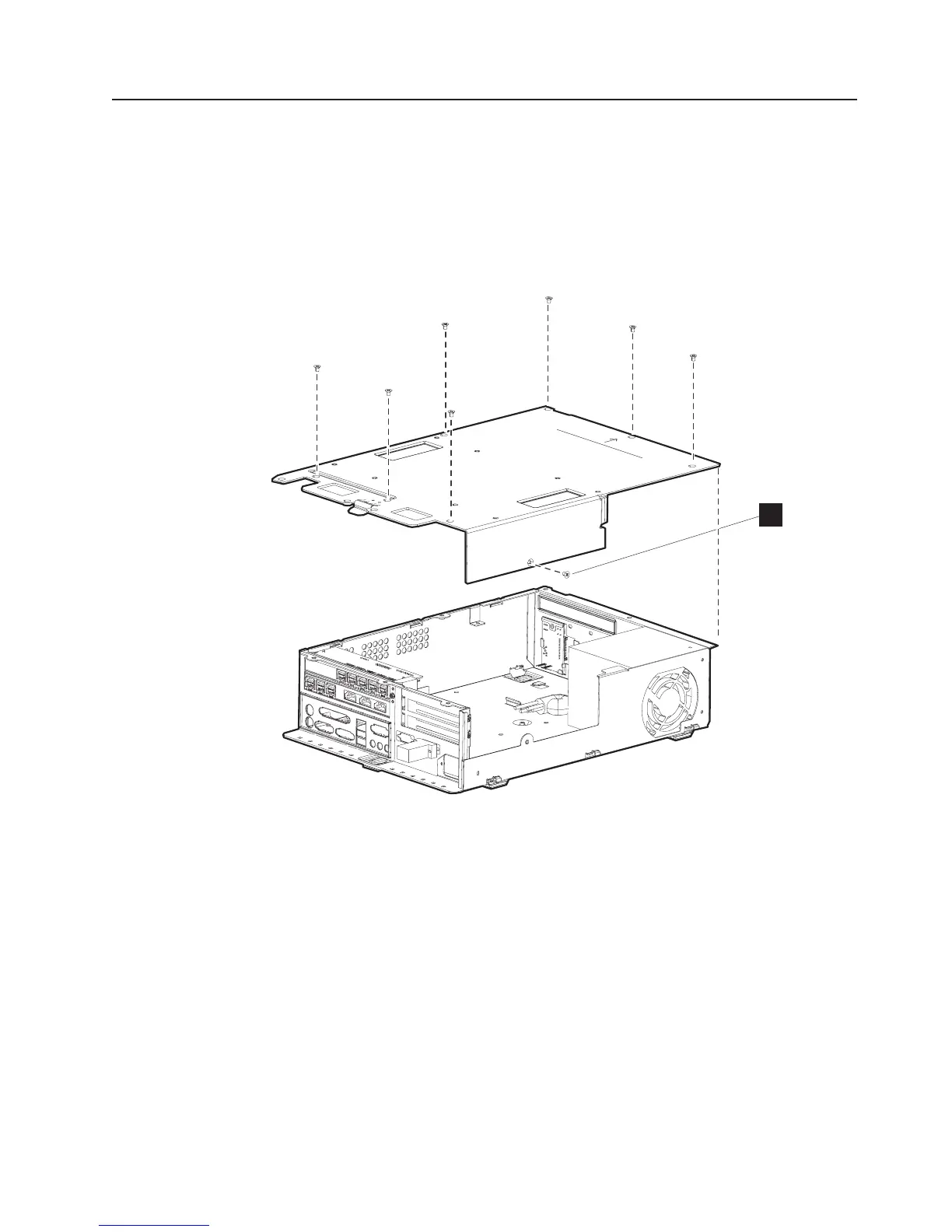

Figure 41. Top plate screws
Updated October 31, 2007
Chapter 3. Installing internal options 49
