5. See Figure 18 and place the unit in the operating position.
Note: If you are installing a UPS, follow the remainder of these steps. If you
are not inserting a UPS, go to Step 7 on page 32 to secure the
expansion housing to the system unit.
a. To install the UPS, remove the sheet metal panel (see Figure 18.)
b. The unit as shipped from the factory does not have the battery connected.
Connect the battery to the UPS as follows:
c. See Figure 19, Picture 1. With the UPS on its side, remove the battery
door.
d. See Picture 2. Pull the battery out of the UPS such that you can view the
wiring and plug.
e. Connect the plug with the red wire (Picture 3).

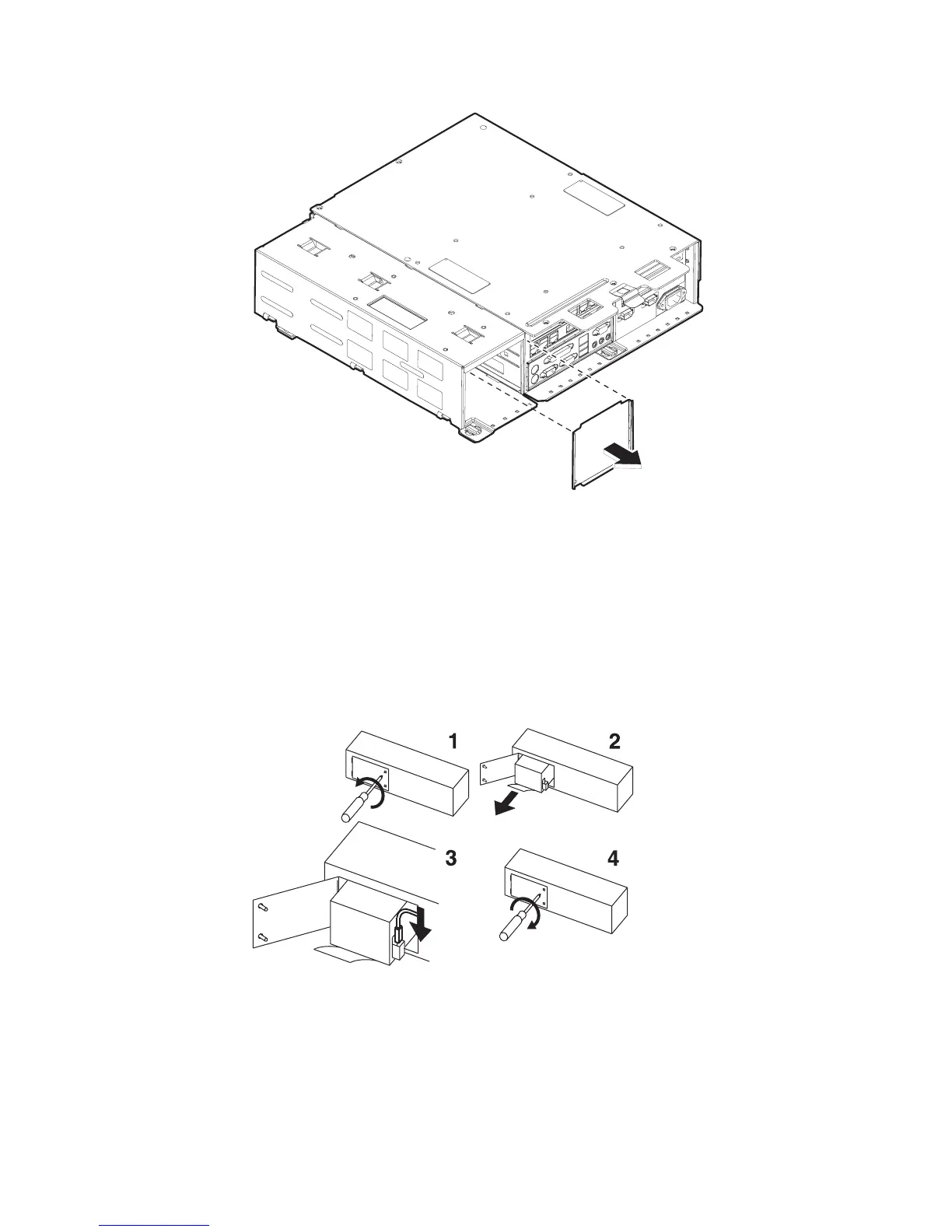

Figure 18. Removing the sheet metal panel
Figure 19. Connecting the battery to the UPS
Updated October 31, 2007
30 SurePOS 700 Series: SurePOS 700-721/741/781, 722/742/782 Planning, Installation, and Operation Guide
