3. Connect the display cable A in Figure 69 to the display unit. Spread the arms
on the character/graphics display B slightly, and install the display unit C.
4. Route the display cable through the rear of the POS terminal A in Figure 69 in
Figure 70, and screw the post to the POS terminal B.
Note: Use long thumbscrews when installing the display on a SurePOS Models
721/741/781 and 722/742/782 without a slanted I/O tray.
B
B
A
C

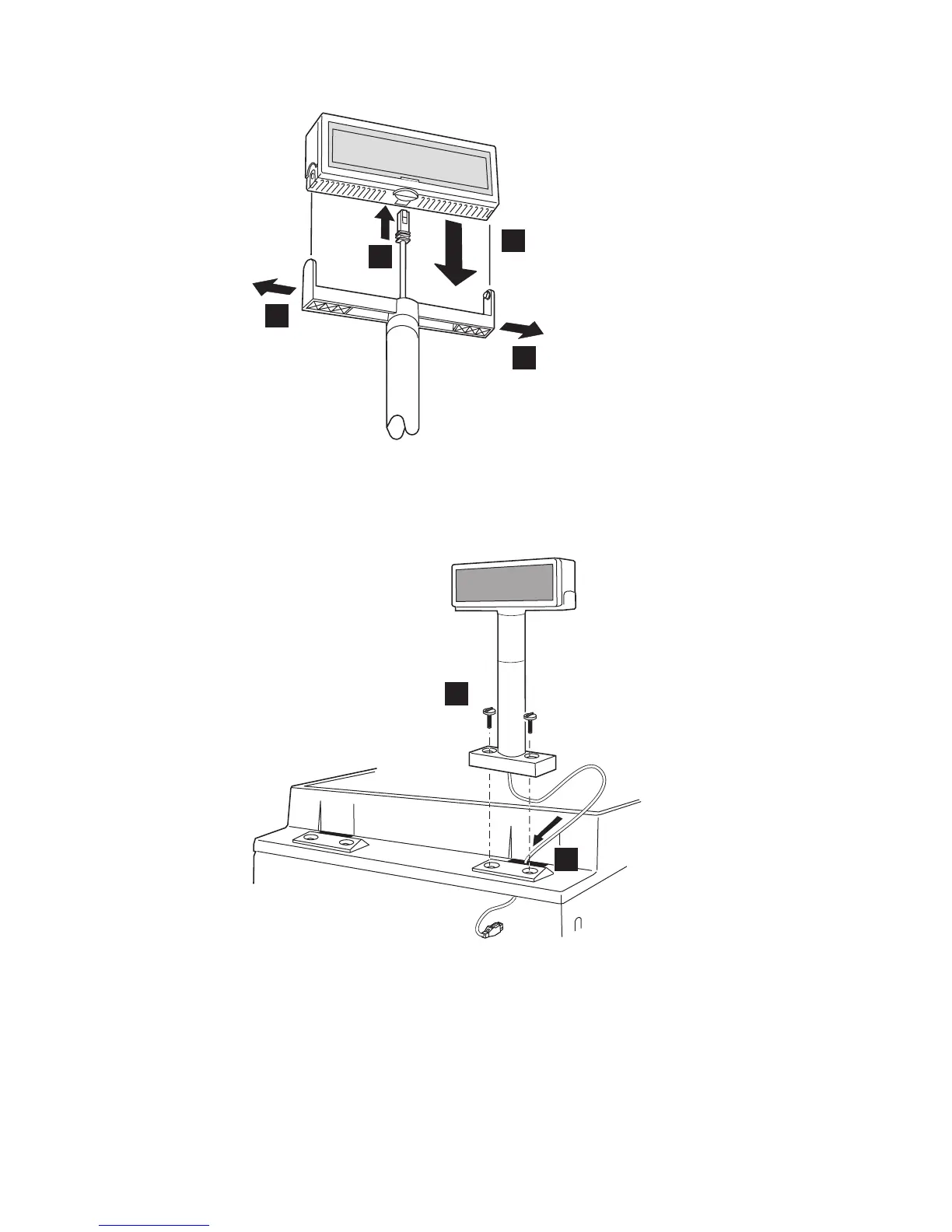

Figure 69. Placement of the character/graphics display on the arm
A
B
Figure 70. Routing the cable
Updated October 31, 2007
72 SurePOS 700 Series: SurePOS 700-721/741/781, 722/742/782 Planning, Installation, and Operation Guide
