Installing a CRT on a post mount
1. Switch the power OFF.
2. Place the CRT upside down on a table or counter.
3. Thread the power cord and video cable of the CRT through the tilt/swivel.
4. Place the hooks of the mount into the base of the CRT and slide the mount
forward.
Note:
Route the cables through the cutout in the tilt/swivel assembly.
5. Thread the power cables and the video cables down through the post.
6. If you are installing on a base, open the cable cover and pull the cables out
through the opening. If you are bolting the post to a counter top, pull the
cables straight through the bottom opening.
7. Attach the tilt/swivel to the post with one screw.
8. If you are using a base, attach the post to the base with four screws.
9. Turn the CRT right side up and place it on the counter.
10. If you are not using a base, bolt the post to the counter.
11. Attach the CRT’s signal cable to the video port on the system unit.
12. Plug the display power cord into a wall outlet using an adapter cable, or into
the uninterruptible power supply (if installed).
13. Power ON the SurePOS 700.

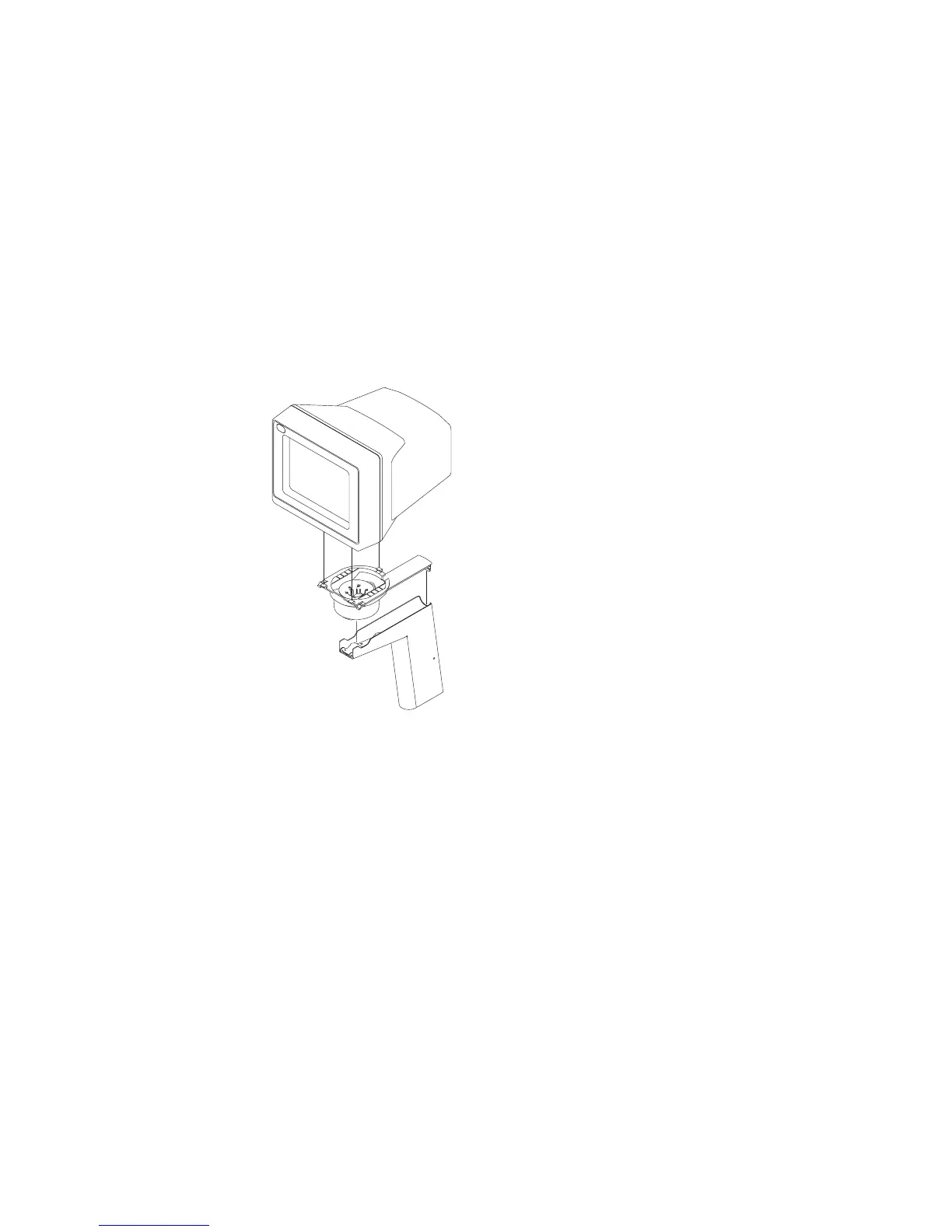

Figure 75. Attaching the CRT to a post mount
Updated October 31, 2007
Chapter 4. Installing external options 77
