Power management
Power management on the SurePOS Models 721/741/781 and 722/742/782 is
based on the standard desktop PC model. Depending on OS and drivers used, all
models are capable of being placed into a standby state with AC power applied.
Protection from AC power events is provided by an optional UPS that can be
integrated into the wide-footprint unit. Support is provided for the following industry
standards and conventions:
v ACPI - APM
v Wake on LAN
v Wake on real-time clock alarm
v Wake on PS/2 keyboard/mouse

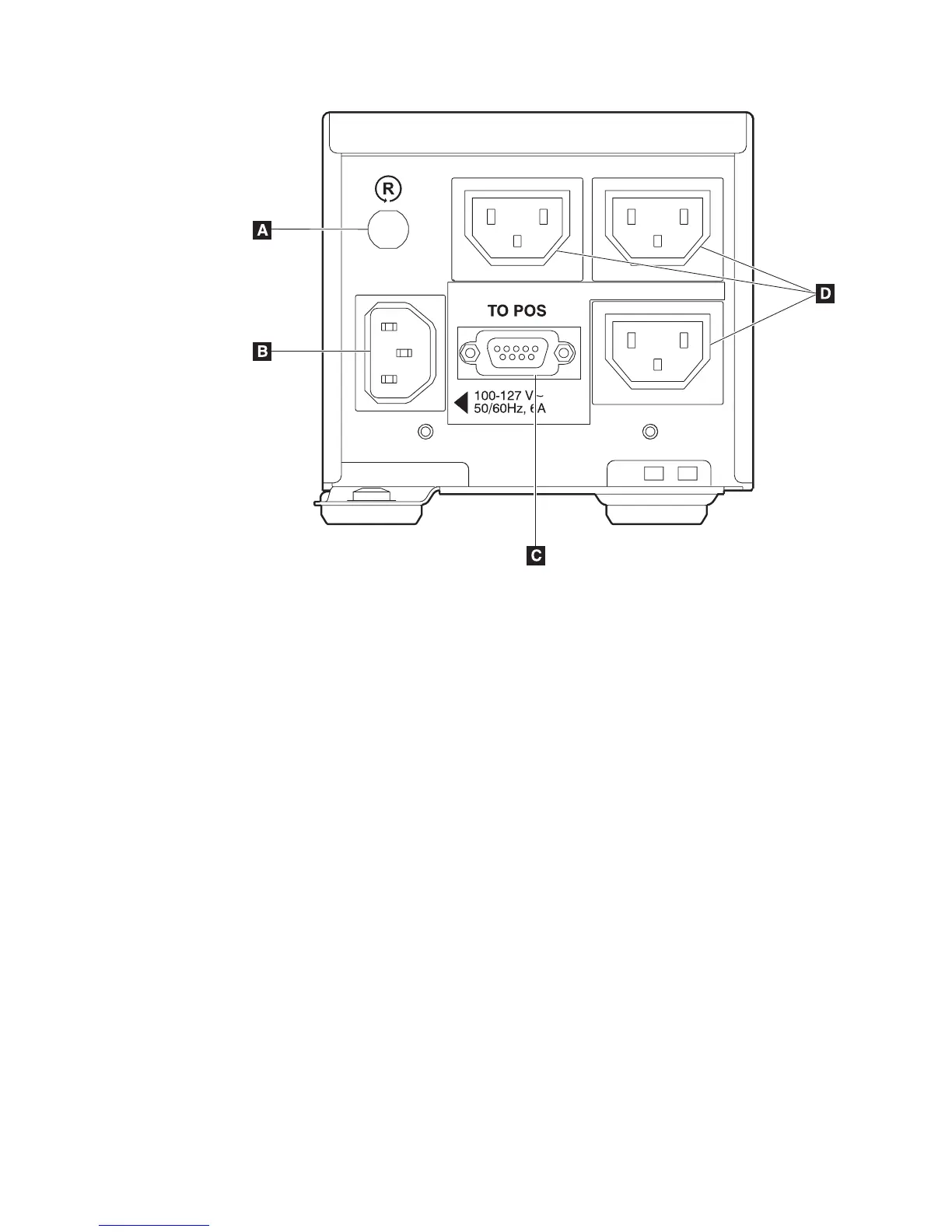

Figure 10. UPS rear view. A: Circuit breaker; B: Power inlet; C: RS-232 port ; D: AC
outlets
Updated October 31, 2007
12 SurePOS 700 Series: SurePOS 700-721/741/781, 722/742/782 Planning, Installation, and Operation Guide
