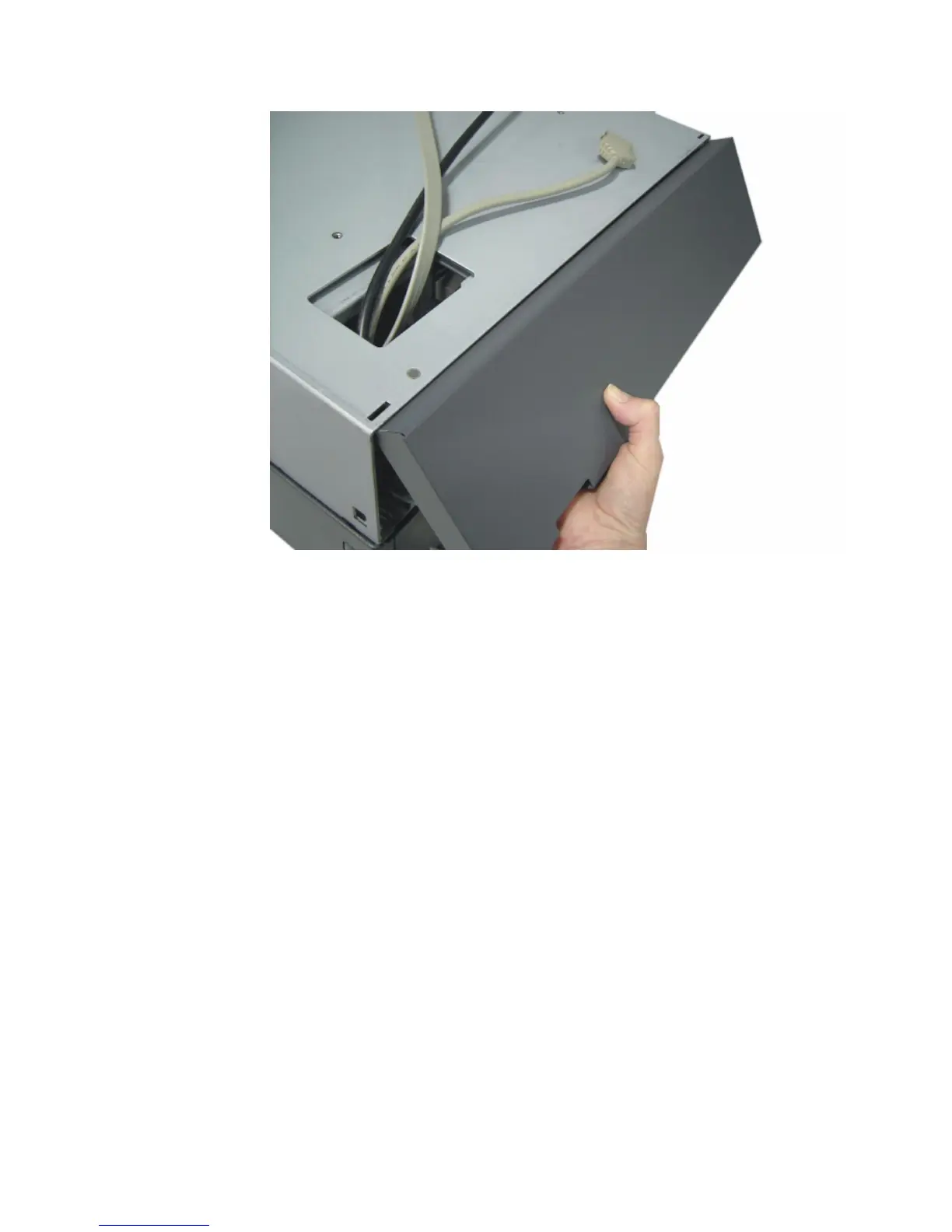

8.
Attach
the
back
cover
as
shown
in
Figure
100.
Installing
the
display
stand
Install
the
display
stand
as
follows:
1.
Complete
the
instructions
described
in
“Attaching
the
I/O
tray”
on
page
92
and
“Routing
the
cables”
on
page
93.
Figure
100.
Attaching
the
back
cover
Updated
October
31,
2007
Chapter
4.
Installing
external
options
97
116
118
Table of Contents
Default Chapter
5
Table of Contents
5
Figures
9
Tables
13
About this Guide
15
Who Should Read this Guide
15
How this Guide Is Organized
15
Related Publications
15
Preface
15
Publications Accessibility
16
Sure POS Models 7X1 and 7X2 Important Driver Information
16
Uninterruptible Power Supply Option
16
Ga27-4238-02
17
Ga27-4328-01
17
Summary of Changes
17
Web-Only Update March, 2007
17
Providing Feedback
19
Chapter 1. Introducing the Surepos 700 Models
21
Example of the Wide and Narrow Surepos 700 Series
21
Physical Characteristics
22
Dimensions
22
Controls and Indicators
22
Models and Descriptions
22
Front Panel Controls and Indicators
23
Connectors
24
Overview of Rear Panel
24
Rear View of Input/Output Available on All Models
25
USB-Only Configuration (Models 7X1)
26
USB-Only Configuration (Models 7X2)
26
And USB Configuration
27
Cooling
28
Environmental and Temperature
28
Power
29
Power Switch Operation
29
Port DC Loads
29
Uninterruptible Power Supply (Optional)
30
Location of UPS Configuration Switches
31
Power Management
32
UPS Rear View
32
Features and Options
33
Video Function
35
Local Area Network
35
Audio and Headphones
35
Pc I/O
36
System Memory
36
Optional USB DASD
36
USB Support
36
Unique Software Interface
37
I/O Devices
37
Cash Drawers
38
Setting the Cash Drawer Using the Jumper Override
38
Voltage Setting for the 4689 DBCS Surepos Receipt Journal Printer
39
Location of Printer Jumper on the I/O Card
39
Powered USB Connectors
40
Example of the Powered USB Port
40
System and Driver Support
41
Operating Systems
41
Drivers
41
Bios
41
Compatibility
42
Hardware
42
Software
42
Calling for Service
43
Serial Number and Machine Information
43
Chapter 2. Installation and System Setup
45
Before You Begin
45
Supported Operating Systems
45
Determining Your Configuration
45
Your Order and Packaging
45
Setup Procedures
46
Step 1. Installing Your Internal Options
46
Step 2. Wide Units Only: Installing the Expansion Housing and the Optional UPS
47
Removing the Retainer Bracket
47
Correct Placement of System Unit for Installing Expansion Housing
48
Aligning the Expansion Housing with the System Unit
49
Removing the Sheet Metal Panel
50
Connecting the Battery to the UPS
50
Saving the Battery Date Label
51
Inserting the UPS
51
Replacing the UPS Retainer Bracket
52
Step 3. Installing the Cover Kit
53
Installing the Covers
53
View of Rear Door Lower Tabs
54
Installing the Rear Door
54
Removing the CD-ROM Blank
55
Removing the Blank for the UPS Switch Panel
56
Placement of Bezel
57
Step 4. Installing the Slanted I/O Tray (Wide Units Only)
58
Installing Two Mounting Tabs into the Slanted I/O Tray
58
Step 5. Routing the Cables
59
Step 6. Attaching Your I/O Devices
59
Routing the Cables through the Slanted I/O Tray
59
Step 7. Installing the Fillers on a Slanted I/O Tray
60
Mounting Locations for the Fillers
60
Installing the Display Filler
61
Installing the Keyboard Filler
61
Installing the Keyboard-Replacement Filler
62
Location of Installed Fillers
62
Step 8. Connecting the Power
63
Step 9. Running the BIOS Configuration Utility
64
Chapter 3. Installing Internal Options
65
Cover Removal Procedures
65
Removing the Front Bezel
66
Opening the Hinged Rear Door
67
Removing the Top Cover
68
Top Plate Removal
69
Top Plate Screws
69
Installing a Feature Card
70
Installing Feature Cards
70
Installing Memory Modules
71
Replacing the Memory Modules
71
Chapter 4. Installing External Options
73
Before You Start
73
To Install the Surepos 700
73
Attaching the Cables to the System Unit
73
Securing IBM USB POS Keyboard Cables
73
Securing the Cable Using Cable Ties
74
Pictorial Steps to Attach the Cable with Clips and Brackets
74
Installing the Cash Drawer and the System Unit
75
Securing the Cable with Cable Ties
75
Place the System Unit on the Cash Drawer
76
Non-IBM Cash Drawers: Setting the Jumper for the Correct Voltage
77
Removing and Replacing the Cash Drawer Coin-Roll Cutter (Compact Cash Drawer Only)
77
Install Coin-Roll Cutter
78
Installing I/O Trays
79
Installing an I/O Tray on the System Unit
79
Installing the Slanted I/O Tray
79
Installing a Slanted I/O Tray on the Full-Size Cash Drawer
80
Installing the Fillers
80
Installing the Tape-Holder Kit
80
Installing Two Mounting Tabs into the Slanted I/O Tray
80
Removing the Tape-Holder Latch
81
Snapping the Tape-Holder into Place
81
Installing the Printer
82
Install the Printer
82
Installing the 40-Character LCD
83
Assemble the Post
83
Slide Display into Holder
83
Plug Cable into Display Unit
84
Assembling the Display
84
Attachment Points for the Display Post
85
Installing the 40-Character VFD
86
Assemble the Post
86
Routing the Cable
86
Placement of the Display on the Arm
87
Installing the Character/Graphics Display
88
Installing the Display Post with a Snap
88
Connecting the Character/Graphics Display Post
88
Routing the Character/Graphics Display Cable
89
Installing the Character/Graphics Display
89
Placing the Post into the Filler Hole
90
Installing the Display Post with a Base
91
Connecting the Character/Graphics Display Post
91
Placement of the Character/Graphics Display on the Arm
92
Routing the Cable
92
Installing the Guidance Label
93
Attaching an IBM Surepoint Solution
94
IBM Surepoint Solution Display
94
Installing CRT Displays
95
Installing a CRT on a Wedge Mount
95
Installing the Power Cord and Video Cable on a CRT Wedge Mount
95
Installing a CRT in a Slanted I/O Tray
96
Installing a CRT on a Post Mount
97
Attaching the Distributed Pedestal to the Counter
98
Pedestal Mounting Diagram
98
Pedestal Mounting Template
99
Attaching the Pedestal to the Short-Post Mounting Plate
100
Attaching the Short Post Mounting Plate to the Pedestal
100
Attaching the Three Extra Feet to the Cash Drawer
100
Installing the Large CRT Table Post Mount to a Pedestal
101
Attaching the Short CRT Post Mount to the Large CRT Table Post Mount
101
Installing and Removing Lock Inserts
102
Preparing to Install a Lock or a Blank Lock Insert
102
Installing a Lock Insert
102
Aligner Positions
102
Lock Inserts and Accessories
102
Install a Lock Insert
103
Removing a Lock Insert
103
Align the Lug with the Slot in the Lock Cylinder
104
Installing a Blank Lock Insert
104
Remove a Lock Insert
104
Removing a Blank Lock Insert
105
Installing the Keyboard-V and the PLU Keyboard
105
Changing the Keytop Labels
105
Installing the Keytop Labels
105
Installing a Vertical Stand
106
Placing the System Unit on the Vertical Stand
106
Wide Models Only: Installing the Front Service Housing
107
Removing the Bottom Feet
107
Attaching the System and Bezel Latches
107
Attaching the Rear Latch
107
Attaching the Bezel Latch
108
Attaching the Pull-Out Handle
109
Installing the Cable Guide and the Cable Guide Arm Assembly
109
Attaching the Cable Guide
110
Positioning the Cable Guide Arm Assembly
110
Attaching the Cable Guide Arm Assembly
111
Inserting the System Unit into the Service Housing
112
Attaching the I/O Tray
112
Inserting the Unit into the Service Housing
112
Routing the Cables
113
Installing the I/O Tray
113
Extra Cord Length During Routing
114
Cable Assembly Arm with Cables Securely in Place
115
Cable Guide Arm Assembly Latch
116
Installing the Display Stand
117
Attaching the Back Cover
117
Installing the Printer
118
Routing the Cable through the Pedestal
118
Chapter 5. Diagnostics and Configuration Settings
119
Service and Diagnostics
119
Using the BIOS Setup Program
119
Navigation and Menus
119
Saving Settings
120
Boot Device Order
120
Restoring CMOS Default Settings
120
Chapter 6. Operating POS I/O Devices
123
Displays
123
Adjusting the Controls on Video Displays
124
Cash Drawers
124
CRT Displays
124
Controls on 9-In. Monochrome Display
124
Full-Size Cash Drawer
124
Lock Positions
125
Document Storage Area under Cash Drawer
125
Compact Cash Drawer
125
Cash-Drawer Options
126
Compact Cash-Drawer Only: Using the Cash-Drawer Coin-Roll Cutter
126
Cash-Drawer Depth-Adjustment Bar
126
Using the Coin-Roll Cutter
127
Keyboards
128
Manager's Lock
128
Keyboard Types for the Surepos 700
128
Function Keys
129
Keyboard Lights (Status Indicators)
129
Example of S1 and S2 Function Keys
129
Using the USB Keyboard-V
130
Location of Keyboard Status-Indicator Lights
130
Location of Keyboard-V Status Indicators
130
Keyboard Status-Indicator Lights Meanings
130
USB Keyboard-V Volume Control
131
Location of Mode Lock Keys
132
Location of System Function Keys
132
Using the USB PLU Keyboard/Display
133
Status Indicators
133
USB PLU Keyboard/Display Status-Indicators Meanings
133
Settings for DIP Switches SW3 and SW4
134
Location of PLU-Keyboard DIP Switches
134
Location of Volume Control on USB PLU Keyboard/Display
134
Entering Data at Your Terminal
135
Operating Card Readers
135
Cleaning the Card Reader
135
Location of System Function Keys
135
Printers
136
Chapter 7. Testing
137
Preliminary Checklist
137
Problem Isolation
138
Appendix A. Safety Information
139
Appendix B. Notices
145
Electronic Emission Notices
147
Federal Communications Commission (FCC) Statement
147
European Union EMC Directive Conformance Statement
147
Industry Canada Class a Emission Compliance Statement
148
Avis de Conformité Aux Normes D'industrie Canada
148
Germany
148
Australia and New Zealand
148
Chinese Class a Warning Statement
149
Japanese Power Line Harmonics Compliance Statement
149
Japanese Voluntary Control Council for Interference (VCCI) Statement
149
Korean Communications Statement
149
Taiwanese Class a Warning Statement
150
Taiwan Contact Information
150
Cable Ferrite Requirement
150
Electrostatic Discharge (ESD)
150
Product Recycling and Disposal
151
Battery Return Program
152
For Taiwan
152
For the European Union
152
For California
153
Flat Panel Displays
153
Monitors
153
Trademarks
153
Appendix C. Intel Software License Agreement (Final, Single User)
155
Important - Read before Copying, Installing or Using
155
Copyright License
155
Ownership of Software and Copyrights
155
Limited Media Warranty
155
Exclusion of Other Warranties
155
Limitation of Liability
156
Termination of this Agreement
156
Applicable Laws
156
Government Restricted Rights
156
Index
157
Other manuals for IBM 4800-741
Hardware Service Guide
144 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the IBM 4800-741 and is the answer not in the manual?
Ask a question
IBM 4800-741 Specifications
General
Brand
IBM
Model
4800-741
Category
Cash Register
Language
English
Related product manuals
IBM 4840-563
81 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
