Step 7. Installing the fillers on a slanted I/O tray
Notes:
1. Ensure that the side of each filler overlaps the tab on the side of the I/O tray.
2. If you are using an IBM 4610 SureMark printer with magnetic ink character
recognition (MICR), install it on the right side. This arrangement minimizes the
effect of magnetic interference from the CRT on the MICR in the printer.
Figure 32 through Figure 35 on page 42 shows the locations of the fillers and the
method for installing them. Insert the tab in the slot and push the filler toward the
tab until it snaps into place.
A Credit card holder
B Display
C Keyboard
D Keyboard replacement
Note:
The dashed lines indicate possible locations for mounting each filler panel.
A
B
C
D

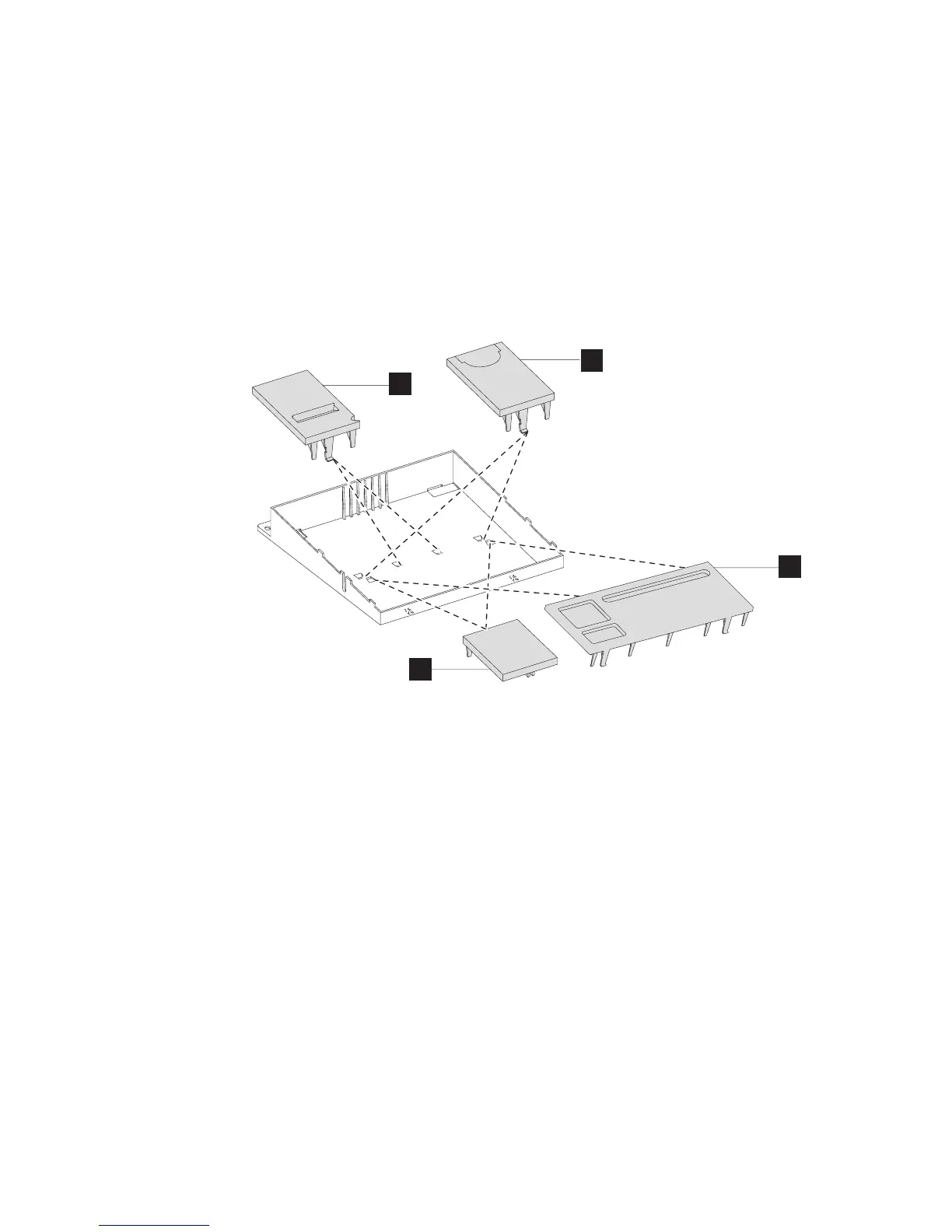

Figure 32. Mounting locations for the fillers
