Routing the cables
For ease of installation, IBM recommends that you route the cables in the following
order:
1. Power cord
2. Ethernet
3. Cash drawer and other peripheral devices (mouse, keyboard, printer)
Follow these instructions to route the cables:
1. Complete the instructions described in “Installing the cable guide and the cable
guide arm assembly” on page 89.
2. Open all of the Velcro strips on the cable guide and the cable guide assembly
arm.
3. For each cable, insert the connector end into the system unit first, then route it
through the cable guide. You can close the Velcro loop around the cord at this
time or later in the cable routing process.
A

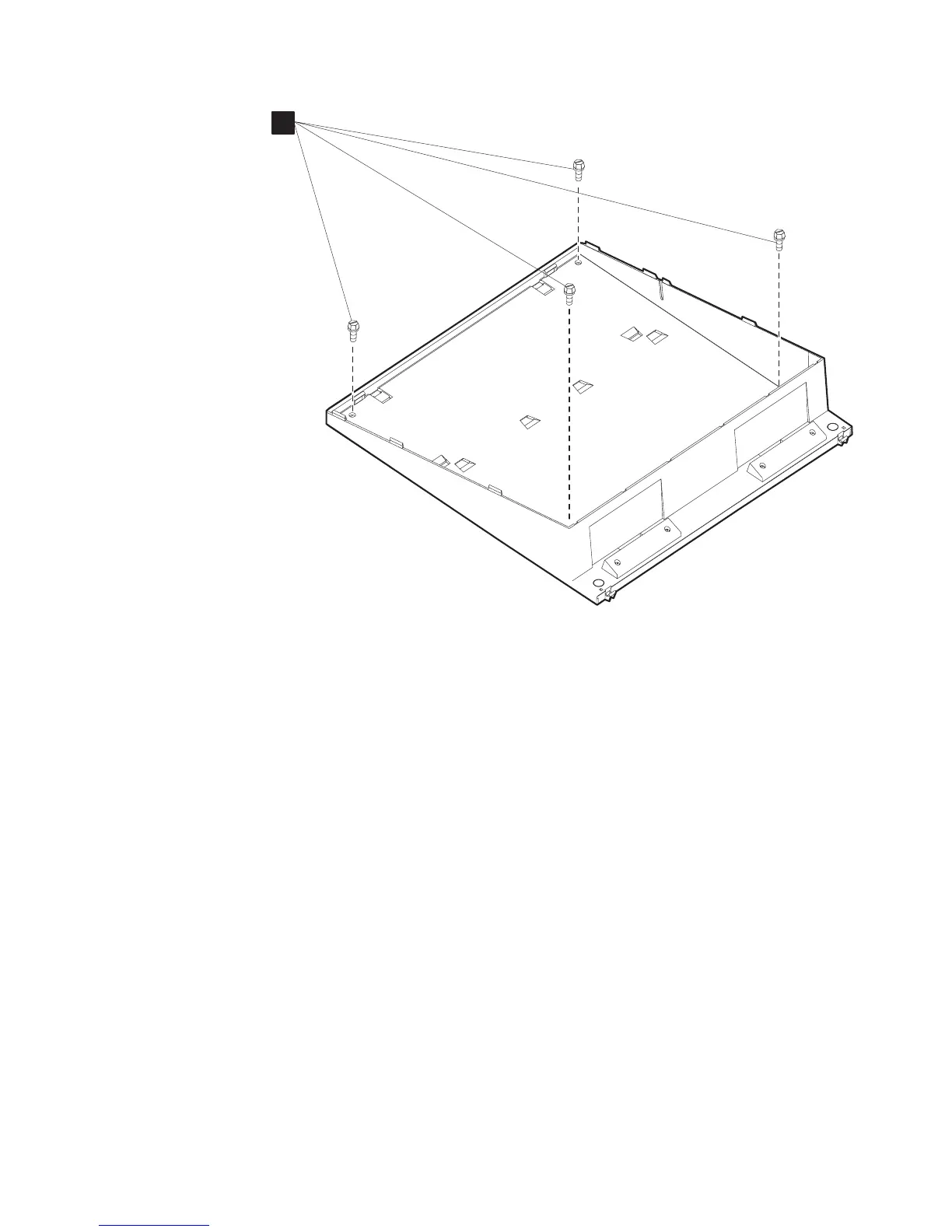

Figure 96. Installing the I/O tray
Updated October 31, 2007
Chapter 4. Installing external options 93
