1. Plug the cable into the system unit. Loosely place the cable cord to either the
left or right side of the connector.
2. As shown in Figure 45, wrap the cable tie around the cable cord and through
the hole located in the base of the system unit. Tighten the cable tie to secure.
Your connection should place no pressure on the cable connector, but instead
secure the cable cord to the system unit.
Installing the cash drawer and the system unit
Notes:
1. These instructions apply to both the compact cash drawer and full-size cash
drawer.
2. You can secure the cash drawer to the top of a counter by using the M6
threaded inserts in the bottom of the cash drawer. Be sure the screws do not
extend past the inserts and contact the drawer,

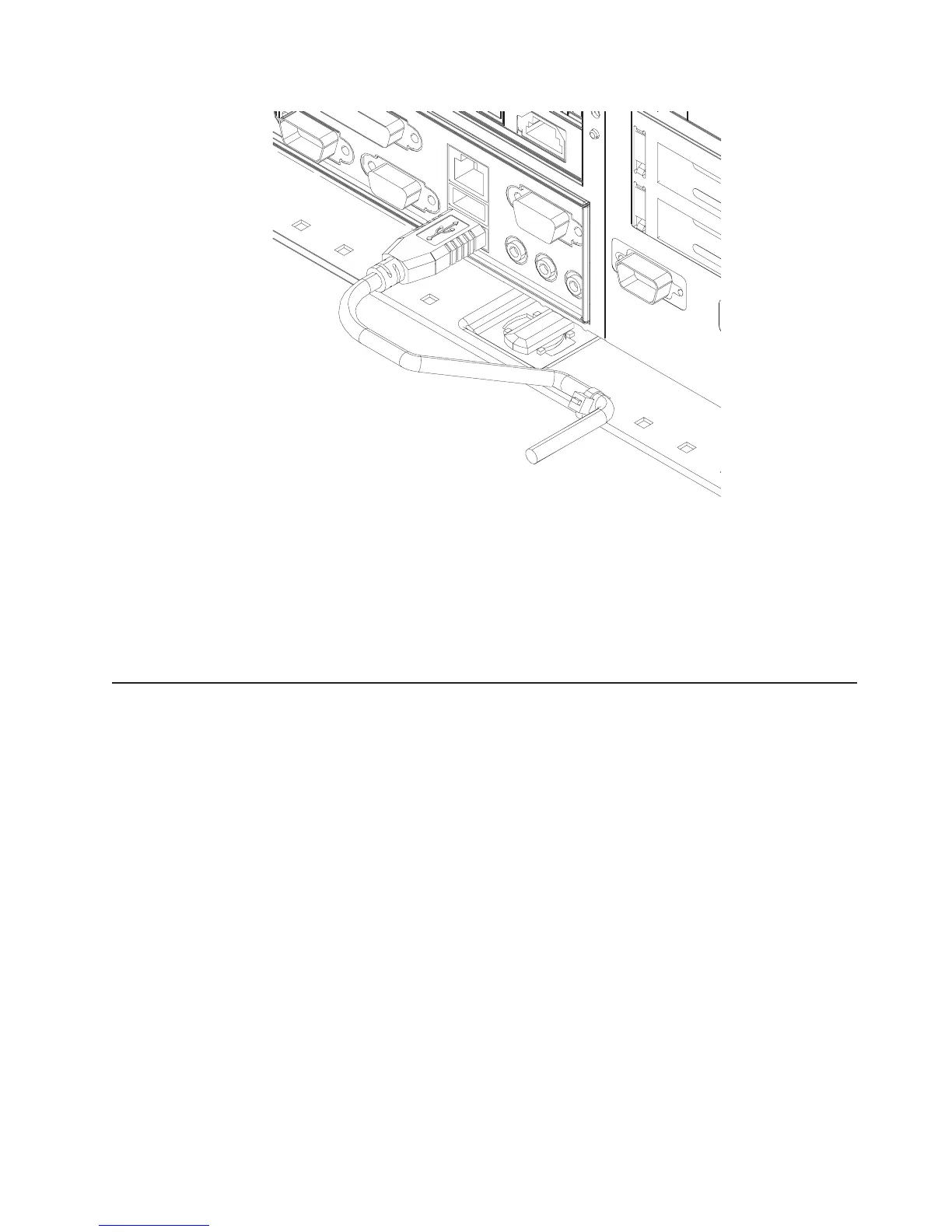

Figure 45. Securing the cable with cable ties
Updated October 31, 2007
Chapter 4. Installing external options 55
