5. Connect the other end of the display cable to any green (12 V) powered-USB
port on the rear of the system unit. You can also connect the end of the display
cable to the number 4 RS-485 port on the rear of the system unit.
Installing the character/graphics display
This section describes how to install a character/graphics display. You install the
display post with either a snap or a base.
Installing the display post with a snap
To install the character/graphics display post with a snap to the POS terminal, follow
these procedures:
1. Confirm that the character/graphics display filler is installed.
2. Connect the character/graphics display A to post B, as shown in Figure 63.
A
B

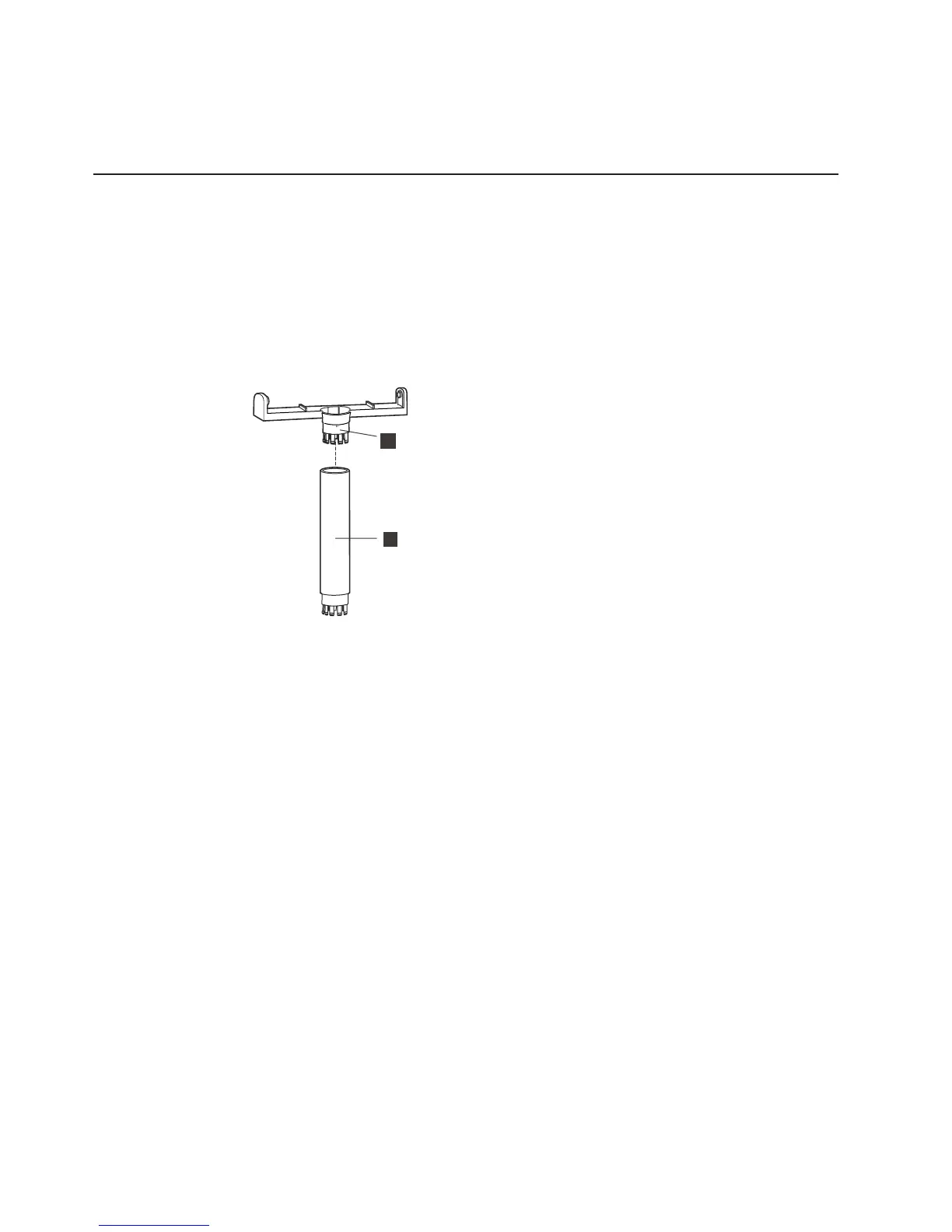

Figure 63. Connecting the character/graphics display post
Updated October 31, 2007
68 SurePOS 700 Series: SurePOS 700-721/741/781, 722/742/782 Planning, Installation, and Operation Guide
