2. See Figure 47. Push in the side buttons A on the rear cover of the cash
drawer to open it, then remove the rear cover D.
3. Connect the cash drawer cable C to the 3A or 3B socket on the rear panel of
the system unit.
4. Connect the other end of the cable to the rear of the cash drawer (socket 3).
5. Connect the AC power cord to the system unit. Do not plug the other end of
the power cord to an outlet yet.
6. Route the power cord down toward the bottom of the cash drawer.
7. Replace the rear cover by aligning the cover tabs B with the pins E and
press inward to install it.
8. Close the cash drawer’s rear cover, which will hide the power cord.
Non-IBM cash drawers: Setting the jumper for the correct voltage
The SurePOS Models 721/741/781 and 722/742/782 are pre-configured from the
factory to work correctly with all IBM cash drawers. Connecting your IBM cash
drawer to port 3A on the system unit activates the auto-sensing circuitry. The
system unit can then detect the difference between IBM 24-V and IBM 38-V cash
drawers.
If you are using a non-IBM drawer, the automatic mode does not work, and damage
to either the cash drawer, system unit, or both is possible. See “Cash drawers” on
page 18 for complete information on manually setting the voltage.
Removing and replacing the cash drawer coin-roll cutter (compact
cash drawer only)
1. Open the cash drawer and pull it completely out.
3
A
E
B
D
C
C
D
AE
B

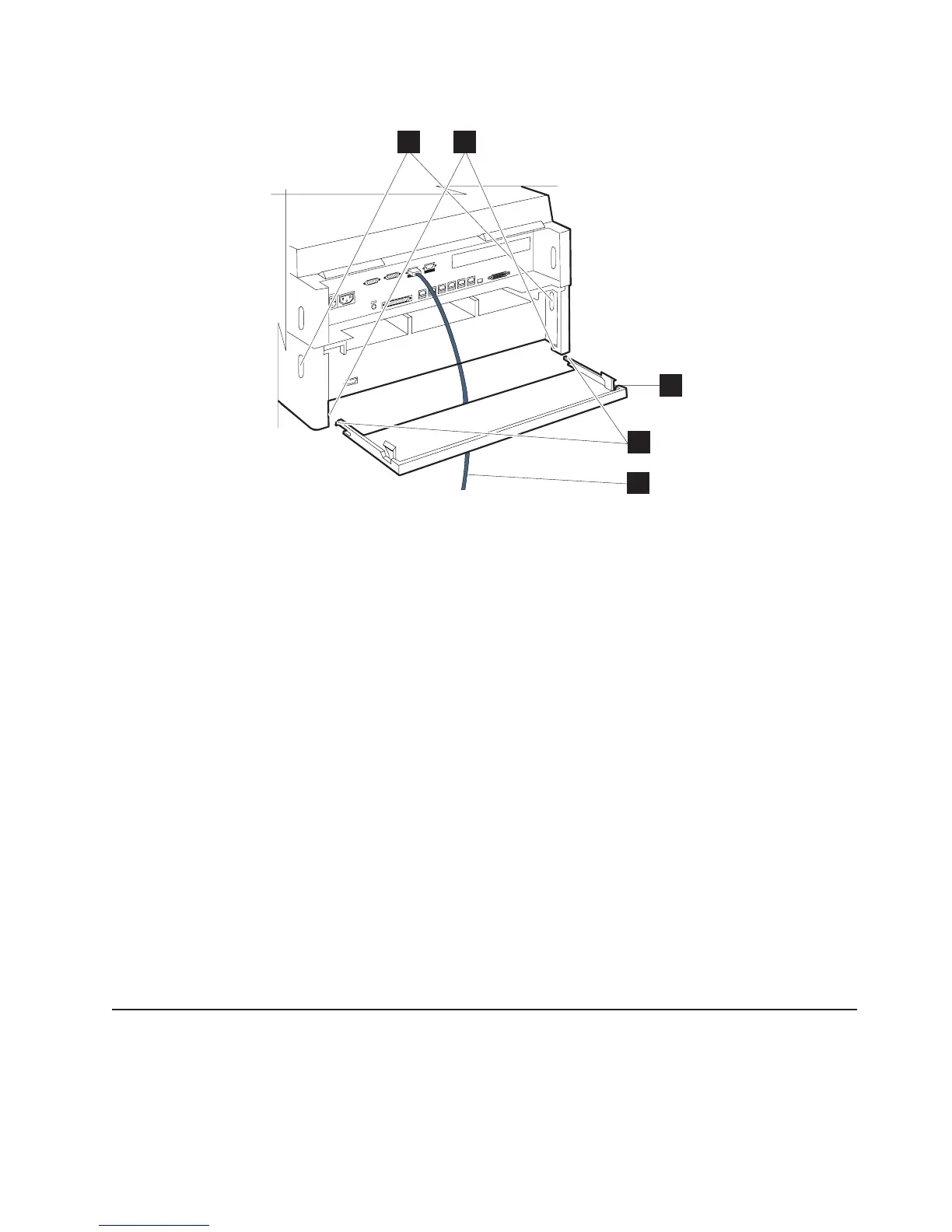

Figure 47. Installing cash drawer cables
Updated October 31, 2007
Chapter 4. Installing external options 57
