Inserting the system unit into the service housing
1. Complete the steps described in “Attaching the pull-out handle” on page 89.
2. On an flat surface, align the unit with the service housing.
3. See Figure 95. Place the unit in the housing and slide it backward until it stops.
The system latch should snap into place.
Attaching the I/O tray
To attach the I/O tray, follow these instructions:
1. Complete the instructions described in “Inserting the system unit into the service
housing.”
2. Position the I/O tray on top of the system unit and insert the four M3x5 screws
(A in Figure 96 on page 93) into the tray.

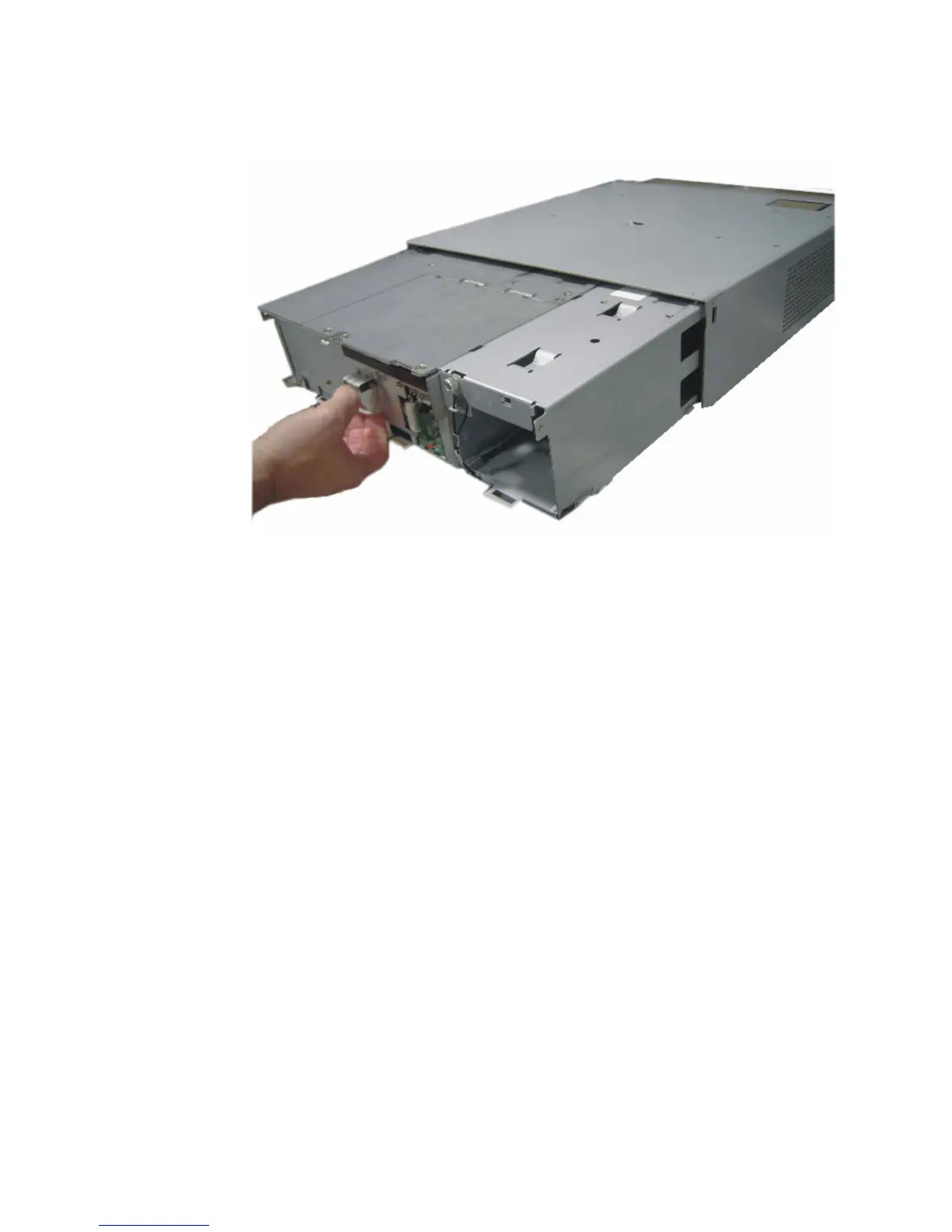

Figure 95. Inserting the unit into the service housing
Updated October 31, 2007
