3. Connect the display cable A in Figure 61 to the display unit. Spread the arms
on the display B slightly, and install the display unit C
4. Route the display cable through the rear of the POS terminal A in Figure 62,
and screw the post to the POS terminal B.
Note: Use long thumbscrews when installing the display on a SurePOS Models
721/741/781 and 722/742/782 without a slanted I/O tray.
B
B
A
C

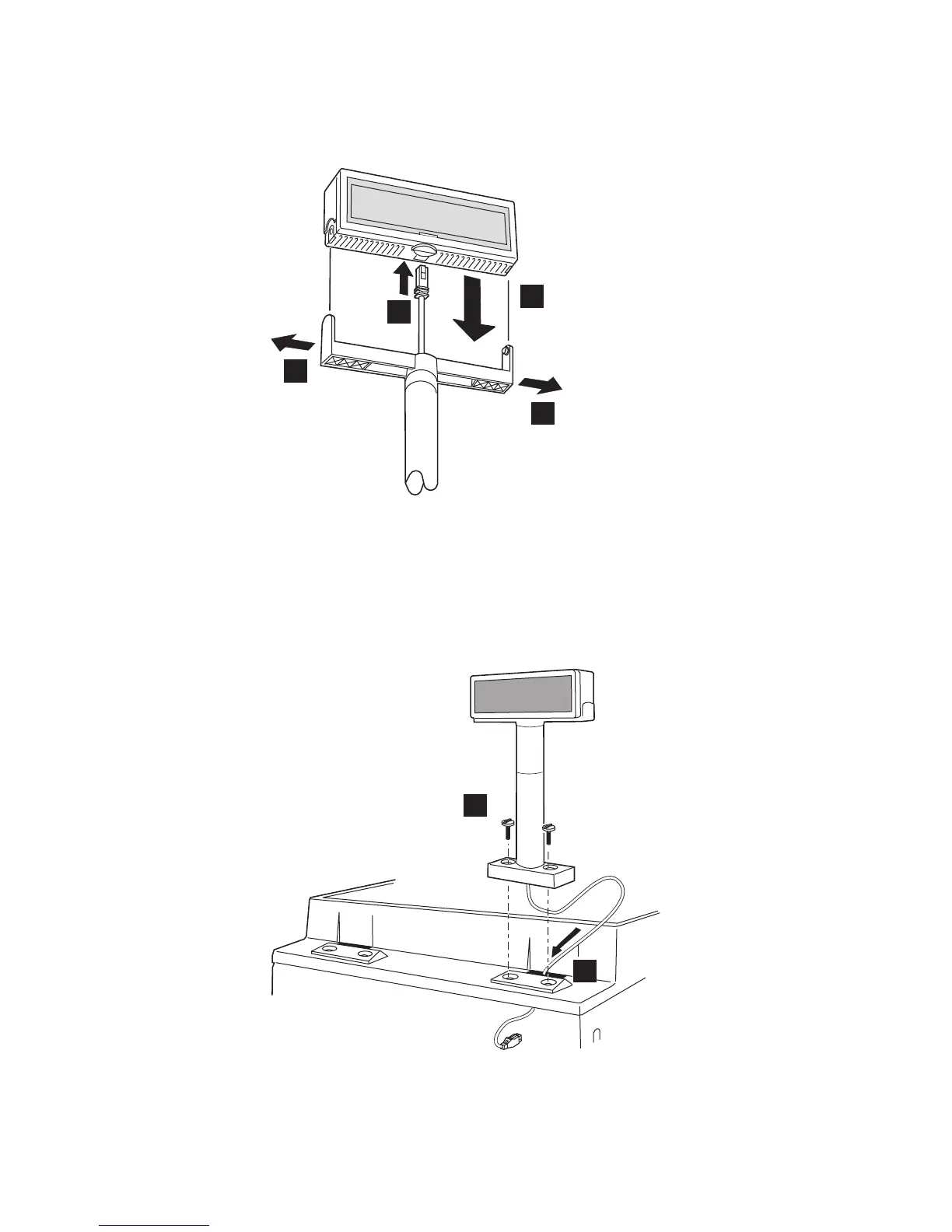

Figure 61. Placement of the display on the arm
A
B
Figure 62. Routing the cable
Updated October 31, 2007
Chapter 4. Installing external options 67
