3. See Figure 40 and locate the metal holding clip, C, located in the rear center
of the top cover. Push this clip downward and push the cover backward a few
inches before lifting upward to remove.
To replace the top cover:
1. Hold the cover in position over the system unit so that the front is aligned with
the line on the metal top and drop the cover onto the machine. Slide the cover
forward to lock into place.
2. Close the hinged rear door by pressing downward on the door. Replace the
bezel by aligning the hooks on the bottom of the bezel with the slots on the
frame and snapping the top into place.
C

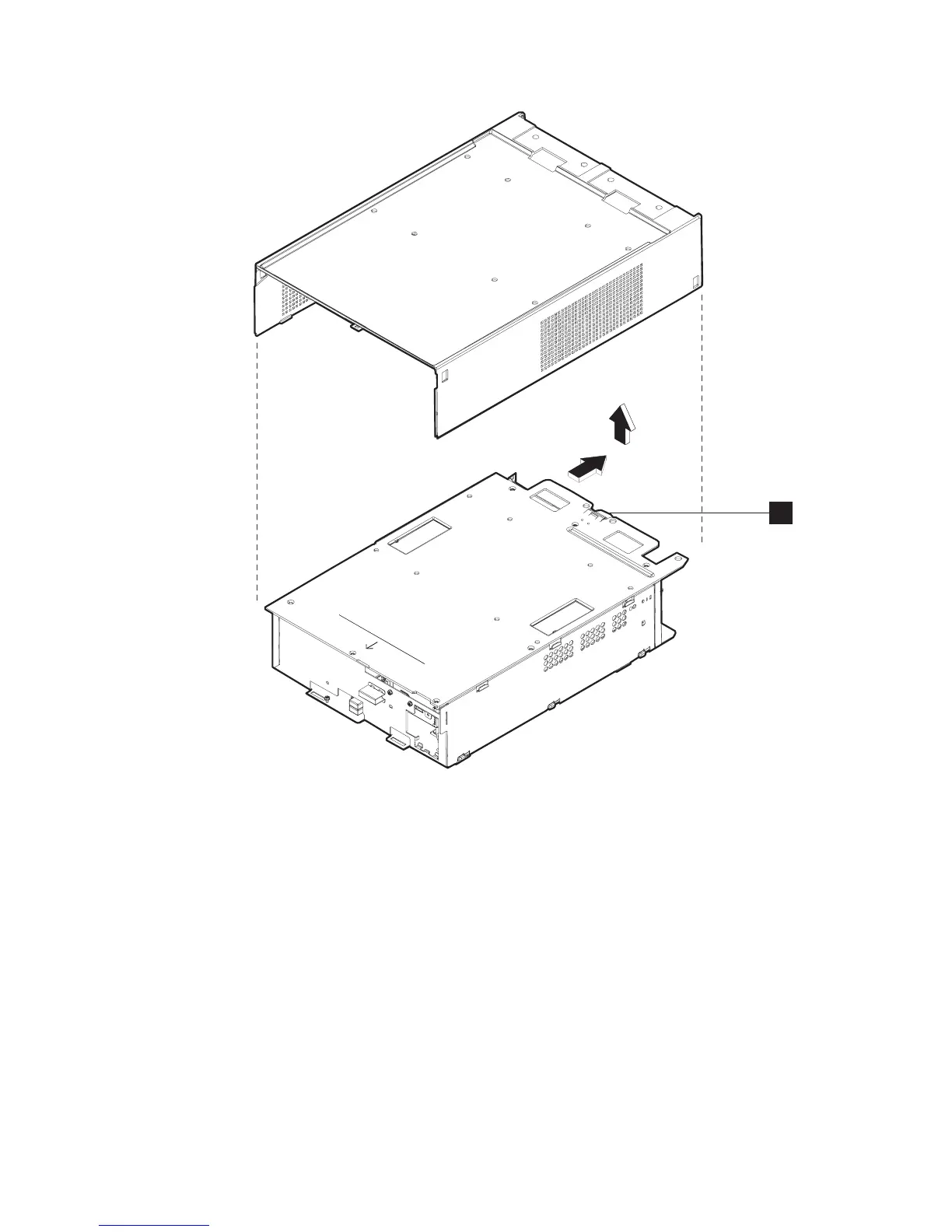

Figure 40. Removing the top cover
Updated October 31, 2007
48 SurePOS 700 Series: SurePOS 700-721/741/781, 722/742/782 Planning, Installation, and Operation Guide
