1. See Figure 44. As shown in picture 1, align the clip bracket with the holes
provided on the rear base of the system unit. Press down and push forward on
the bracket to lock into place.
2. Align the USB cable with the cable clip as shown in picture 2. Holding the clip
and the cable together, rotate the clip clockwise around the cable to connect the
clip to the cable.
3. See picture 3. Slide the USB cable and clip assembly into the bracket.
4. As shown in picture 4, connect the cable to the system unit. Be sure to push the
cable and clip assembly firmly against the edge of the system unit to secure the
connection.
Securing the cable using cable ties
Without a provision to latch or screw a cable in position, you can secure the cable
using cable ties, as follows:
1
3
2
4

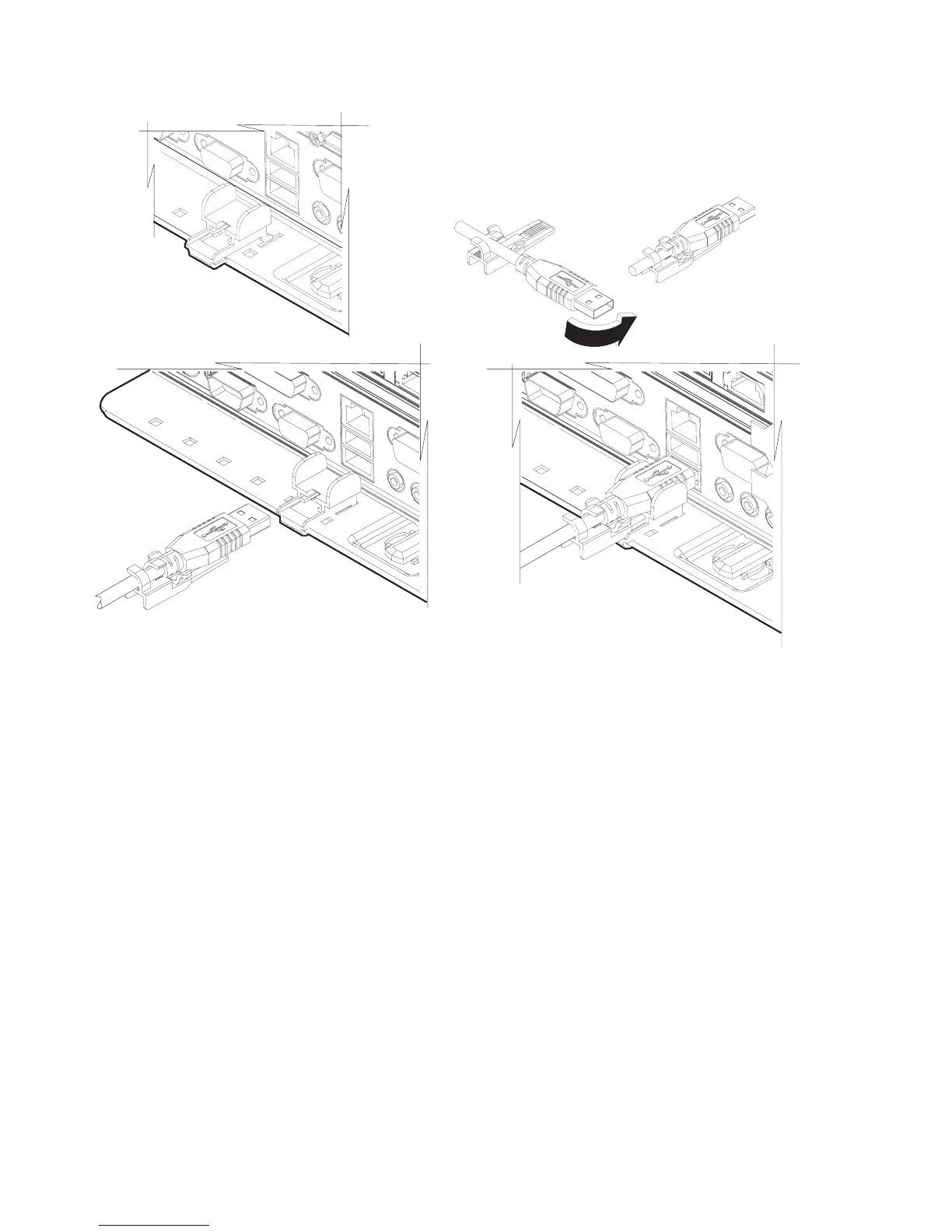

Figure 44. Pictorial steps to attach the cable with clips and brackets
Updated October 31, 2007
54 SurePOS 700 Series: SurePOS 700-721/741/781, 722/742/782 Planning, Installation, and Operation Guide
