Installing memory modules
Attention: Establish personal grounding before touching this unit. For more
information, see “Federal Communications Commission (FCC) statement” on page
127.
1. Note the alignment notches along the bottom of the module where it plugs into
the connector. One notch is located in the center of the gold connectors, and a
second notch is located toward the right side of the module.
2. Touching only the top corners of the memory module, align the connector tabs
and press down firmly. The white tabs (O in Figure 43) on the connector on
the planar board close as the module is inserted. When inserted correctly, the
white tabs are completely closed.
0

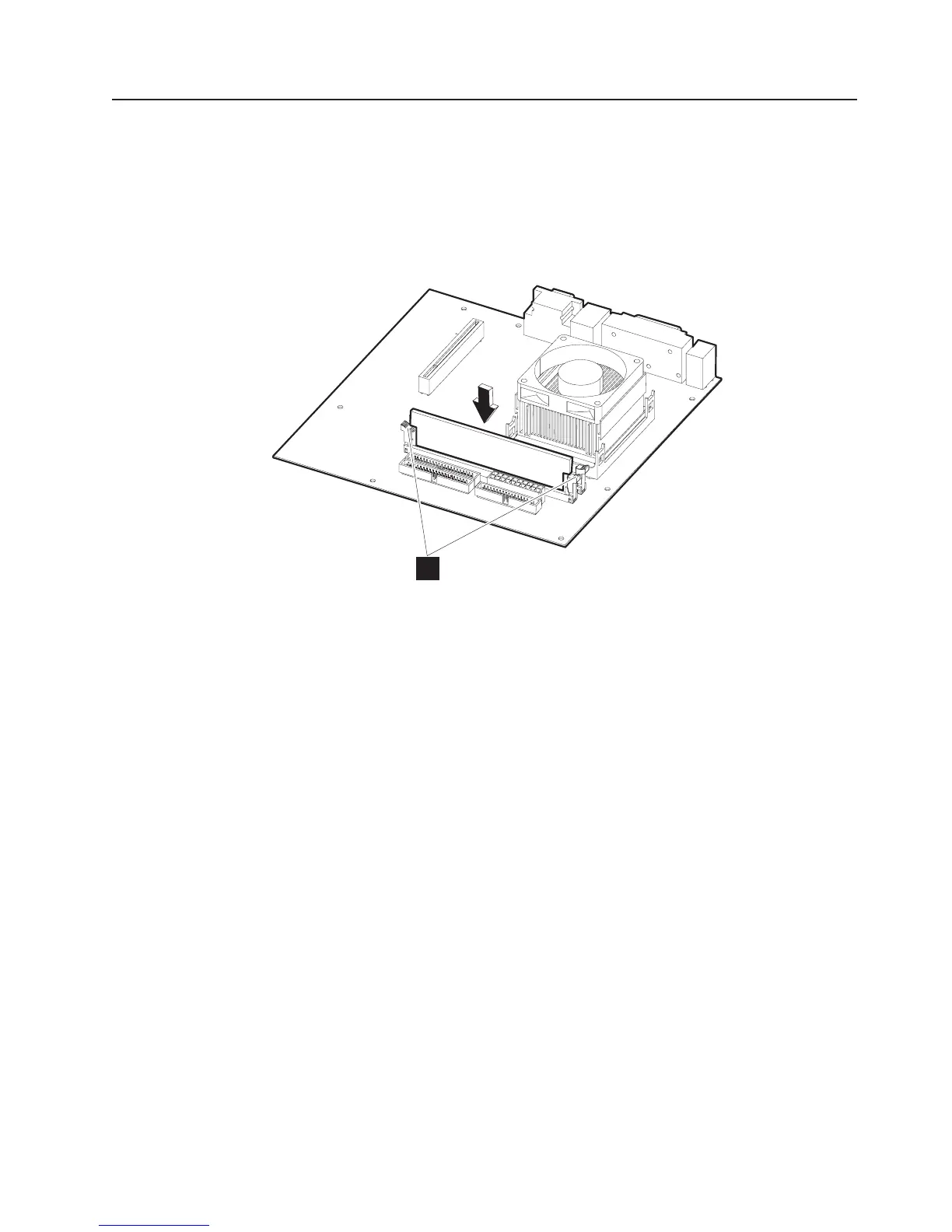

Figure 43. Replacing the memory modules
Updated October 31, 2007
Chapter 3. Installing internal options 51
