2. See Figure 24. Install the rear door by holding it in a horizontal position. Insert
one hinge pin (A) into the receptacle (B) on one side of the system unit.
Press and insert the opposite hinge pin to lock into place.
3. See Figure 25. Press and insert the lower tabs (A in Figure 25) into the slots
(B) to lock in place.
A
A
B

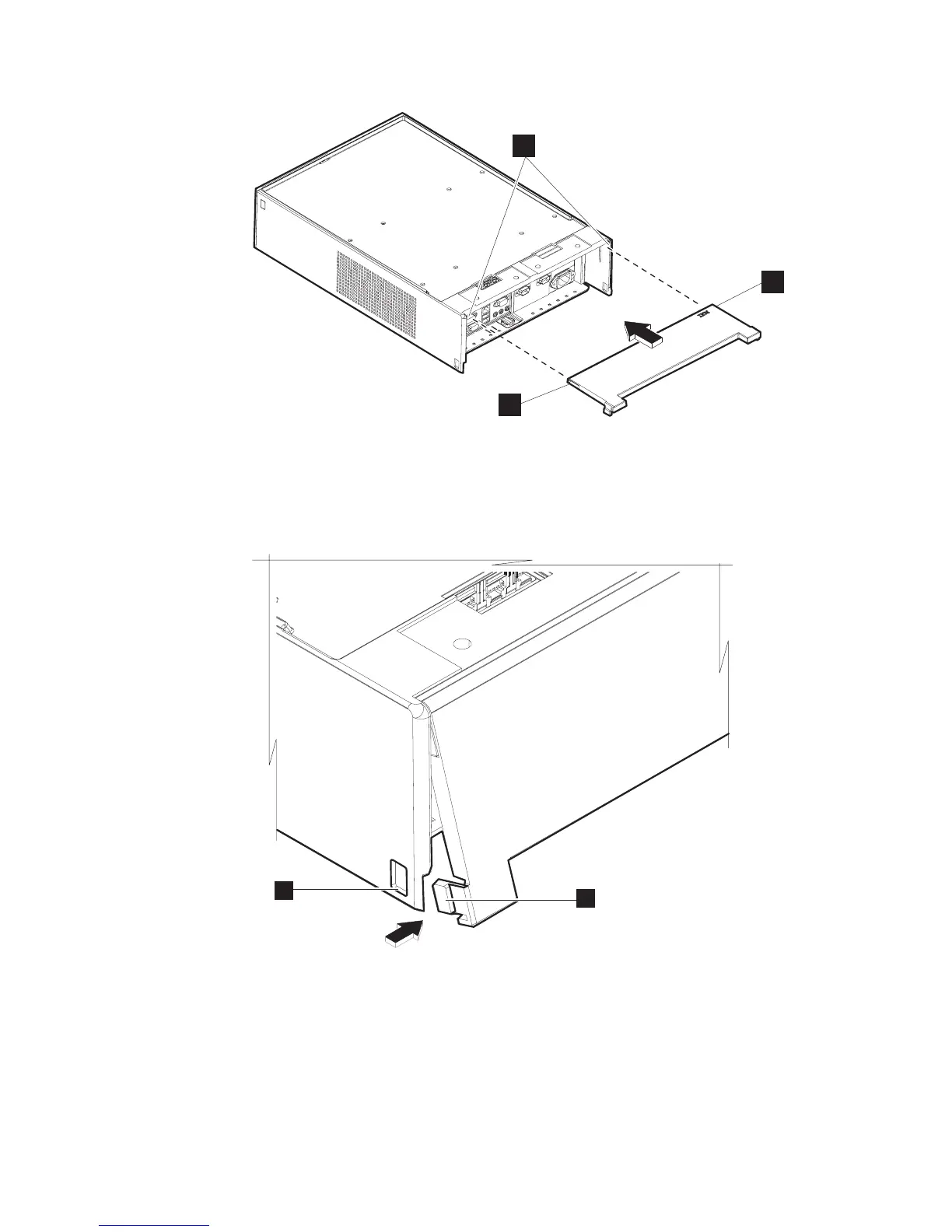

Figure 24. Installing the rear door
A
B
Figure 25. View of rear door lower tabs
Updated October 31, 2007
34 SurePOS 700 Series: SurePOS 700-721/741/781, 722/742/782 Planning, Installation, and Operation Guide
