Installing I/O trays
This section describes how to install an I/O tray on the system unit and on the
full-size cash drawer.
Installing an I/O tray on the system unit
1. Install the two mounting tabs into the slanted I/O tray. From the inside of the I/O
tray, insert the back of the mounting tab first and then push the front part into
the opening.
2. See Figure 49. Turn the I/O tray over. Push on the front of the tab until it locks
into place.
3. Position the I/O tray on top of the system unit and insert the tabs into the slots
in the front of the tray.
4. Attach the I/O tray to the system unit by inserting and tightening the two plastic
thumbscrews (A in Figure 49) into the holes at the back corners of the I/O
tray.
A
A

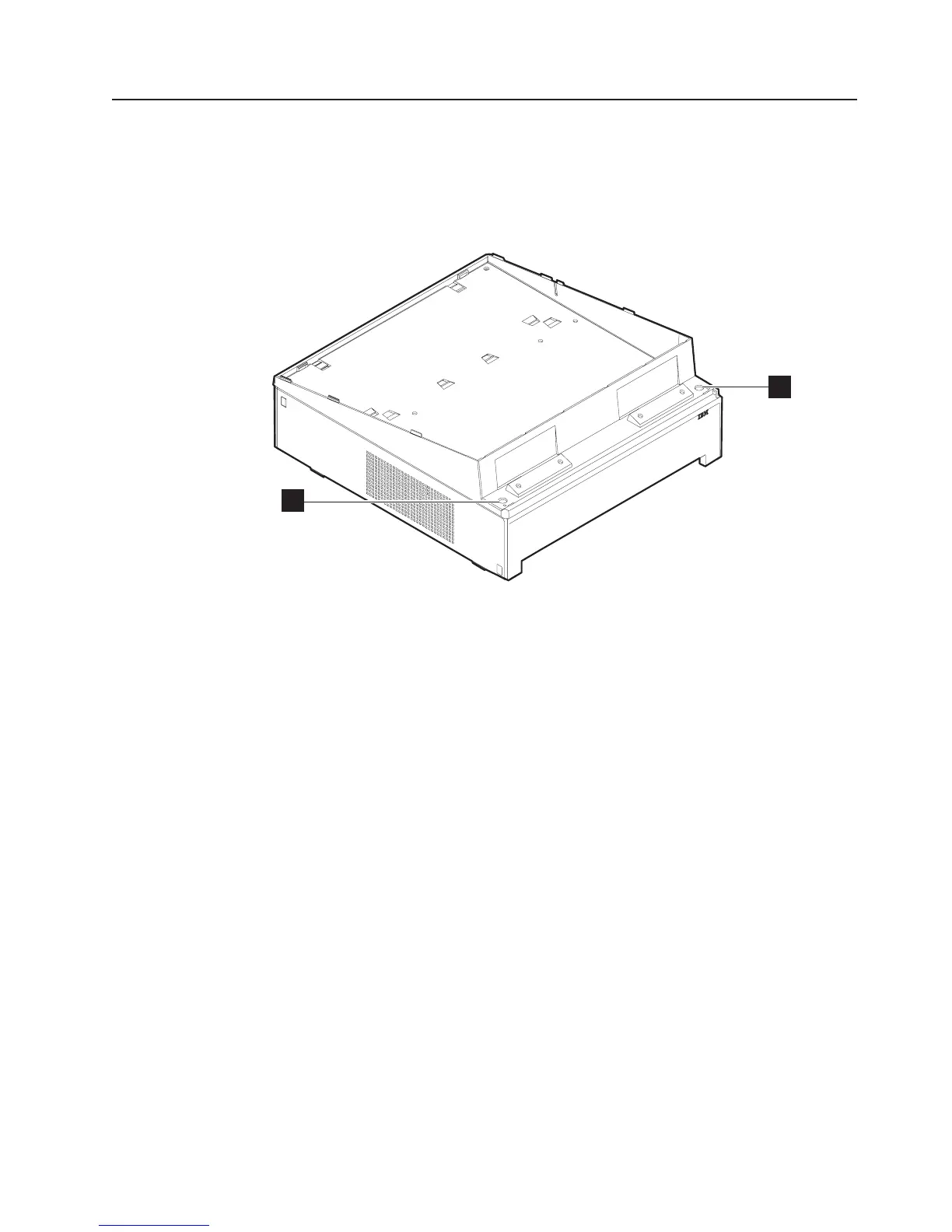

Figure 49. Installing the slanted I/O tray
Updated October 31, 2007
Chapter 4. Installing external options 59
