Installing the 40-character VFD
Use this procedure to install a 40-character VFD.
Note: The yoke for a two-sided display is taller than the yoke for a single-sided
display. The installation procedure is the same for both.

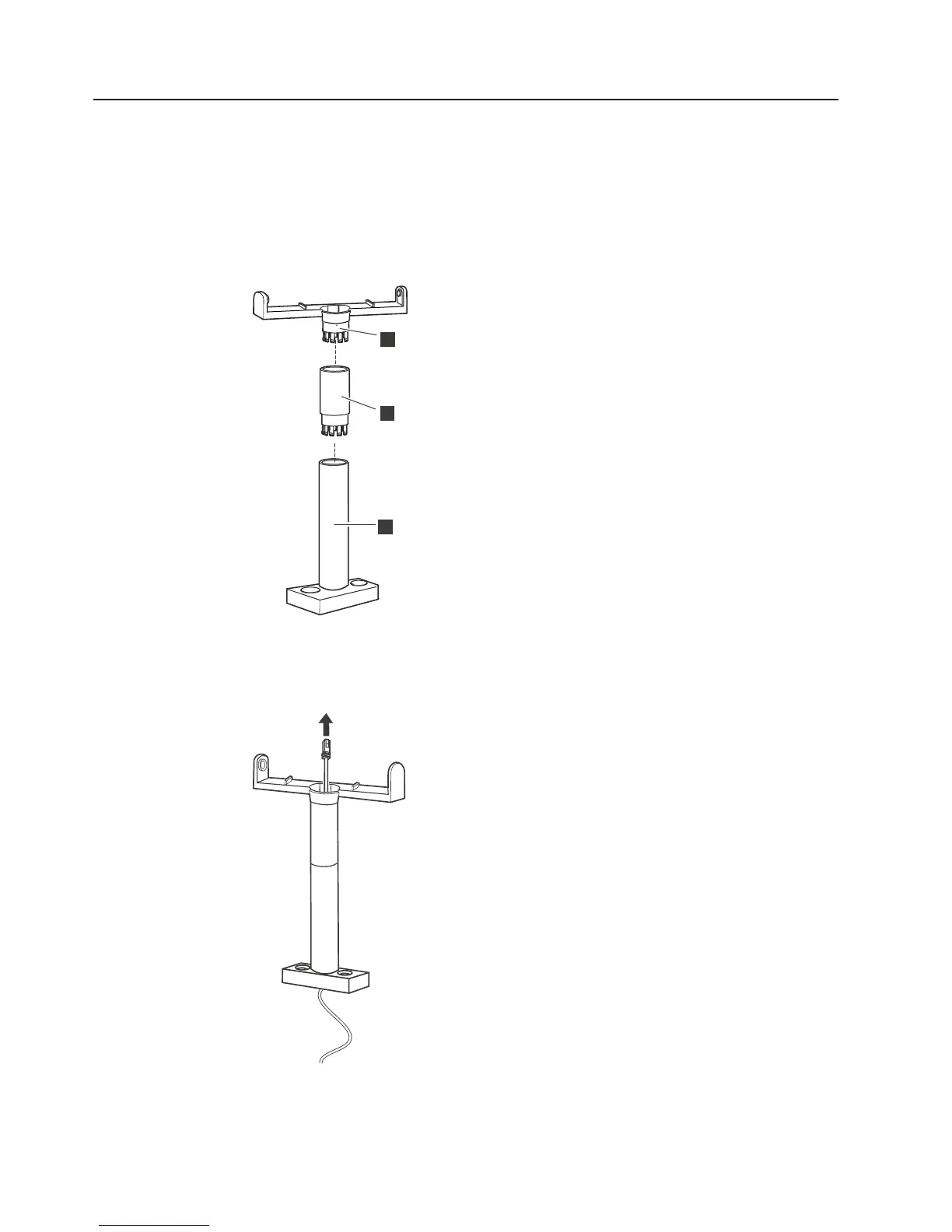

1. Connect the yoke A in Figure 59 to post B. If required, add the extension
post C between A and B.
2. Route the display cable through the post (see Figure 60.)
A
C
B
Figure 59. Assemble the post
Figure 60. Routing the cable
Updated October 31, 2007
66 SurePOS 700 Series: SurePOS 700-721/741/781, 722/742/782 Planning, Installation, and Operation Guide
