Tip for routing the mouse, keyboard, and printer cables
When routing these cables, allow extra length at the connector end by
forming a loop (see Figure 97) before continuing with the cable into the
cable guide. This extra length prevents undue strain on the connector.
4. With the cable guide arm assembly perpendicular to the system unit, continue to
route the cable along the outside of the cable guide arm assembly, closing the
Velcro strips where appropriate to secure.
Note: Do not plug the power cord into the receptacle at this time, or attach the
cables to the devices.

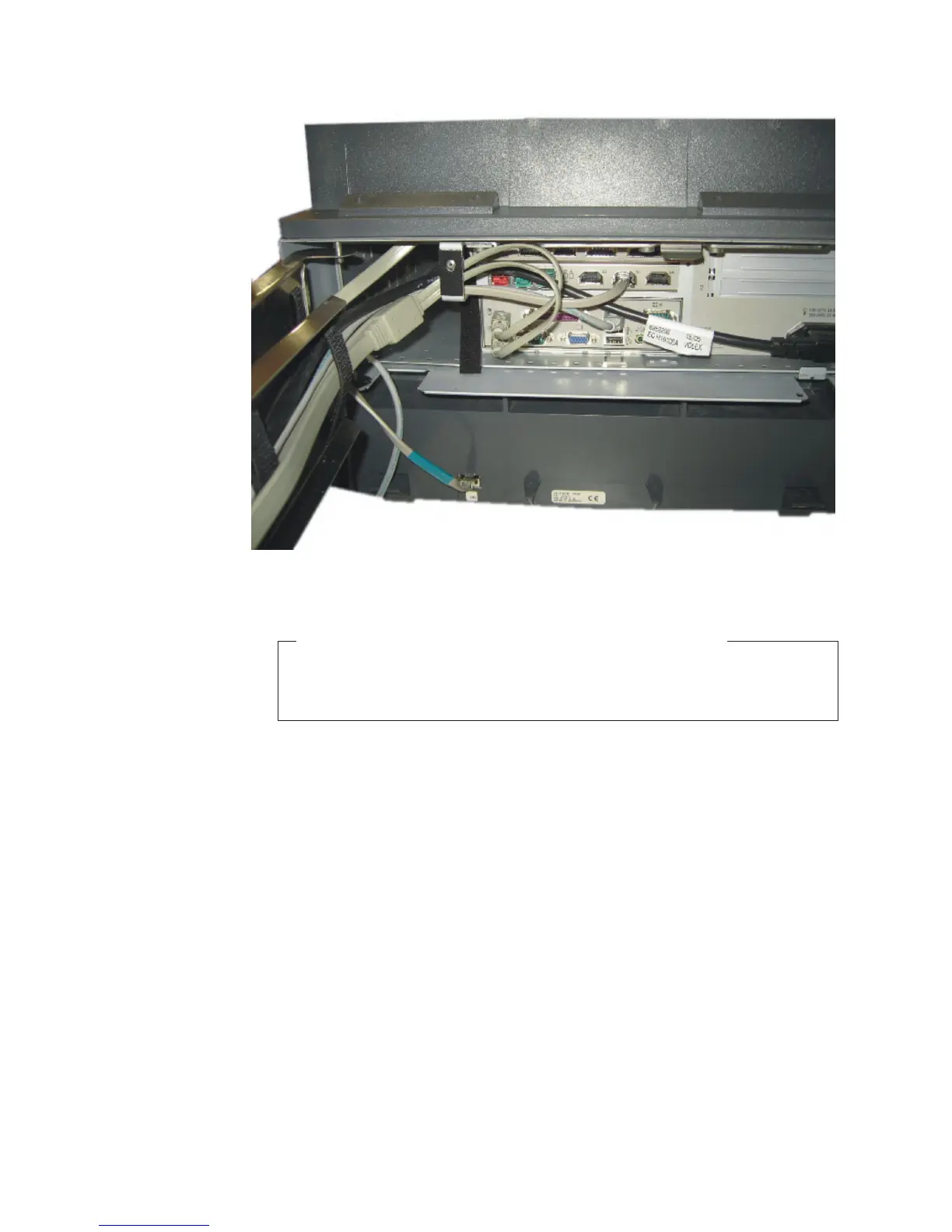

Figure 97. Extra cord length during routing
Updated October 31, 2007
