Step 8. Connecting the power
1. Connect the power cord to the SurePOS 700 and plug into an electrical outlet.
2. If a UPS is attached, power on the UPS (switch G in Figure 37).
A Recessed dump switch
B System power switch
C Headphone jack (Models 741 and 781 only)
D Hard disk drive indicator
E Power indicator
F UPS indicator (only with wide footprint and UPS installed; otherwise
covered)
G UPS switch (only with wide footprint and UPS installed; otherwise
covered)
3.
Verify that the UPS indicator light (LED) is on and operating correctly (refer to
Table 6).
4. Power on the system unit (switch B).
5. Verify that the SurePOS 700 is operating correctly by checking the LEDs on the
front of the unit. See Table 6.
Table 6. Status indicators
Indicator Status
Power (E in Figure 37)
v Steady: power on
v Blinking: standby
v No light: power off
HDD (D)
v Yellow: HDD activity
UPS (G) v Green: using AC power
v Slowly blinking: power from internal battery
v Blinking rapidly: UPS is supplying power and battery is low
B
A
C
DE FG

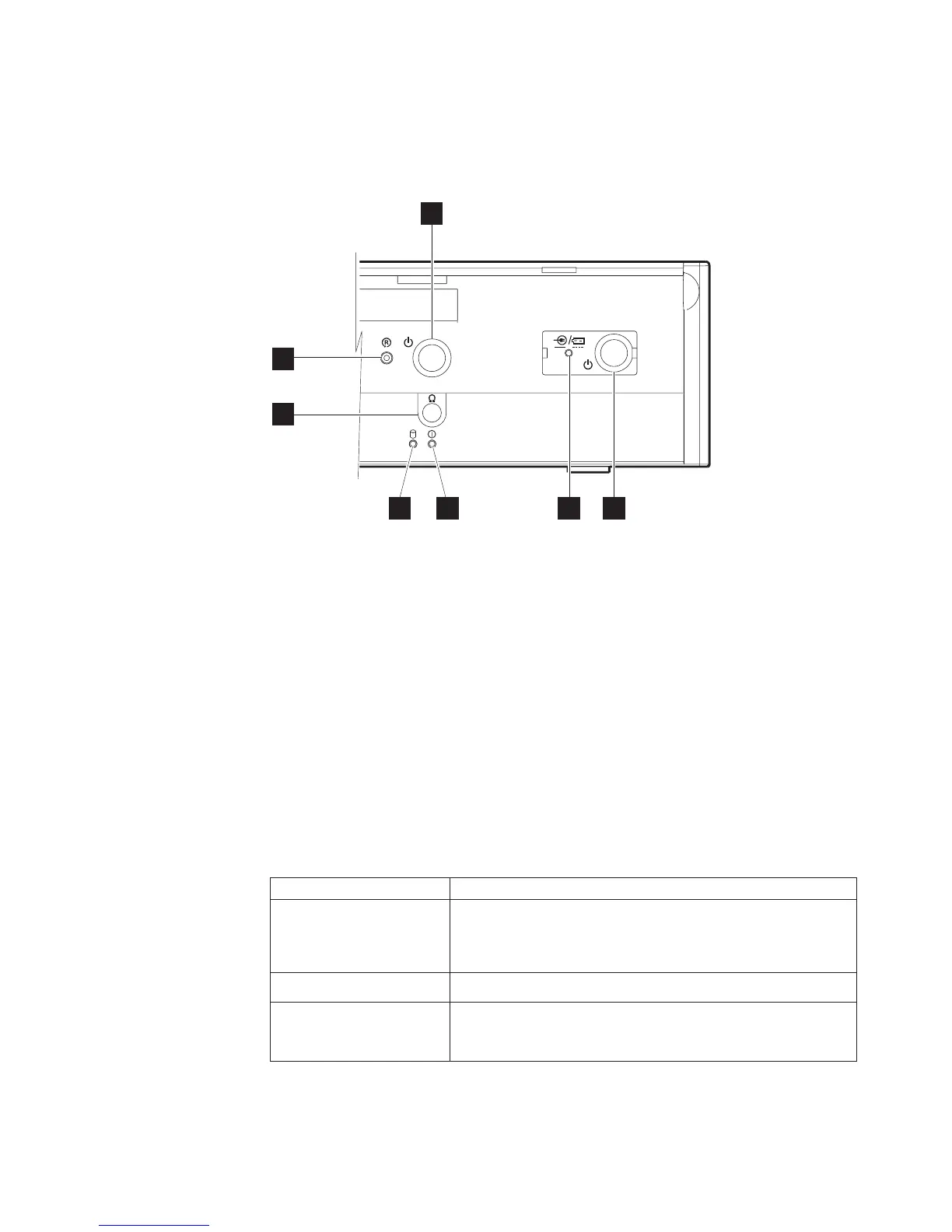

Figure 37. Front panel controls and indicators
Updated October 31, 2007
Chapter 2. Installation and system setup 43
