Hammer Spring Assembly
334

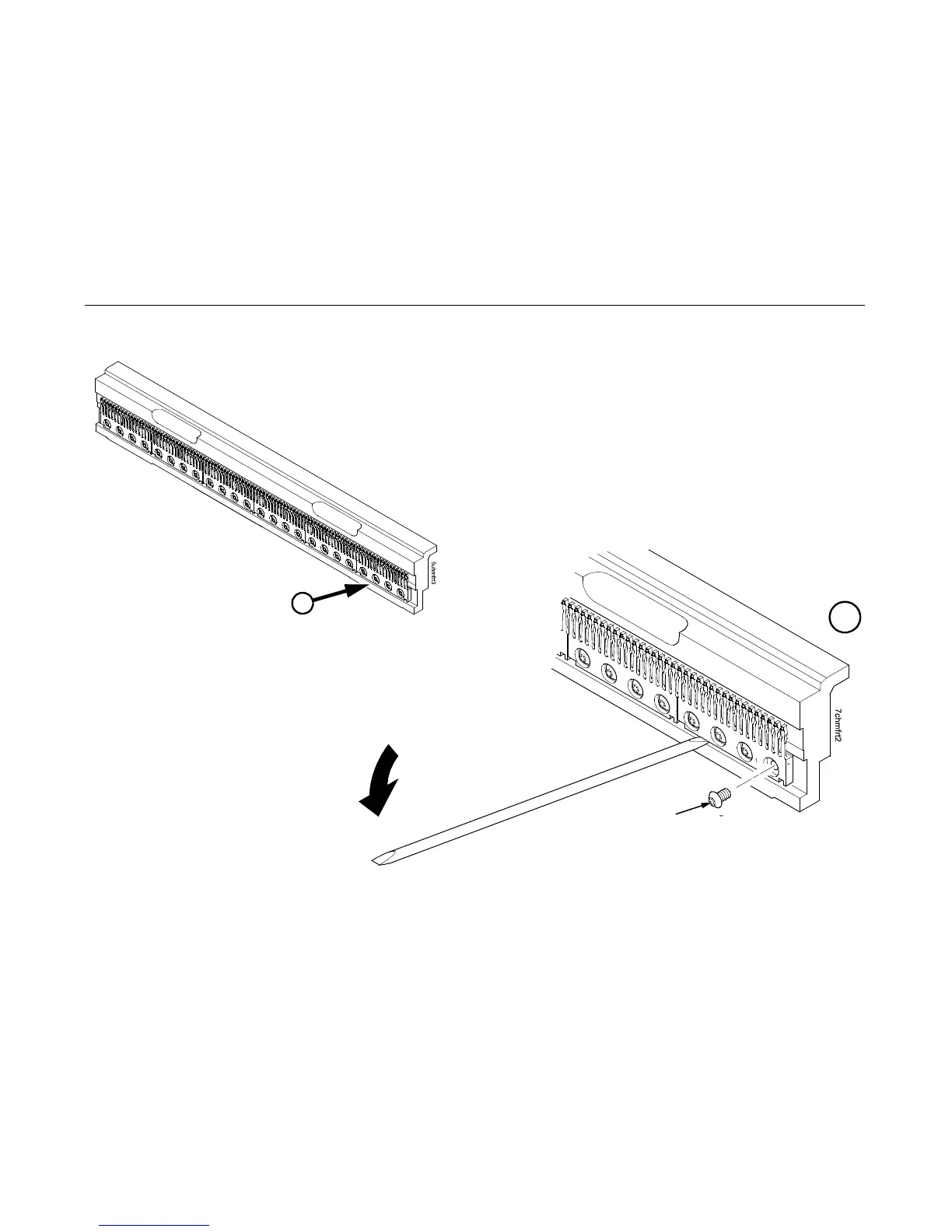

Figure 16. This figure shows how to remove a hammer spring assembly from the hammer bank.
NOTE: The 6500-v15 hammer bank is shown here.
Although the number of hammer springs and
mounting screws varies among printer models,
removal and installation are the same for all
hammer spring assemblies.
Discard old screws.
