Electrical Controls: Figure 5
36

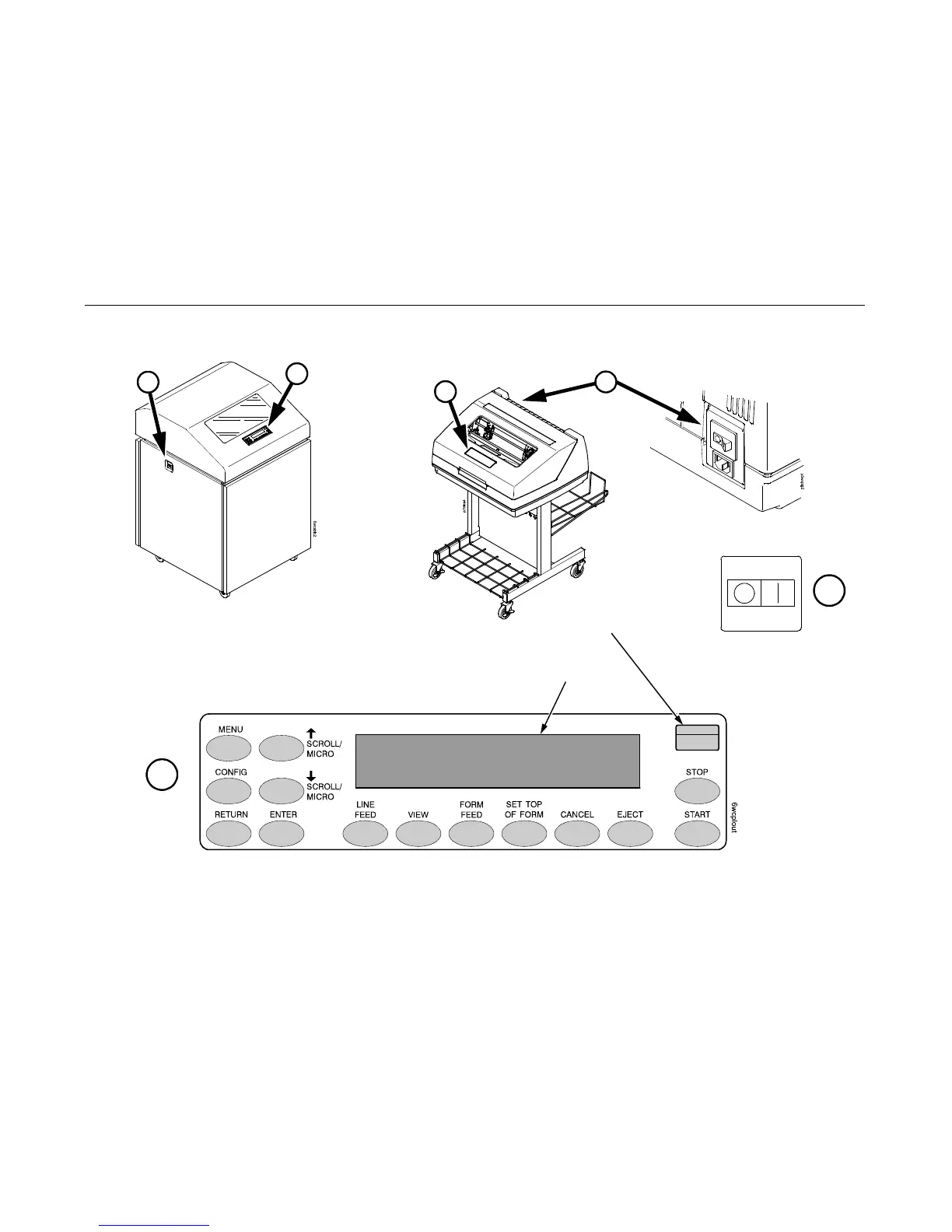

Figure 5. This figure shows the locations of the electrical controls on floor cabinet and pedestal model printers.
B
A
A
LCD
Power Switch
(Off) (On)
Rotated 180 Degrees
A
B
Status Lamp
B
