404

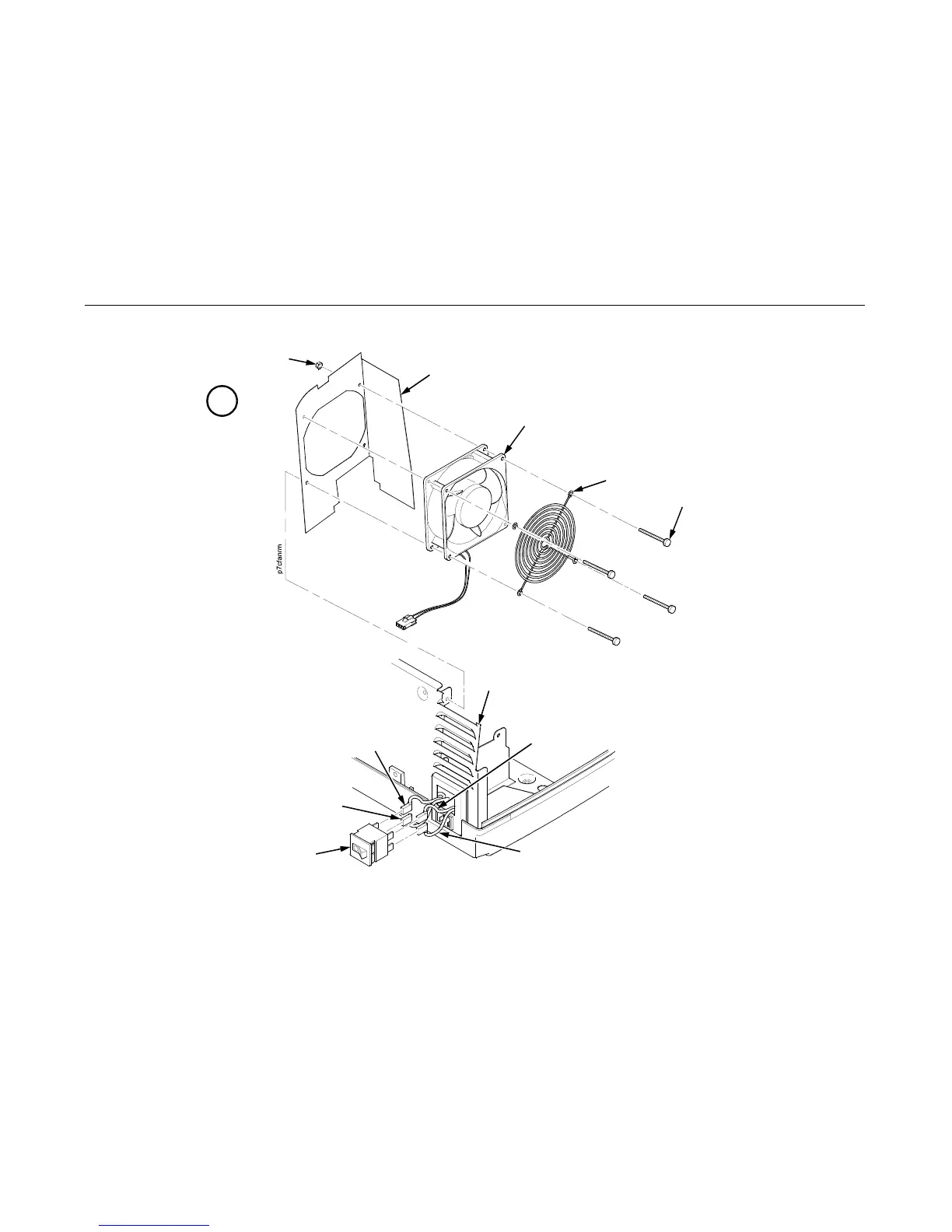

Figure 41. This illustrated parts breakdown shows the card cage fan assembly and circuit breaker on a pedestal model.
From Figure 40, page 402.
Rotated 180 degrees.
5
A
To IEC 320 AC
Power Input
(Connector J301,
White Wire)
To Connector P1
(Black Wire)
To IEC 320 AC Power
Input (Connector J301,
Black Wire)
To Connector P1
(White Wire)
1
2
3
4
6
7
