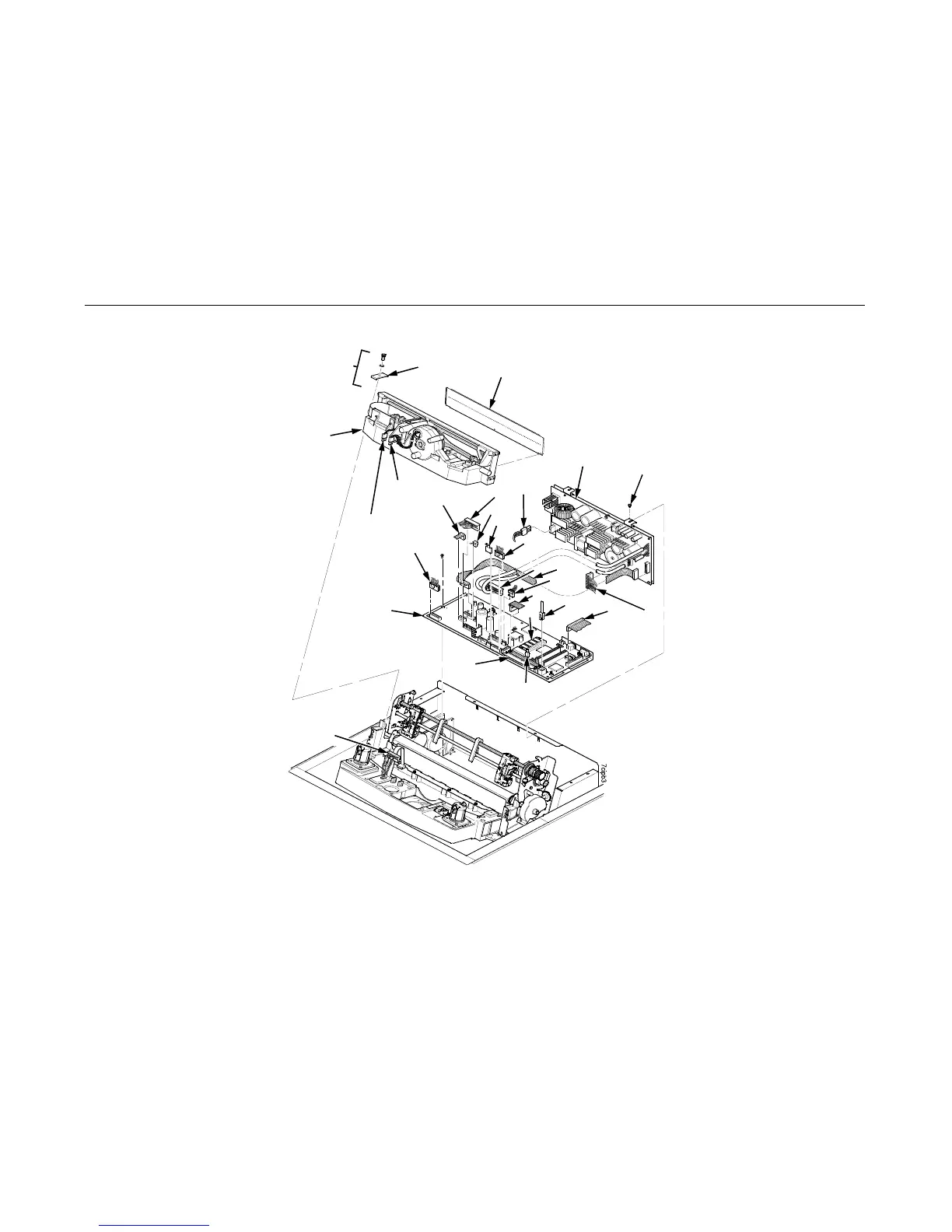

Figure 42. This illustrated parts breakdown shows the shuttle assembly and the circuit boards inside the card cage.
To J02
(Shuttle
Motor)
To J03
(MPU)
To the Terminator
Board on the
Shuttle Frame
Assembly
Two places:
Exploded to show
assembly. Do not
remove the
holddown clamps
and screws.
14
2
7
8
9
4
6
11
16
18
12
13
15
5
3
1
10
17
19
20
21
10
22
