NOTE: It may be easier to wear gloves for the next step.
15. Slide the entire stacker assembly slightly to the right to clear the air exhaust duct. Tilt the vertical rails toward the front of
the printer until they clear the upper frame cross-member. Slide the stacker assembly to the rear and angle it out of the
cabinet, as shown in Figure 69.

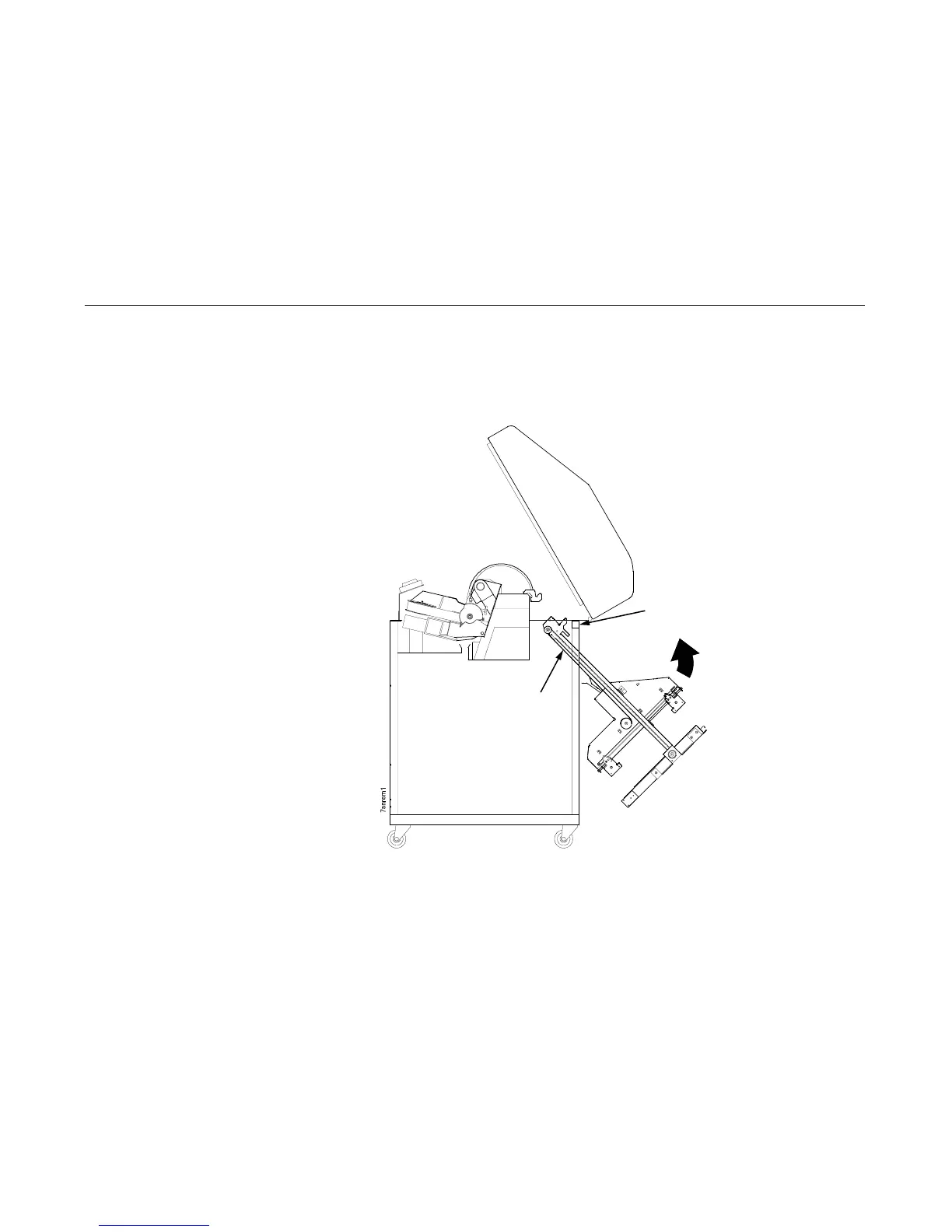

Figure 69. This figure shows how to remove the stacker assembly from the rear of the printer cabinet.
Upper Frame Cross-Member
Vertical Rail
