481
24. Install finger tight the 10-32 x 5/32 inch buttonhead screw and washer securing the left vertical rail to the upper frame
cross-member. (Do not install the right hand screw yet.) (Figure 78.)
25. Install and tighten the two Torx T-10 screws securing the stacker base to the cabinet floor. (Figure 78.)
26. Install and tighten the two Torx T-10 screws that secure the rail bracket to the cabinet floor. (Figure 78.)

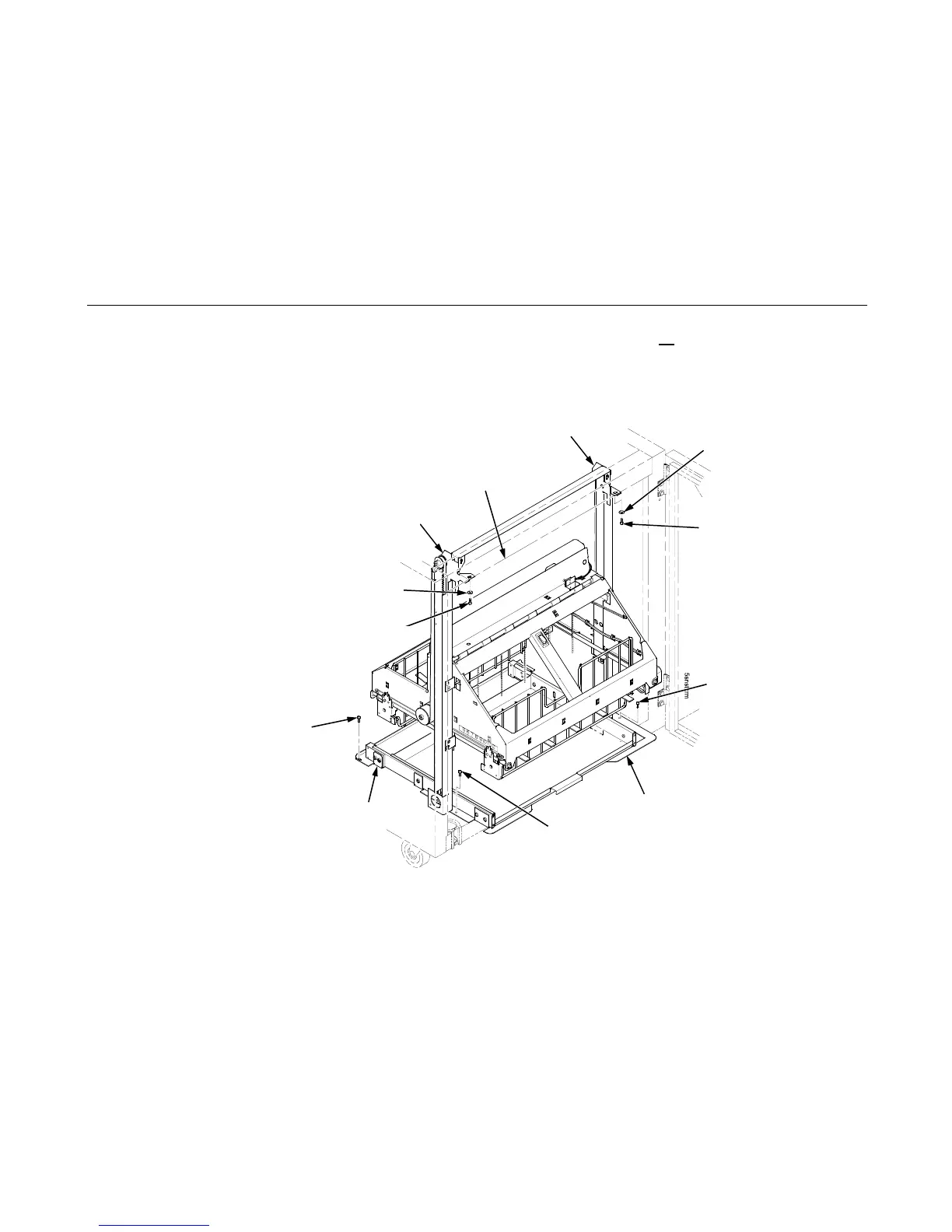

Figure 78. This figure shows which screws to install to secure the stacker assembly in the rear of the cabinet.
Washer
Right Screw, 10-32 x 5/32 inch
Stacker Base
Screw, Torx T-10
Right Vertical Rail
Upper Frame
Cross-Member
Rail Bracket
Screw,
Torx T-10
(2 places)
Screw,
Torx T-10
Washer
Left Screw, 10-32 x 5/32 inch
Left Vertical Rail
