100 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
When you double-click a component, details about it emerge in the lower part of interface.
Depending on the component, one or more tabs show information regarding hardware,
firmware, events, and other information. An example is shown in Figure 3-17.

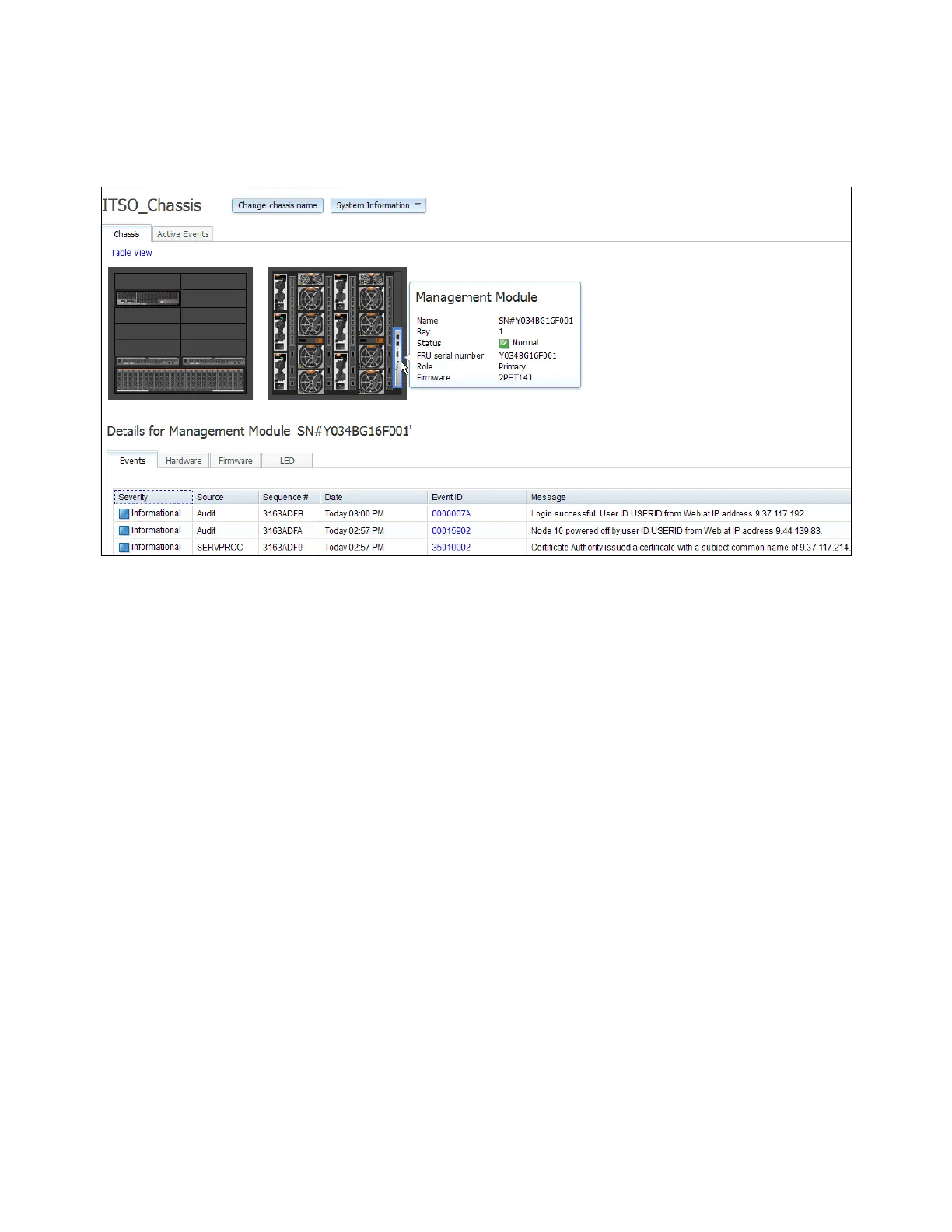

Figure 3-17 CMM - Details of the selected Chassis component
The System Information (blue) button, which is located above the graphical representation of
the Chassis, gives a quick view of the selected component’s information.
