102 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
Selecting a component also opens up an Actions frame, which lists the actions that can be
performed on that particular IBM Flex component, as shown in Figure 3-19.

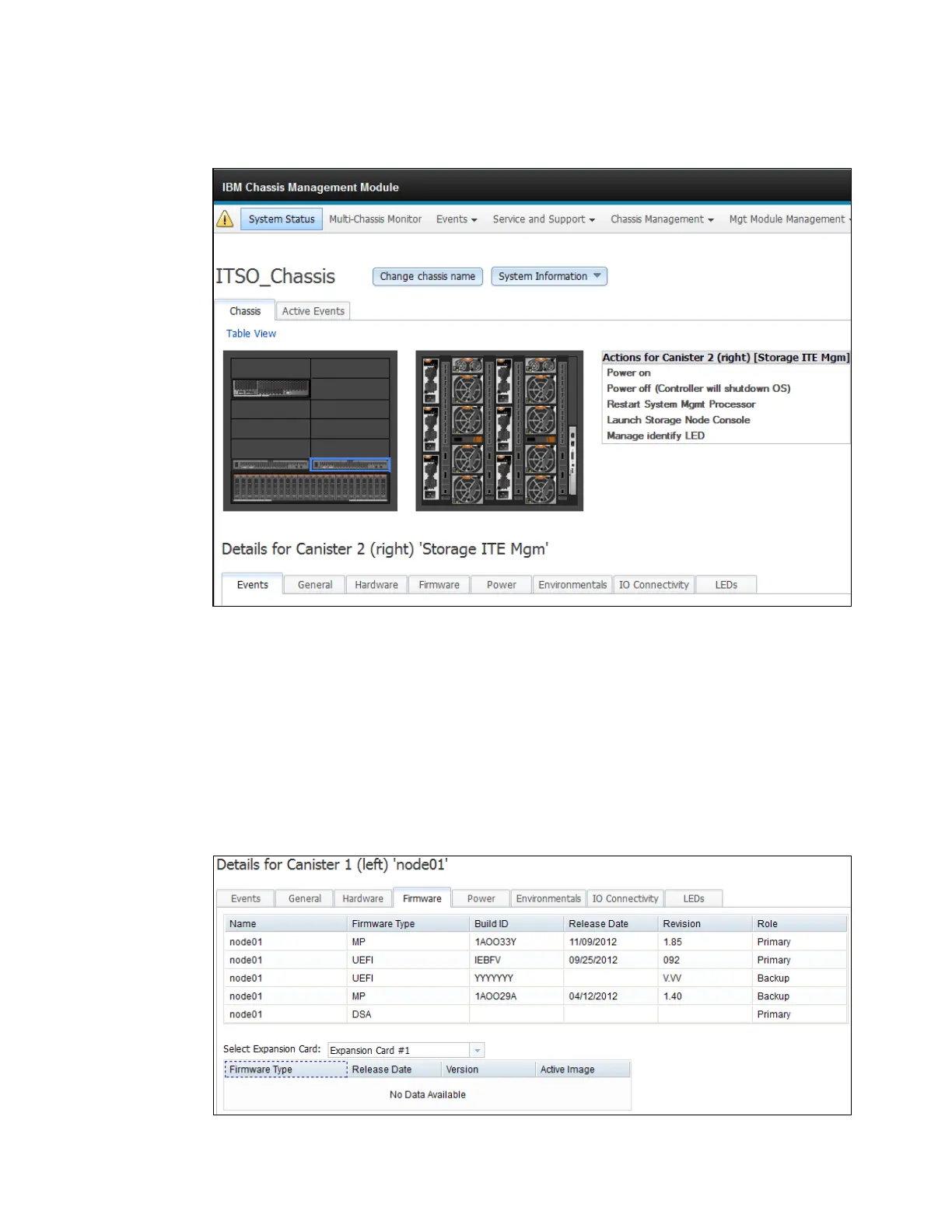

Figure 3-19 CMM - Actions for Chassis Component
In Figure 3-19, an IBM Flex System V7000 Storage Node canister is seen as selected (blue
rectangle around component). On the right-side of the Chassis rear view, there is a list of
Actions for the particular canister, which includes options to power on/off, restart the service
processor, launch the detailed IBM Flex System V7000 Management application, as well as
manage the identity LEDs on the component.
The area of GUI under the graphical representation of the chassis shows details regarding
the selected component. This includes very detailed information laid out in convenient tabular
format. The example in Figure 3-20 shows firmware information including its type, build
information, release date, revision, and role.
Figure 3-20 Details regarding selected chassis component - Firmware tab

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
